Product Name: v wire water well screen, wire wrapped screen pipe, Johnson specialty screen, spiral screen tube, strainer pipe, rod based continous slot wedge wire screen, drilling well screen, reversed rolled slot well screens, screen cylinders, continuous-slot well screen, Well screen, water filter, filteration element
Material: Low carbon galvanized wire(LCG), mild steel wire, stainless steel wire (ss 302, ss304, ss304L, ss316, ss316L, etc)
Diameter: 1-40inch (20-1000mm)
Slot: 0.05mm, 0.08mm, 0.10mm, 0.15mm, ......, 6mm
Length: up to 6meters
End Connection: welded rings(plain beveled ends for butt welding) or threaded male and female coupling(spiral)
Uses: The strainer is a kind of filtered water tubing with the perforation .it can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.
| Material: | Stainless Steel | Grade: | 304L |
|---|---|---|---|
| Slot Size: | 0.75 Mm | Diameter: | 10 " |
| Length: | 5800 Mm | End Connection: | Welded Rings |
| Wrap Wire: | 3.2*6mm | Support Rod: | ø5.0mm Round Wire |
| High Light: | water well sand screen, slotted screen pipe | ||
Stainless Steel 304L Sand Control Screens , Deep Well Wound Screen 35kg / Meter
Sand Control Screens Product Description:
Stainless Steel 304L Deep Well Wound Screen is made of the continuous slot.
It shall be constructed of V-shaped wire continuously wrapped around an array of equally spaced support rods of the same material.
Each junction of wire/rod contact shall be resistance welded.
The wrapped wire is Vee-shaped, and the support rod is Round shape.
Filter Type: from outside to inside.
Sand Control Screens Specification:
| Material | Stainless Steel |
| Grade | 304L |
| O.D | 273 mm |
| Size | 10 " |
| Slot size | 0.75 mm |
| Length | 5.8 m |
| End connection | Welded rings |
| Wire size | 3.2*6.0 mm |
| Support rod | ø5.0mm Round Wire |
| Wire shape | Vee-shaped |
Regular Specifications we make:
(Note: we can make any other sizes as your request, Give me drawing is ok.)
|
SIZE (INCH) |
O.D (MM) |
SLOT (MM) |
LENGTH (M) |
COLLAPSE STRENGTH (BAR) |
TENSILE WEIGHT (TON) |
WRAP WIRE(WIDTH*HEIGHT) (MM) |
RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
Sand Control Screens Characteristic:
1. Deep Well Wound Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water level’s down, thus to save energy consumption.
3. Reduce the abrasion of the pump
Under the same condition, high open area can make the speed of groundwater’s entering into the screen much slower than any other filtration apparatus, which will avoid sand’s entering into screen because of high pressure, thus reduce the abrasion of the pump.
4. Extend the life span of wells
Comparatively, groundwater’s entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells.
Application:
· Water Well
· Waste Water Treatment
. Water supply systems
· Coal & Mine
· Food Processors & Beverage Screens
· Environmental protection
· Refining & Petrochemical
· Architecture & Construction

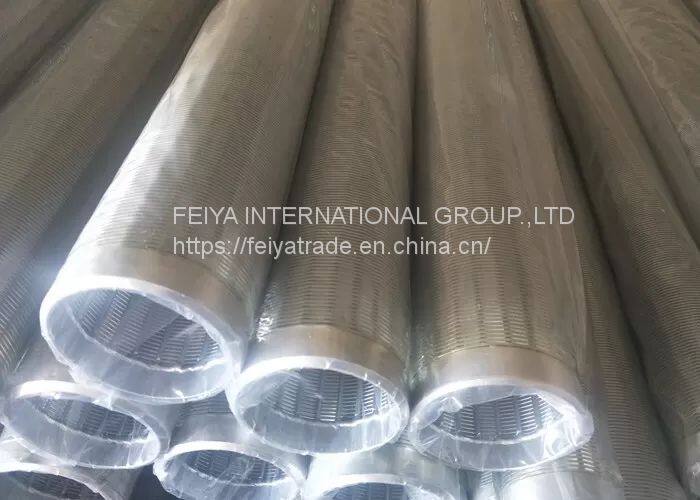

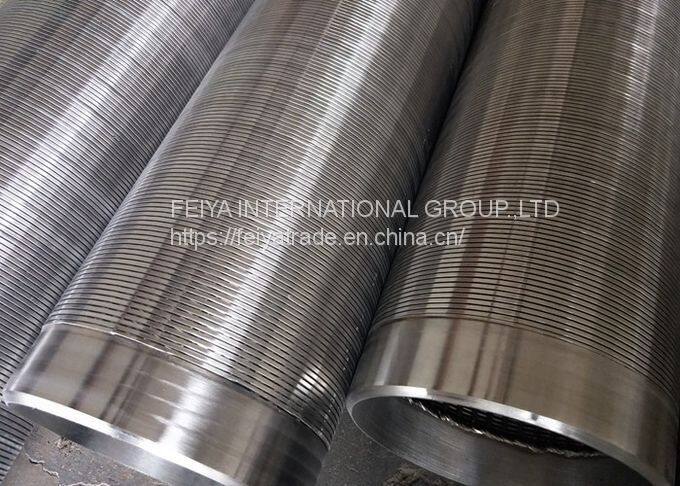

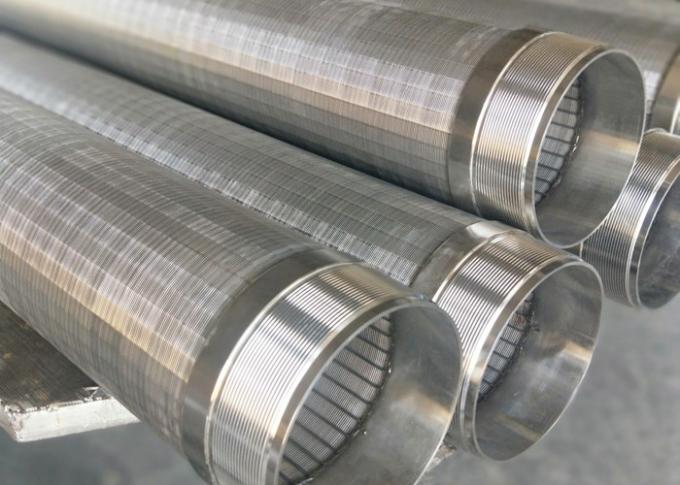

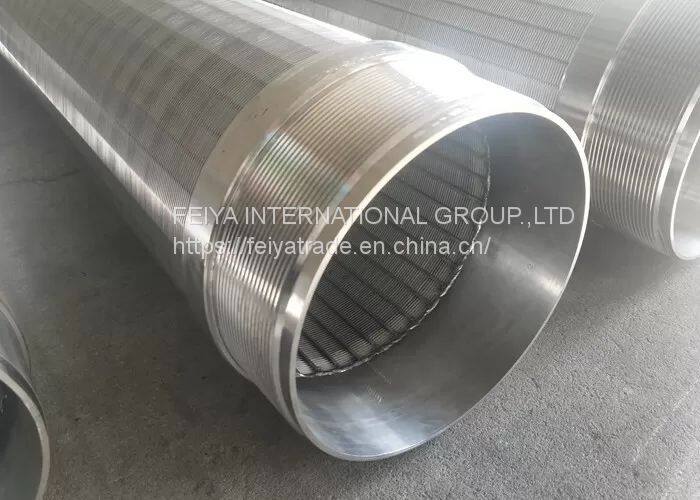

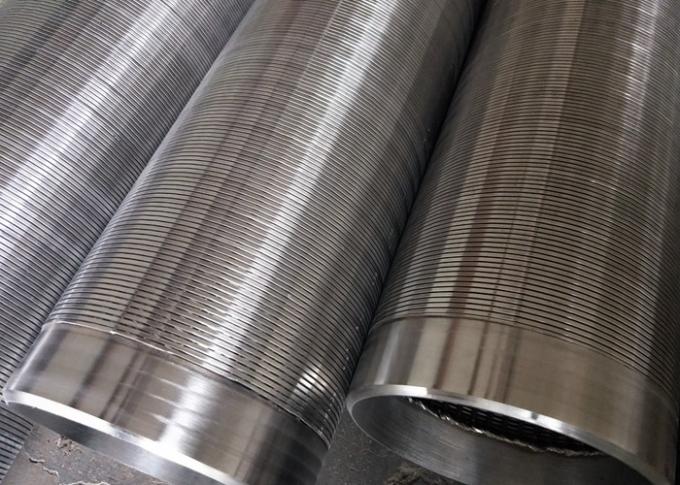

Pictures:
