Johnson V Wire Wrapped Wound Screen Plate Advantages:
Stainless Steel 304 Wire Welded Continuous Solt Johnson Wedge Wire Flat Screen have many advantages as below:
V-Shaped Slots: Openings shaped like a "v" that open toward the inside of the well tend to allow the particles that are just barely smaller than the width of the slot pass. In other shapes of openings, these particles would get caught in the screen and clog it.
Very Large Open Area: This design gives continuous slot and hence the% open area for water to enter is more than 2 times that of conventional slotted pipes of any size and slot opening. This allows more water to enter at much lesser frictional head loss and the efficiency of tube well is improved appreciably.
Energy Saving: Due to reduce frictional head losses and increased discharge, the pump load reduces the power required to pump same quantity of water. Power saving of around 20-25% is observed.
Johnson V Wire Wrapped Wound Screen Plate Product Description:

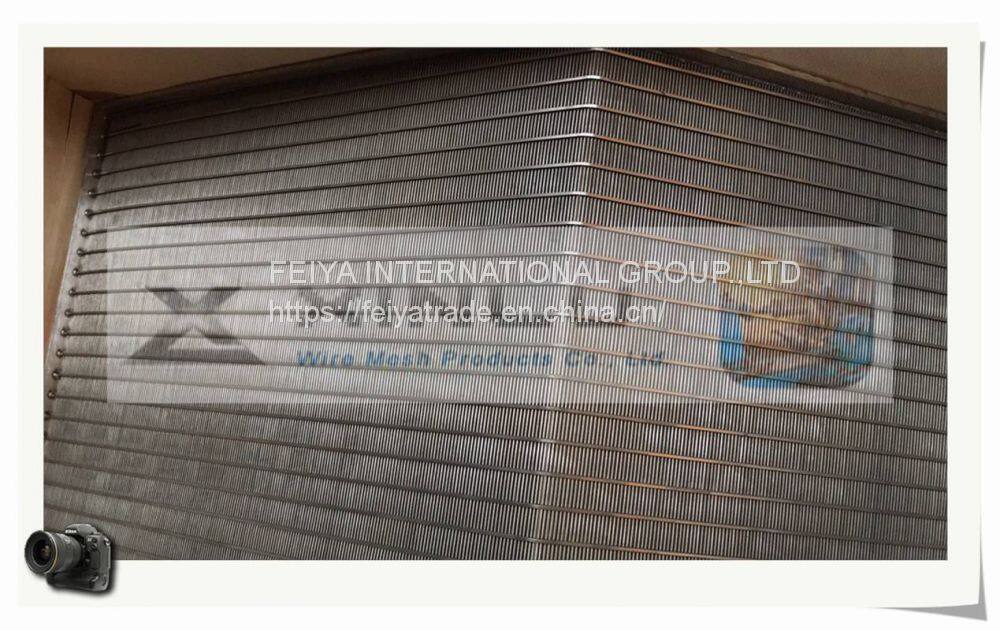

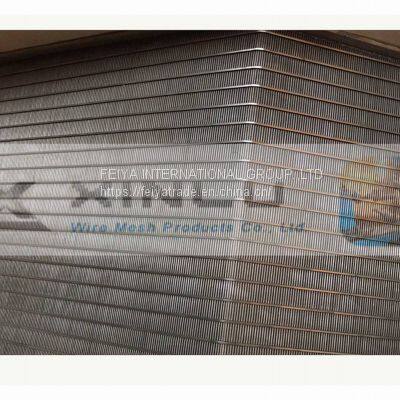

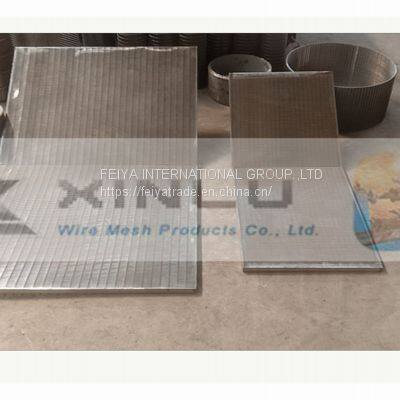

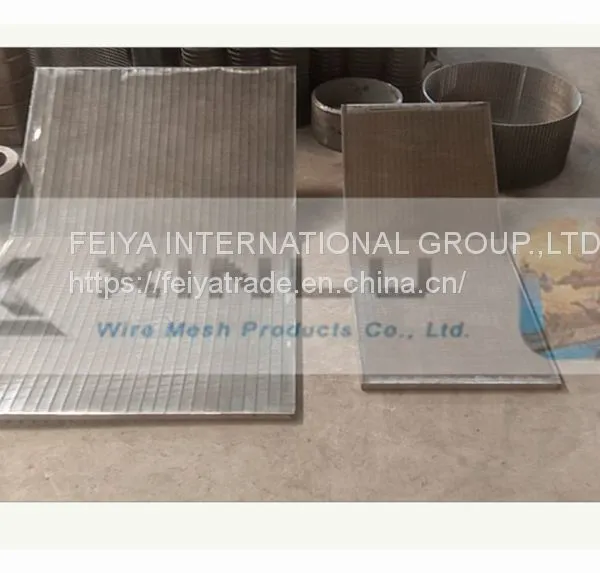

Stainless Steel 304 Johnson V Wire Wrapped Wound Screen Plate is welded by V wire and support rod.There is a fixed value slot between each v wire. The support bar can be a round wire or a triangular wire or a trapezoidal wire.

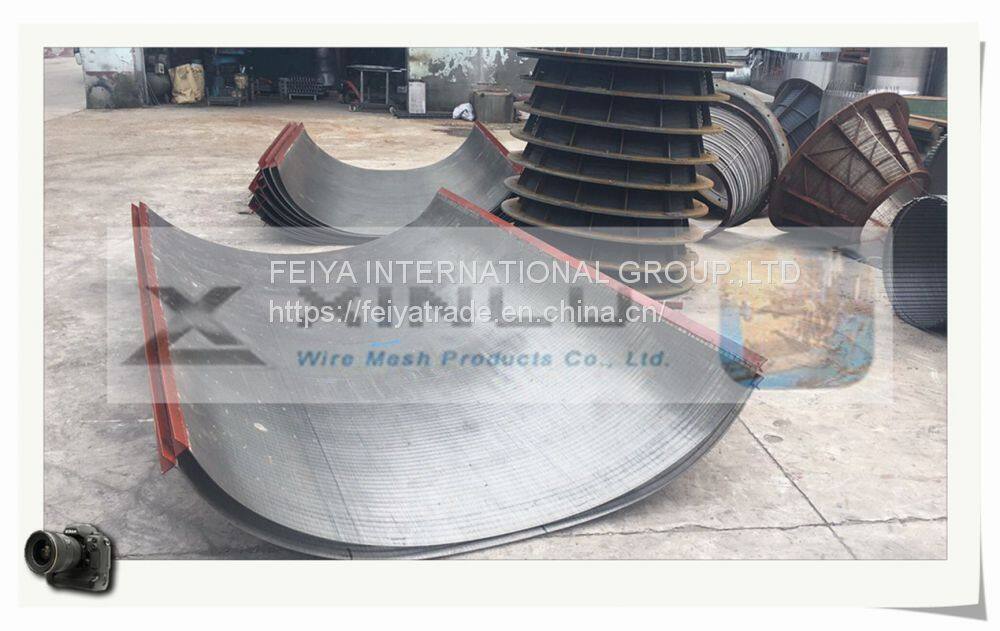

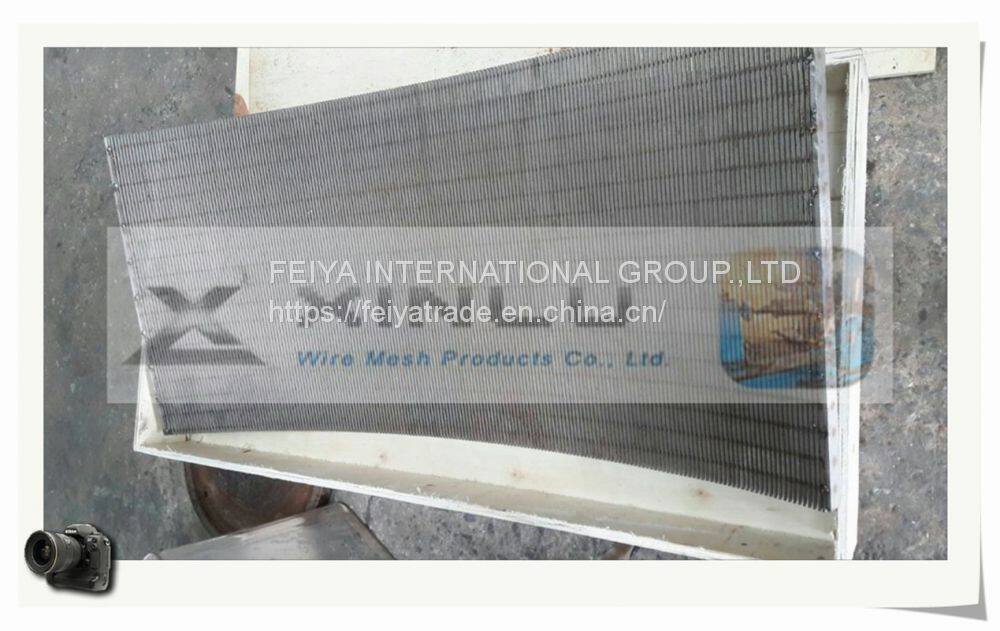

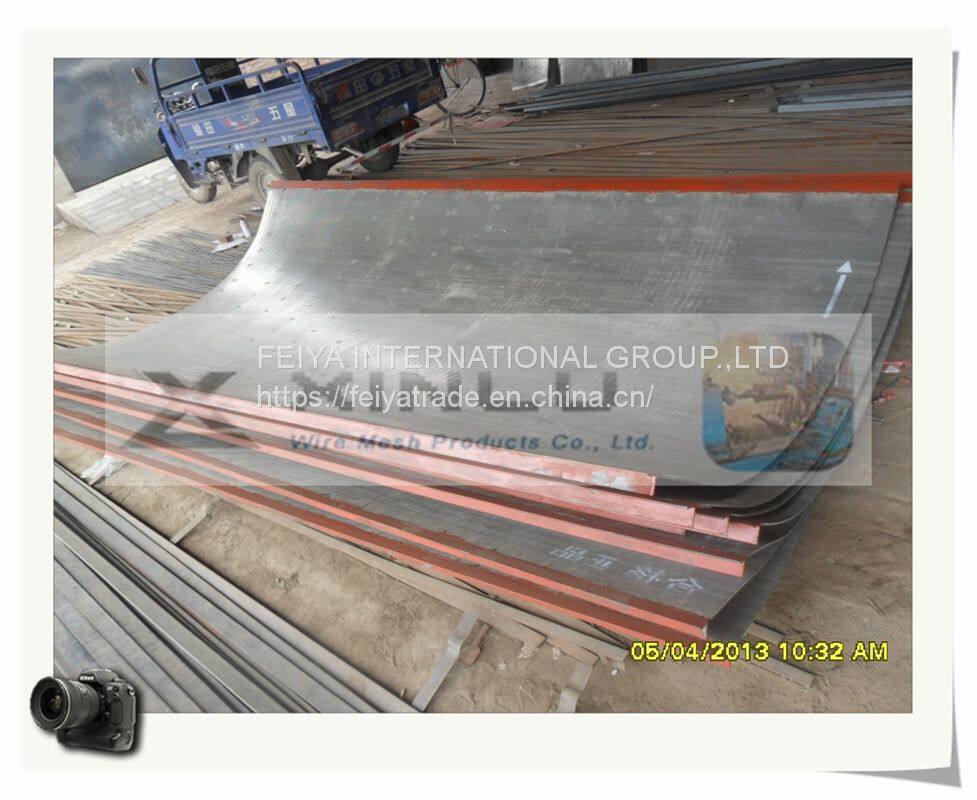

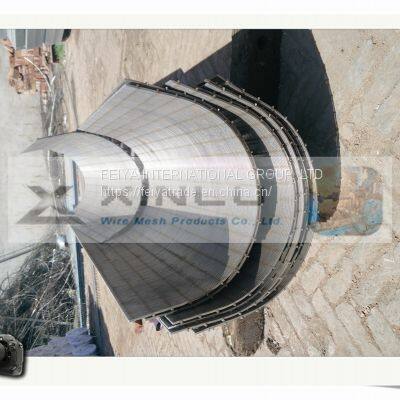

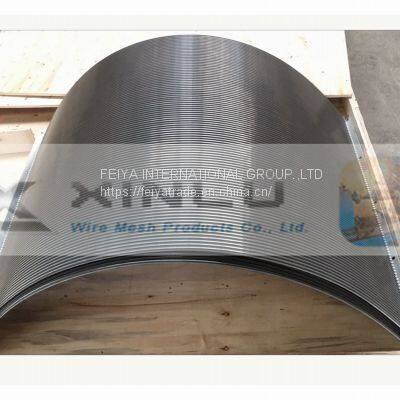

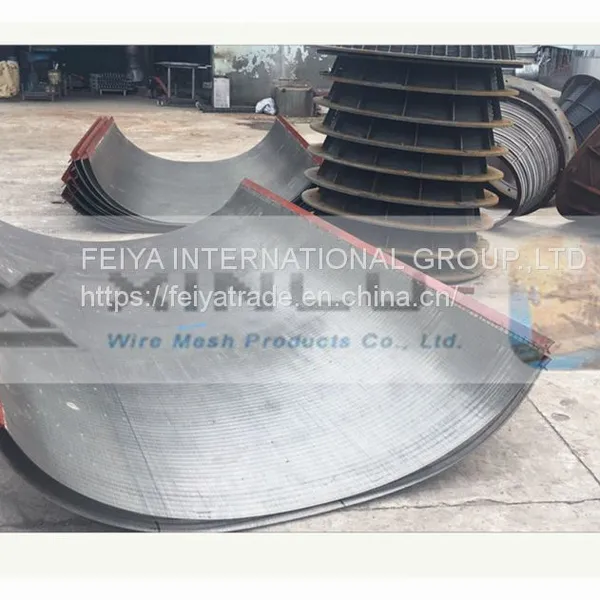

The maximum size of the screen can be 3000*4430mm. The frame or support plate can be added to the bottom or the surrounding of the screen according to the customer's needs. It can also make a certain arc according to customer requirements to meet the needs of use.
The surface of the screen is evenly spaced, the solder joint is firm and the permeability is good.
Johnson V Wire Wrapped Wound Screen Plate Specification:
| Material | Stainless steel |
| Grade | 304 |
| Dimension | 3 * 3 m, request |
| Slot Size | 0.7 mm |
| Width | up tp 3000mm |
| Length | up to 3150mm |
| Type | screen plate |
| Wire size | 2*3.5 mm |
| Support rod | 3*4.6 mm |
| Wire shape | V shape |
Johnson V Wire Wrapped Wound Screen Plate Regular Specifications:
Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Dimension: width up to 3000 mm
Length up to 3150mm
Specification of the wrap wire:1 * 2 mm, 2 * 3 mm, 2.2 * 3.5 mm, 3 * 4.6 mm and so on.
Specification of the rod: 2 * 3 mm, 3 * 4.6 mm, 3 * 5 mm, 4 * 4 mm ( square shape ) and so on.
Special specification can be made according to your need.
Johnson V Wire Wrapped Wound Screen Plate Industry:
mining machinery: used for desilting and dewatering of coal preparation plants.
wheat tooth machine: it is suitable for use in wheat tooth mill, floater and drying stove.
beer machine: it is suitable for use in the brewery filter tank, with the advantages of high opening rate and long service life.
food industry: the filtration process can be used for food and beverage.
aquaculture: used for farming, cleaning up waste residues from animals.
chemical industry and other: sewage treatment for sugar mills and paper mills; Material filtration, dehydration and the supporting use of all kinds of painting rooms in chemical fertilizer plant; Starch filtration in the food factory; Ventilation for grain storage.
