Johnson Wire Screen nozzles are typically used in media retention vessels where specific flow and backwash rates are desired.
Our applications engineers can recommend the number of nozzles needed for effective collection and distribution. Down-flow reactors can place extremely high loading on the media retention screens at the bottom of the vessel. In some cases, this can require a false bottom to carry the load.
Obviously, some provision must be made for the process flow to pass through this plate. This can most easily and effectively be done by installing a number of screen nozzles uniformly across the plate.
Johnson wire Screen nozzles are an ideal choice based on their combination of high strength, high open area and nonplugging slot design.
Standard nozzles are 2 in. / 51 mm diameter and can be attached to the plate either with threaded end fittings or with "L" bolts.
Slot openings typically range between 0.006 in. / 0.15 mm and 0.020 in. / 0.50 mm wide.
They are of the unique plug-resistant Vee-Wire design, allowing particles to make only two-point contact with the edges of the wire.
In other designs such as wire mesh, particles can readily become entrapped in the mesh causing plugging and creating a continuing maintenance problem.
Johnson Wire Screen nozzles are most commonly made with 316L stainless steel, but a special spherical nozzle of ABS or plastic is also available.
Other custom nozzles can be designed to suit special process and installation requirements.
| Material: | Stainless Steel | Slot Size: | 0.2 Mm |
|---|---|---|---|
| Grade: | 316L | Diameter: | 57 Mm |
| Length: | 115 - 110mm | Thread Size: | 1 1/4" |
| High Light: | filter nozzles for water treatment, wedge wire strainer | ||
Stainless steel ScreenThreaded Water Filter Screen Nozzle For Water Treatment
Product Description:
| Product Name | Johnson Water Filter Nozzle | Usage | Liquid filter |
| Material | Stainless Steel | Grade | 316L |
| Diameter | 45 mm | Slot size | 0.25mm |
| Screen Lenth | 50 - 55 mm | Total length | 90mm |
| Thread Size | 1 1/4 " , 32 mm | Profile wire | 1.5*2 |
| Nutsert | 1 PCS, 2 PCS | Support rod | 2*3 |
| Gasket | 1 PCS steel gasket,1 PCS rubber mat | Type | Filter element |
Characteristic:

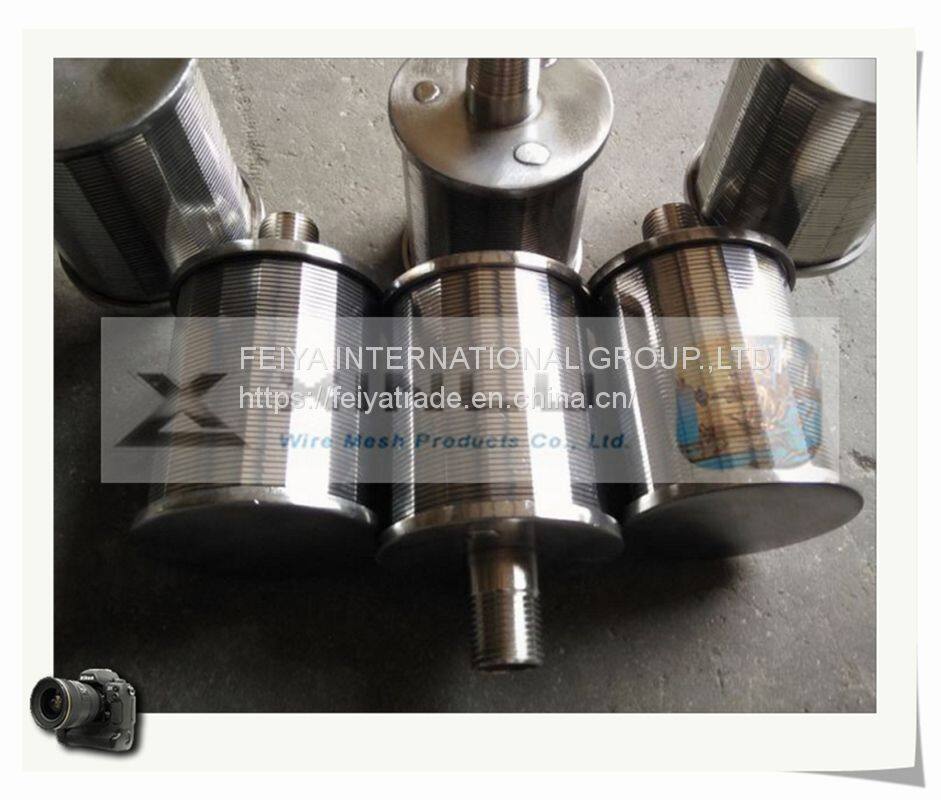

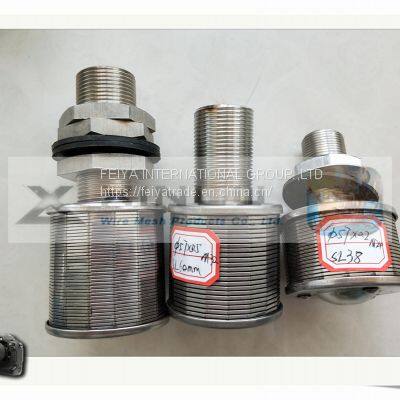

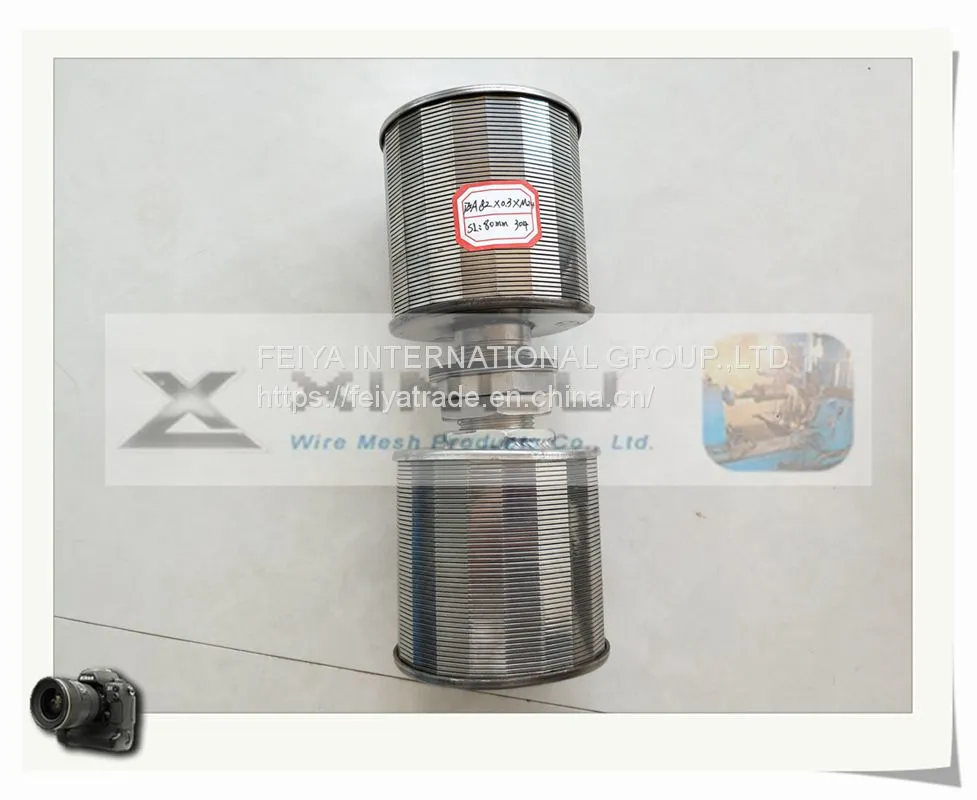

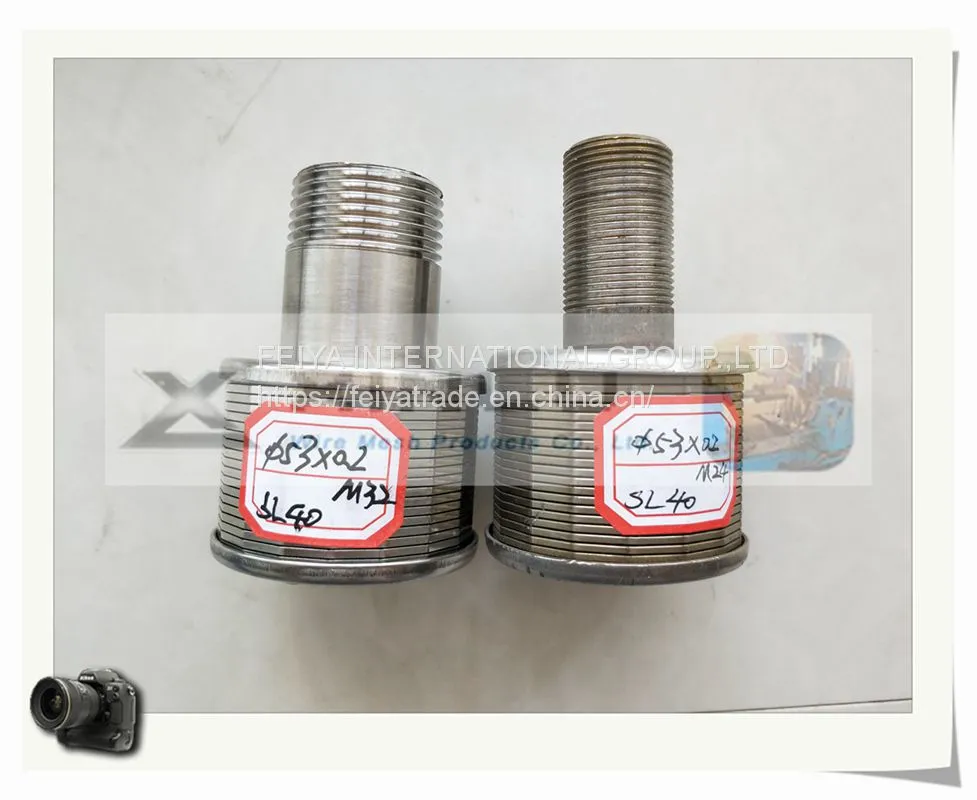

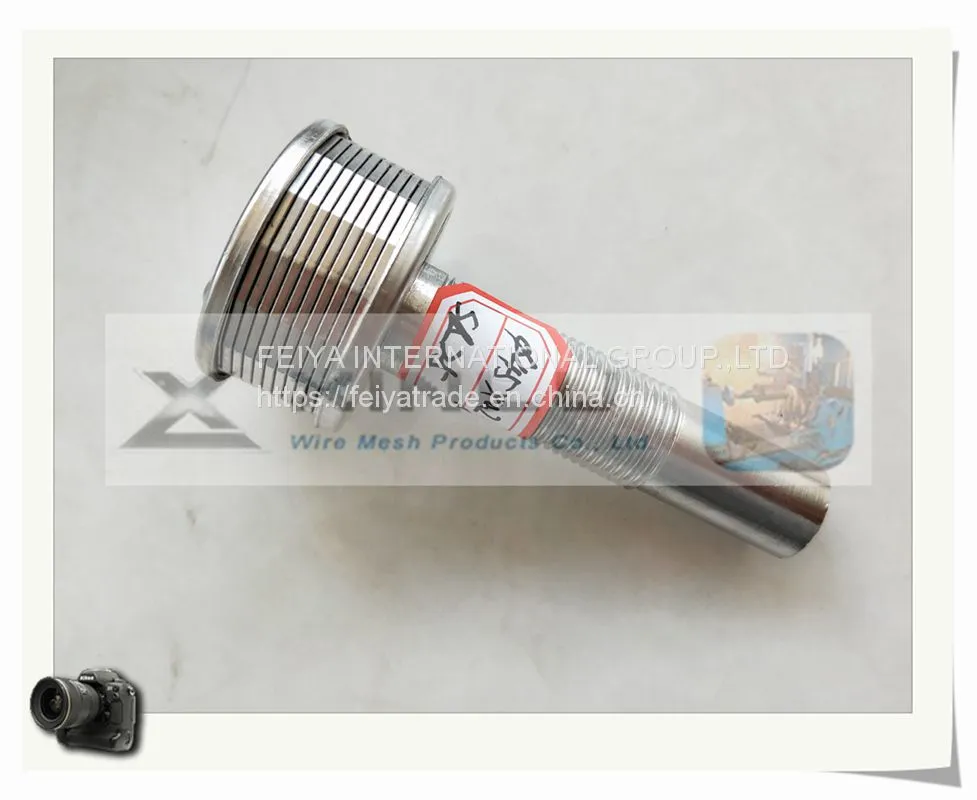

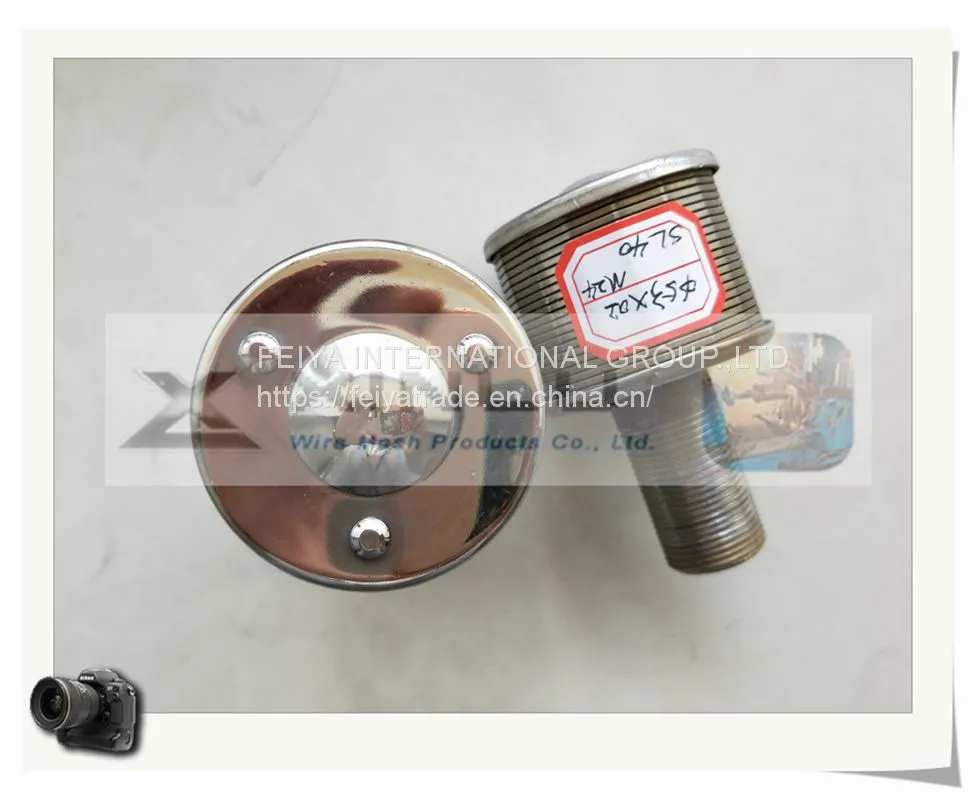

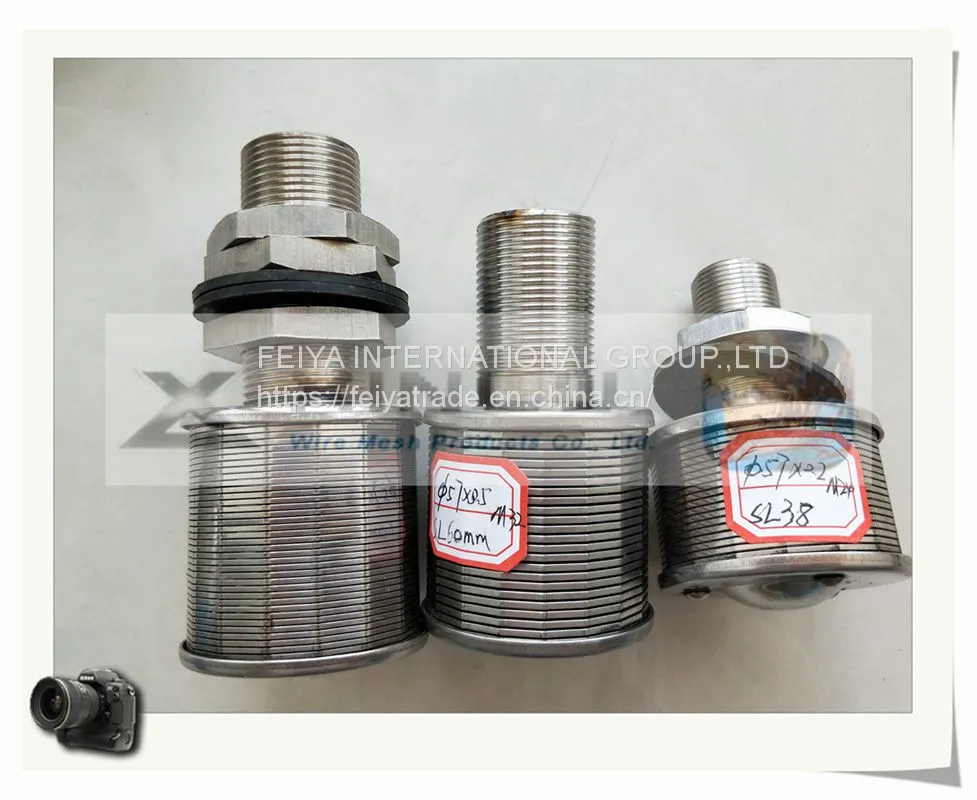

The filter screen nozzle is welded with screen pipe , thread pipe and steel plate, and the nipple (is divided into female and male), some nipple with nuts and rubber washer.
Stainless steel wedge wire cap is mainly installed in the filter, water filter, oil filter, such as filtering apparatus, is used in the water, oil, gas and resin rosin and medium filtering, can also be used for water treatment, water softening and sea water into fresh water, etc., can also can be used in food chemical and other industries filtration equipment.
Stainless steel wedge - shaped silk water cap, usually with high quality stainless steel 316, 316L and other materials to ensure strong product structure and product bearing capacity.The weight is generally 0.2-1.0kg, the volume weight is small, the appearance is exquisite.
Outer diameter: 20 mm to 50 mm
Gap: 0.05mm-0.5mm error: + 0.03mm.
Standard length: 50 ㎜ - 200 ㎜
Joint specification: 4 sub-pipe 12"--- pipe diameter: 12.5mm.
34"- pipe diameter 19mm.
1"-- -pipe diameter 25.4mm, etc.

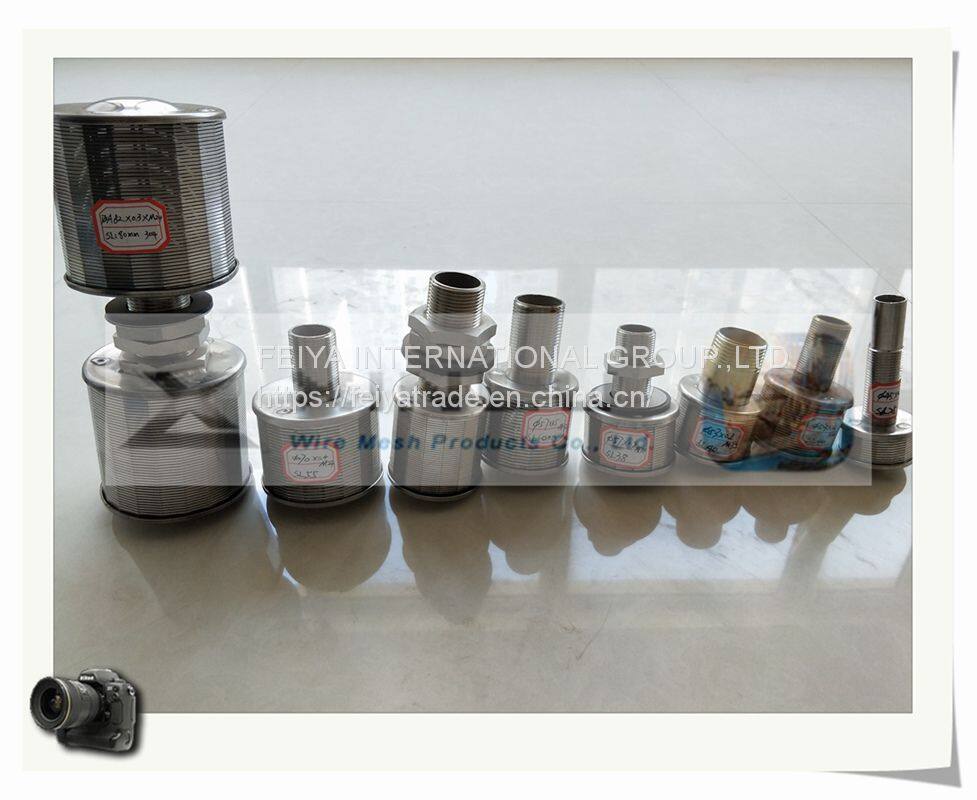

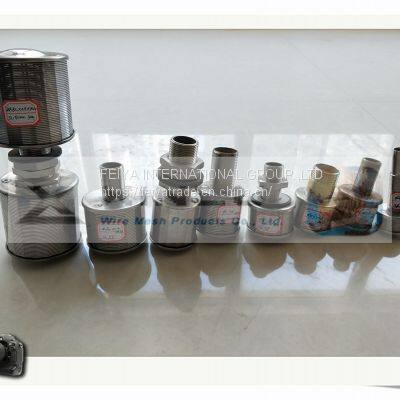

The structure is varied and meet different design requirements
OEM service:
Please tell us the specification of the water cap you need and we will help you to process the high quality products.
Custom range
Material: mainly stainless steel 304, 316L, 321, Hastelloy B, C and other materials.
Gap: 0.2-0.25mm, can be according to customer needs.

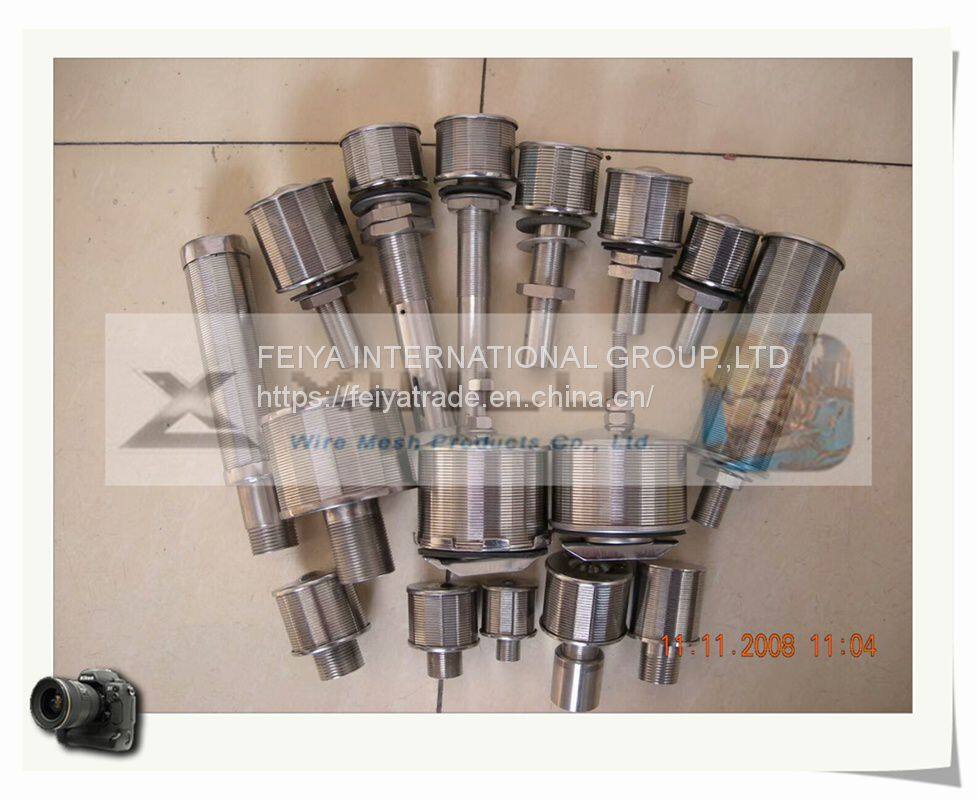

Type: Female thread, male thread, no thread, long handle, single velocity, double velocity etc.
Length: 50mm, 100mm, 130mm, 150mm, and by customers' request
Use:
The drainage cap purposes Stainless steel water cap is widely used in power plant, petroleum, chemical, pharmaceutical, food industries such as water treatment equipment, water treatment equipment is the key components of water distribution and water device.ABS enhanced water cap series.It is suitable for ion exchange, ion exchange resin and so on.Complete product specifications, including internal thread, external thread, single head, double head, long handle....Water treatment equipment is also used in various forms, such as mechanical filtration equipment, zwitterion exchange resin, floating bed, double room bed, mixing bed and gravity filter.
Regular Specifications:
FY-XL-57-13-A
| Type | Slot size | Specifications | Flow filter area 0.2mm slot ( reference) |
|||
| D | H | L | M | |||
| FY-XL-45-11-A | 0.2-0.5 | 45 | 30 | 150 | M20 | 330 |
| FY-XL-45-11-B | 0.2-0.5 | 45 | 40 | 160 | M24 | 400 |
| FY-XL-53-12-A | 0.2-0.5 | 53 | 40 | 170 | M24 | 510 |
| FY-XL-53-12-B | 0.2-0.5 | 53 | 50 | 180 | M32 | 640 |
| 0.2-0.5 | 58 | 40 | 190 | M32 | 630 | |
| FY-XL-57-13-B | 0.2-0.5 | 58 | 50 | 200 | M32 | 780 |
Delivery Time:
By courier:5-7 workdays by speicial offer.
By air:7-10 workdays at apointed airport.
By sea: 30-35 days at appointed port.
