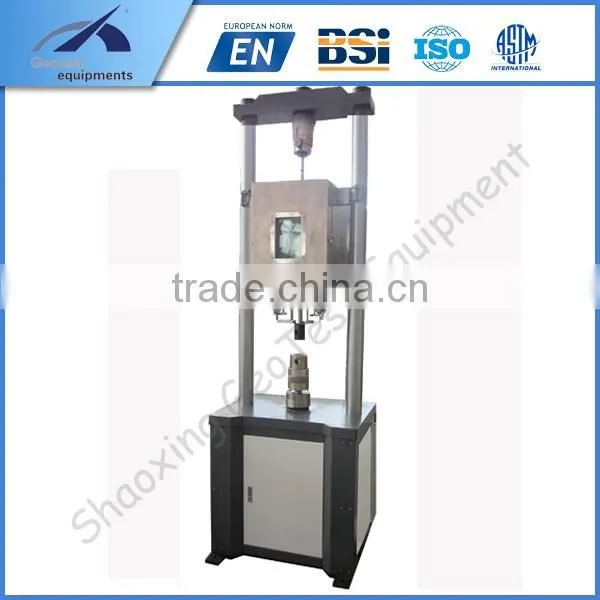

RDW Computer Control Electronic Creep Stress Rupture Testing Machine

RDW Computer Control Electronic Creep Stress Rupture Testing Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GEOTEST EQUIPMENTS
Model Number:
RDW
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo / Shanghai / Negotiable
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name GEOTEST EQUIPMENTS
Model Number RDW
Power Electronic
Usage Other, Creep Stress Rupture Testing Machine

Specifications

Electronic Creep Stress Rupture Testing Machine
1.High accuracy.reasonable price
2.perform routine creep,stress-rupture test

RDW Computer Control Electronic Creep Stress Rupture Testing Machine





Functions:

Applicable to creep property and stress-rupture strength test for metals and alloys at room temperature and high temperature, is special testing equipment in ferrous metallurgy, aerospace aviation,scientific institute,colleges and quality supervision,etc RDW Computer Control Electronic Creep Stress Rupture Testing Machine

Measuring range of load

500N~50kN / 1KN~100kN

Accuracy of load

Better than ±1%

Load resolution

1/300000

Max.loading rate

3000N/s

Load control stability

Better than±1%

Moving speed

0.001~100mm/min

Error of moving speed

±1%

Stroke of pull rod

200mm

Eccentricity of upper and lower pull rod

≤8%

Counting error

±0.1%

Power supply

220V±10%

Servo motor power

0.85kW

Stable working time

More than 1000hrs.

Dimension (L*W*H)

810*760*2550mm

Working temperature range

Room temperature-1000

Temperature control accuracy of furnace

±2℃

Dimension of control cabinet (L*W*H)

600*600*1600mm

Dimension of main machine (L*W)

3500*3000mm



RDW Computer Control Electronic Creep Stress Rupture Testing Machine

RDW Computer Control Electronic Creep Stress Rupture Testing Machine RDW Computer Control Electronic Creep Stress Rupture Testing Machine RDW Computer Control Electronic Creep Stress Rupture Testing Machine



RDW Computer Control Electronic Creep Stress Rupture Testing Machine

RDW Computer Control Electronic Creep Stress Rupture Testing MachineRDW Computer Control Electronic Creep Stress Rupture Testing Machine

 RDW Computer Control Electronic Creep Stress Rupture Testing Machine
