High Quality Cast Iron Automatic Chamber Filter Press
US$ 5,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Automatic
Production Capacity:
100ton
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or other
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Small Manual Multi-Layer Stainless Steel Frame Filter Press For LaboratoryUS$ 100 - 10,000MOQ: 1 Set -
Factory Supply Program Controlled Automatic Dewatering Press Filter PriceUS$ 5,000 - 50,000MOQ: 1 Set
-
Best Selling Program Controlled Automatic Chamber Filter Press PriceUS$ 5,000 - 50,000MOQ: 1 Set
-
High Performance Chamber Hydraulic Filter Press For SaleUS$ 5,000 - 50,000MOQ: 1 Set
-
Electric Motor Drive Mechanical Small Filter Press for Dehydration IndustryUS$ 2,000 - 8,000MOQ: 1 Set
Condition
New
Automatic Grade
Automatic
Production Capacity
100ton
Place of Origin
Henan, China
Brand Name
GEC
Model Number
XA/MZ Series
Voltage
380V
Power(W)
3.0KW
Weight
10800kg
Dimension(L*W*H)
4560*1300*1300mm
Certification
ISO9001&CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas

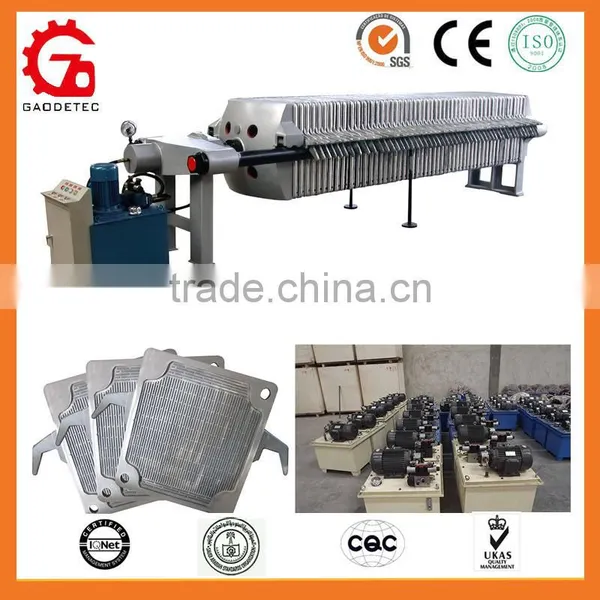

High Quality Cast Iron Automatic Chamber Filter Press
Product Description
High Quality Cast Iron Automatic Chamber Filter Press
Structure and operating principle
- Filter press consist of frame ,filter plate ,pressing system(manual , mechanical or hydraulic ) and electric control cabinet .
- Frame consists of base , push plate and girder and supports the pressing device and filter plates .
- Filter plates are installed on girder between tail plate and push plate , with filter cloth sandwiched in them.
- In operation , the pressing device(cylinder piston rod or screw ) drives the push plate to press the filter plates and filter cloth between push plate and tail plate . Filter chambers are formed between pressed filter plates and material get in to The filter chambers through the feeding port in tail plate . Solid particles are trapped in filter chambers form into cakes , while liquid is discharged out of the tail Plate . In similar manner ,to drying the press cakes , compressed air can be introduced through the washing port .
- Plate and frame type filter-Press is the same as recessed plate filter press in structure ,except the filtering part that consists of one plate , one frame and filter cloth ,with filter chamber between plate and frame.
- Liquid stream of filter press can be divided into exeternal stream and internal stream . exeternal streamrefers to that the filtrate is discharged directly from outlet port of filter plate; internal stream refers to that the filtrate from various filter plate is collected before being discharged out of the filtrate port .
Design feature of automatic chamber filter press :

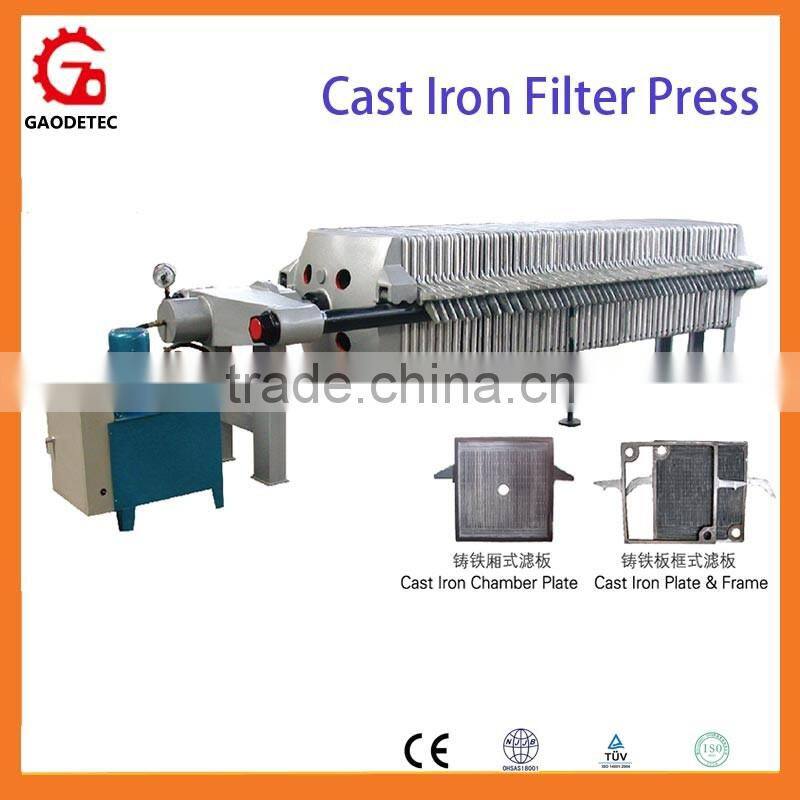

Cast iron plates are made of high quality cast iron or nodular cast iron. It's used for high temperature material. The plate has features of high strength, high pressure, long life-span. It's widely used for solid liquid separation in petrochemical, metallurgy, oil etc..

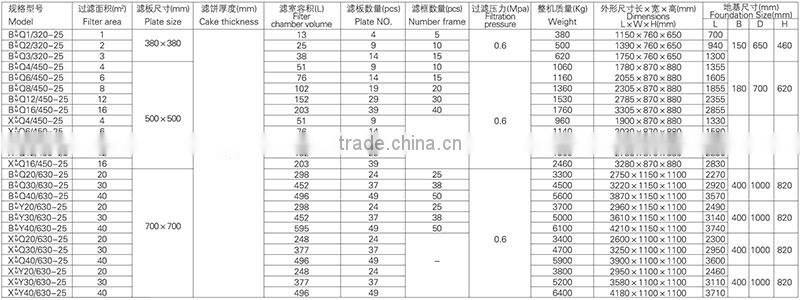

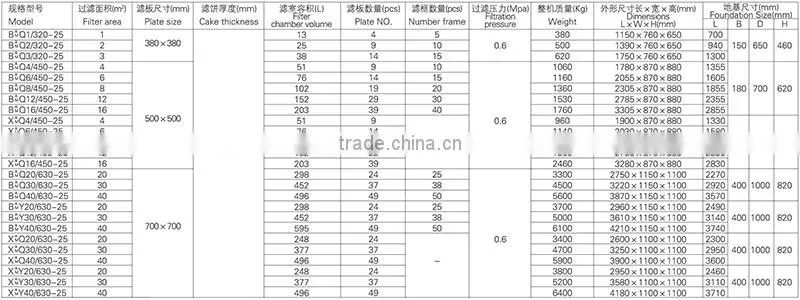

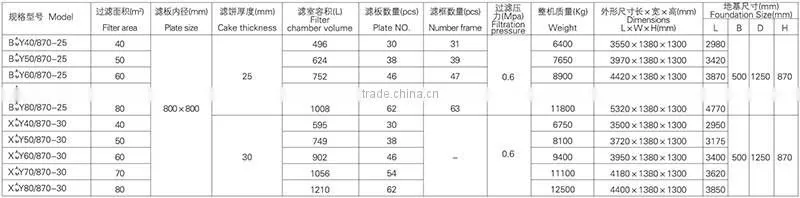

Technical data cast iron filter press(plate and frame type):

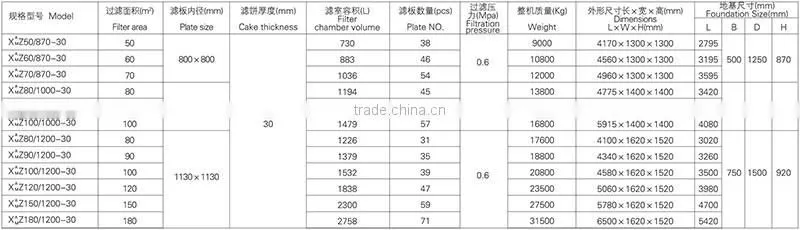

Technical data cast iron filter press 800 (plate and frame type):
Technical data of automatic chamber filter press(chamber type):

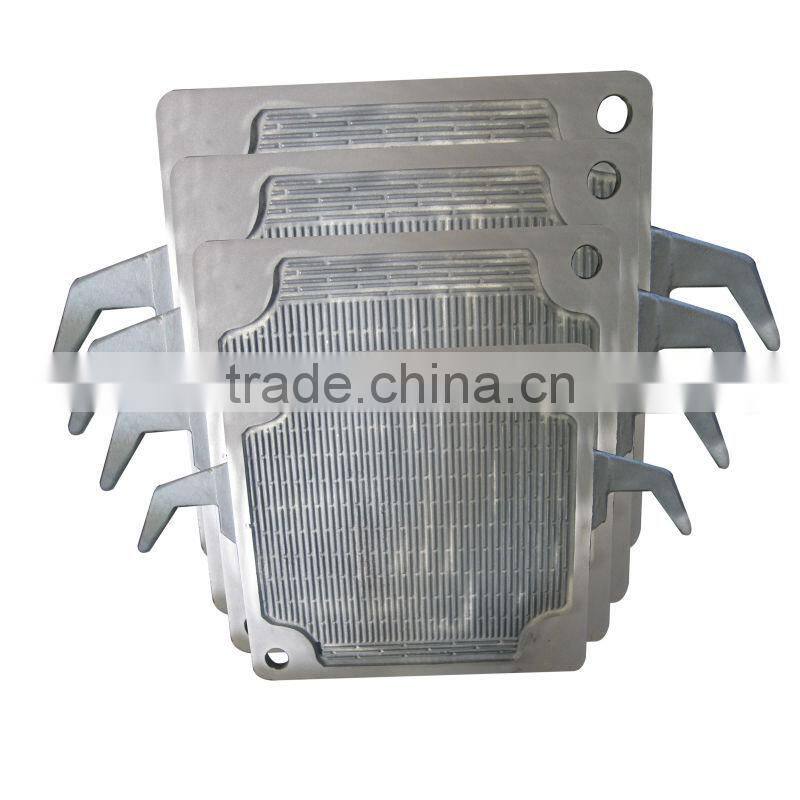

Filter plate :
Company Information

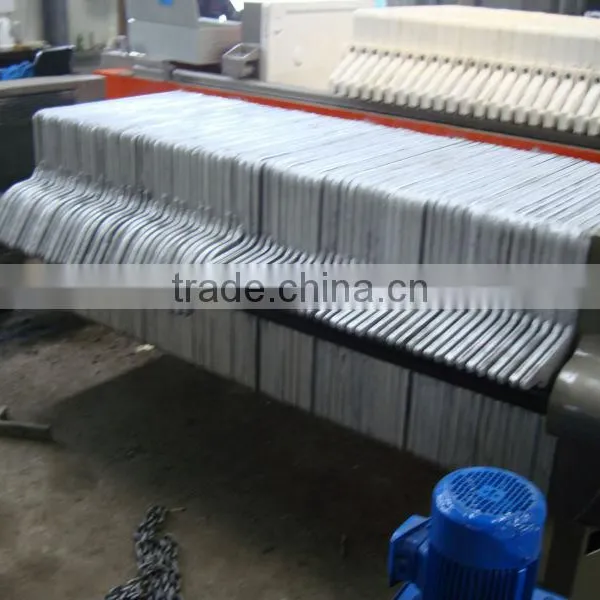

Our workshop of automatic chamber filter press:
