Help CenterLarge Capacity Filter Press For Kaolin,Environmental Dewatering From China Manufacturer
Related Products
-
Mining Using Solid Liquid Separator With Advanced Technoloy and High QualityUS$ 2,580 - 48,600MOQ: 1 Set -
Newest Heavy Disc Separator for Industry Dewatering and Ore Slurry Separation. With Good QualityUS$ 5,280 - 48,600MOQ: 1 Set
-
China High Efficient Sewage and Ore Slurry Filter Presses on SaleUS$ 5,280 - 48,600MOQ: 1 Set
-
2016 High Precision Separation Disc Filters Supplier With Quick Service and Good QualityUS$ 5,280 - 48,600MOQ: 1 Set
-
Solid-Liquid Separation Filter Application on Concentrates Slurry,Coal,Environmental EtcUS$ 5,280 - 48,600MOQ: 1 Set
Model Name: |
BY Series |
Filtering area: |
1-120 m2 |
Filtering elements: |

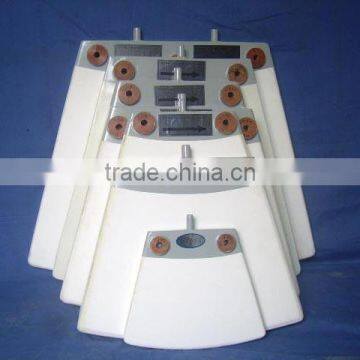

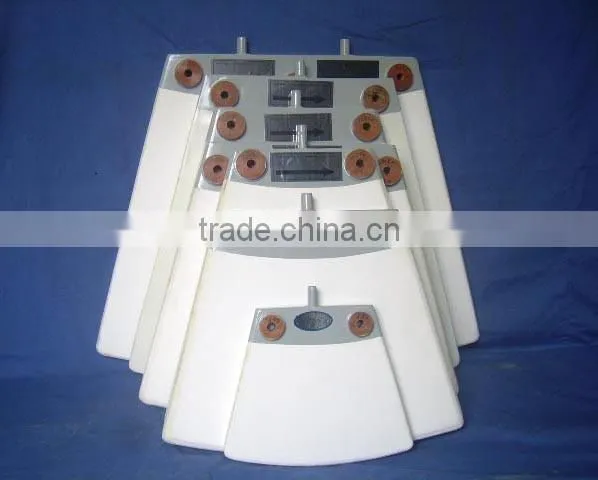

Ceramic plates |
Self Clean: |
Acid Washing and Ultrasonic Device |
Discharging of cake: |
Auto-discharging with scraper and belt conveyer |
Discharging of filtrate: |
Vacuum Liquid Discharging Tank |
Usage
The ceramic vacuum disc filter is widely used for dewatering slurry ore, clean coal, waste coal and others, it also can be used for solid-liquid separation in metallurgy, chemical industry, environmental pollution, petroleum and sewage treatment. The fineness of materials is from -200to-450mesh and a variety of superfine materials.
Different project site
Specification of BY series
Specification |
Filter area (m2) |
Disc Quantity (pcs) |
Filter plate diameter(m) |
Main size(length*width*height) (m) |
Weight (T) |
Power (KW) |
Operating power (KW) |
Volume of tank |
BY-1 |
1 |
1 |
1.52 |
1.7x1.5x1.5 |
1.4 |
5.28 |
<3.08 |
0.2 |
BY-2 |
2 |
2 |
1.52 |
1.9x1.5x1.5 |
2.1 |
5.4 |
<3.2 |
0.3 |
BY-4 |
4 |
2 |
1.52 |
2.5x2.5x2.5 |
2.6 |
6 |
<3.8 |
0.9 |
BY-6 |
6 |
2 |
1.52 |
2.8x2.9x2.5 |
2.9 |
7.3 |
<5.1 |
1.4 |
BY-9 |
9 |
3 |
1.52 |
3.1x2.9x2.5 |
3.5 |
12.36 |
<8.36 |
1.9 |
BY-12 |
12 |
4 |
1.52 |
2.96x2.9x2.5 |
4.5 |
13.08 |
<9.08 |
2.4 |
BY-15 |
15 |
5 |
1.92 |
3.56x2.9x2.5 |
4.9 |
13.8 |
<9.8 |
2.9 |
BY-18 |
18 |
6 |
1.92 |
3.86x2.9x2.5 |
5.3 |
14.52 |
<10.52 |
3.4 |
BY-21 |
21 |
7 |
1.92 |
4.16x2.9x2.5 |
5.7 |
15.24 |
<11.24 |
3.9 |
BY-25 |
25 |
5 |
1.92 |
3.62x3.45x2.95 |
6.1 |
16.7 |
<12.7 |
4.4 |
BY-30 |
30 |
6 |
1.92 |
3.92x3.45x2.95 |
6.9 |
19.7 |
<14.2 |
5.3 |
BY-35 |
35 |
7 |
1.92 |
4.22x3.45x2.95 |
7.7 |
20.05 |
<14.56 |
6.2 |
BY-40 |
40 |
8 |
1.92 |
4.52x3.45x2.95 |
8.5 |
22.06 |
<16.22 |
7.1 |
BY-45 |
45 |
9 |
1.92 |
4.82x3.45x2.95 |
9.3 |
25.72 |
<18.22 |
8 |
BY-60 |
60 |
12 |
2.06 |
5.77x3.45x2.95 |
11.7 |
30.46 |
<22.46 |
11 |
BY-80 |
80 |
16 |
2.1 |
6.97x3.45x2.95 |
14.9 |
43.78 |
<28.78 |
14 |
BY-90 |
90 |
15 |
2.1 |
6.7x4.2x3.5 |
15.2 |
51.3 |
<36.3 |
16 |
BY-102 |
102 |
17 |
2.1 |
7.3x4.2x3.5 |
17.6 |
60.9 |
<38.9 |
18 |
BY-120 |
120 |
20 |
2.1 |
8.2*4.2*3.5 |
21.2 |
66.22 |
<44.22 |
19 |
(Just for reference)
Benefits of ceramic filter
.Large processing capacity, energy saving is obvious
.Fully automatically, perfect automatic protection function
.Small occupied area, low transportation cost
. Easy installation and maintenance
. Reliable structure and long lifespan
Working sketch map
General structure

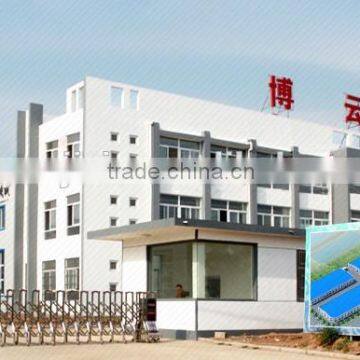

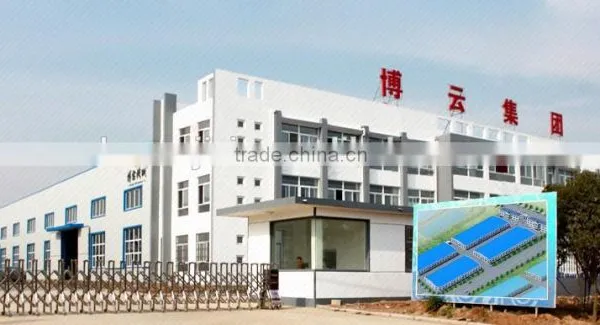

About us
Certificate
Questions
1.what is the raw material do you want to process? Iron ore, copper ore, or others
2.What is the feed concentration of raw material?
( usually for mineral processing 60%200mesh,for the cement 350mesh)
3.What is the capacity per hour do you need? wet type or dry type?
4.The particle size of material?
Any requirements and questions please fell free to contact us:+86-18052312057,
