Filter Press

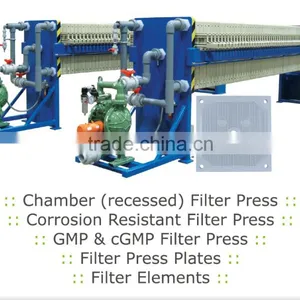

Filter Press thumbnail-1

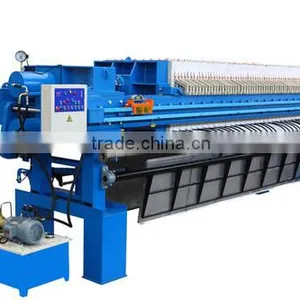

Filter Press thumbnail-2
Filter Press photo-1

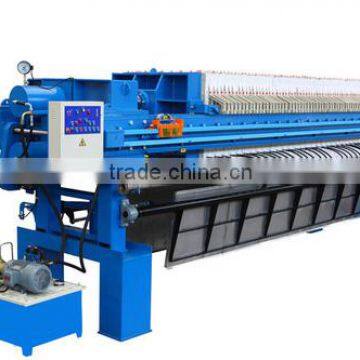

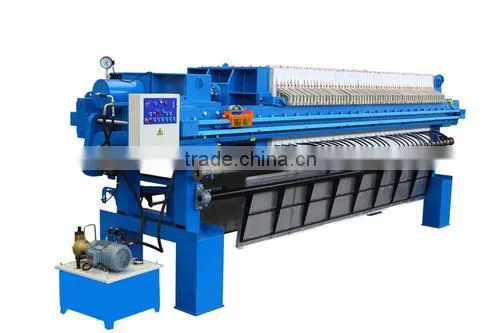

Filter Press photo-2
US$ 1,000 - 75,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Semi-Automatic
Production Capacity:
100 Units per Quarter
Contact Supplier Request Quote Chat Now
Pyrocrat Systems Llp
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
JNPT Mumbai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Automatic Grade Semi-Automatic
Production Capacity 100 Units per Quarter
Place of Origin Andhra Pradesh, India
Brand Name Pyrocrat Systems LLP
Model Number PSL10 to PSL48
Voltage 3ph/380V50HZ.3ph/415V/50HZ
Power(W) Variable Depending on Model
Weight Variable Depending on Model
Dimension(L*W*H) Variable Depending on Model
Certification CE ISO9001:2015
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Details

Filter Press Models and Specifications:

Given below is list of Filter Press Models Manufactured by us:
Filter Press Model Number
Number of Plates
Plate Size
(mm x mm)
Filtration area (m2)
Cake holding capacity (liter)
Approx Cost in USD
PSL48
48
1200 x 1200
114
2,850
28,000
PSL42
42
1060 x 1060
63
1,575
22,100
PSL40
40
1000 x 1000
60
1,500
19,300
PSL36
36
900 x 900
45
1,125
12,000
PSL32
32
810 x 810
30
588
9,800
PSL30
30
760 x 760
24
460
9,500
PSL24
24
600 x 600
12
240
6,500
PSL20
20
500 x 500
7.6
110
4,900
PSL18
18
470 x 470
4.8
72
4,761
PSL14
14
350 x 350
2.07
31
2,150
PSL10
10
250 x 250
0.8
10
1,350
Product Introduction

Included in Scope of Supply:

Filter press body,

Filter Press Plates,

Hydraulic Closing device,

Filter Cloth 1 set,

Operational Manual in English,

General Arrangement drawing,

Foundation Drawing

Technical Parameters
Technical Parameter
Specifications
TYPE OF DELIVERY
OPEN/CLOSE
TYPE OF ELEMENT
Polypropylene RECESS
CLOSING DEVICE
HYDRAULIC CLOSING DEVICE
CONTACT PARTS
Polypropylene
DRAINAGE SURFACE
PIPPS
CAKE THICKNESS
50mm
MATERIAL OF CONSTRUCTION
FILTER CLOTH: Polypropylene
PLATES: Polypropylene
FEED HEAD : M.S
FIXED END : M.S.
MOVING HEAD : M.S.
DISTANCE PIECE : M.S.
PLATES : P.P.
TIE BAR : M.S
COCKS : P.P. /N.A.
ROLLERS/HANDWHEEL : C.I.
NOZZLE/FLANGES : P.P.
OPERATING PRESSURE
5 TO 7 kgf/cm2
OPERATING TEMPERATURE
-30 to +95oC
Product Details Show

Custom Designed Filter Press:


Variable depending on your process parameters, we can design and propose the filter press suitable for your application:
Please email us the following process data to propose the custom designed size of filter press.
Name
Data (to be given by buyer)
Unit
Cake Holding Capacity Desired (If Known)
Liter
Industry/Application
-
Filtration Capacity per Hour
kl/h (kilolit/hr)
Total quantity of liquid slurry to be filtered per 24 hours
m3/day
Slurry feed density
kg/m3
Suspended Solids content in slurry (kg per 100 lit)
%
What is the suspended solid?
N/A
Expected cake production during filtration (optional)
kg/h
Desired Batch Time
hour
pH of the slurry (Below 6 pH requires FRP coating on filter press body)
pH
Working temperature
℃
Why Choose Us

About us

Years of experience in Filter Press. Pyrocrat Systems LLP is one of the leading manufacturers, suppliers & exporter of Filter Press. We have established higher standards in industrial filter press by ensuring robust engineering, cost effective filtration and high customer satisfaction.

Equipment & technology

- 1 year warranty against manufacturing defects

- Over 25 years of experience in filter press manufacturing
- Large filtration area & High speed filtration rate
- Yields compact and almost dry solid cake
- Operates at pressures up to 7.5Kg/cm2 (110PSI)
- Compact design, durable, negligible maintenance downtime
- Ease of cake washing with washing liquid or compressed air

Service

- Lifetime After sales support

- Quick delivery  of spares (some of them free)

- Engineer available for overseas client

- 24 hour reply to emails

- contactable on whats-app and phone 24 hours

Order Processing

Filter Press Order Processing is Done in Following Stages

Work Sheet & Drawings to workshop in line with the purchase order

Approval of GA Drawings by Client

Material Procurement

3rd Party and In House Material quality control tests

Machine Manufacturing & in-process inspections

Pre-dispatch Inspection

Packing & Dispatch

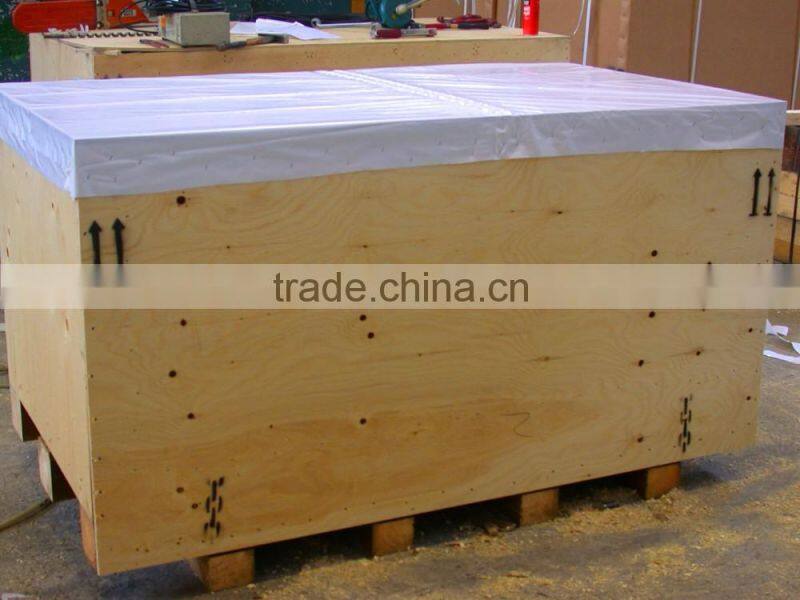

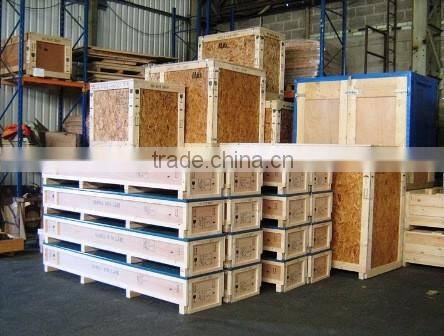

Product Packing
