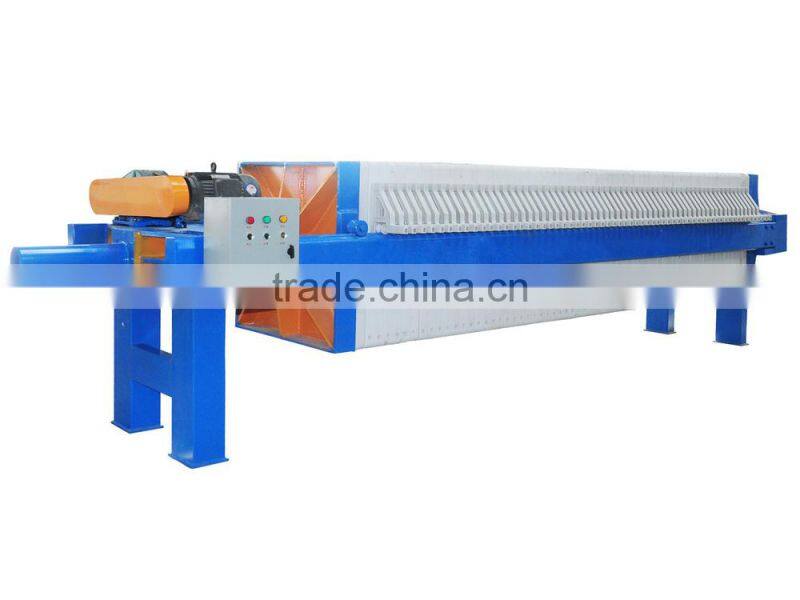

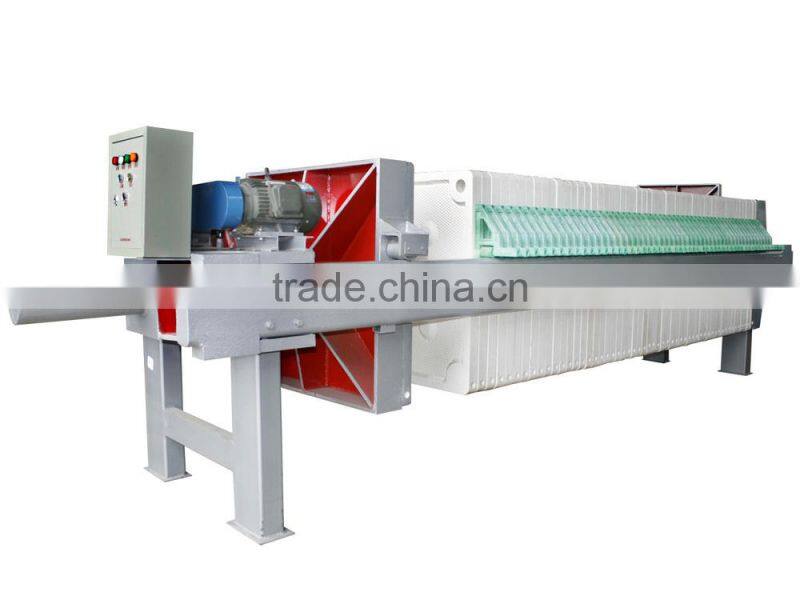

Electric motor drive mechanical small filter press for dehydration industry

Electric motor drive mechanical small filter press for dehydration industry

Structure and operating principle:

1. Filter press consist of frame ,filter plate ,pressing system(manual , mechanical or hydraulic ) and electric control cabinet .
2. Frame consists of base , push plate and girder and supports the pressing device and filter plates .
3. Filter plates are installed on girder between tail plate and push plate , with filter cloth sandwiched in them.
4. In operation , the pressing device(cylinder piston rod or screw ) drives the push plate to press the filter plates and filter cloth between push plate and tail plate . Filter chambers are formed between pressed filter plates and material get in to The filter chambers through the feeding port in tail plate . Solid particles are trapped in filter chambers form into cakes , while liquid is discharged out of the tail Plate . In similar manner ,to drying the press cakes , compressed air can be introduced through the washing port .
5. Plate and frame type filter-Press is the same as recessed plate filter press in structure ,except the filtering part that consists of one plate , one frame and filter cloth ,with filter chamber between plate and frame.
6. Liquid stream of filter press can be divided into exeternal stream and internal stream . exeternal streamrefers to that the filtrate is discharged directly from outlet port of filter plate; internal stream refers to that the filtrate from various filter plate is collected before being discharged out of the filtrate port .

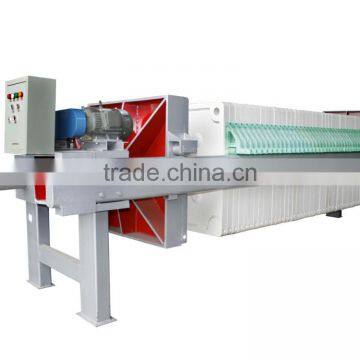

Design feature of small mechanical filter press:

Mechanical compression compression filter driven by the motor reducer , the drive components to promote the pressure plate clamping plate . Compression screw and nut design a reliable self-locking helix angle ,when pressed to ensure the reliablility andstablility . Comprehensive protection with automatic motor control . Can be achieved on the motor overheating and overload protection .

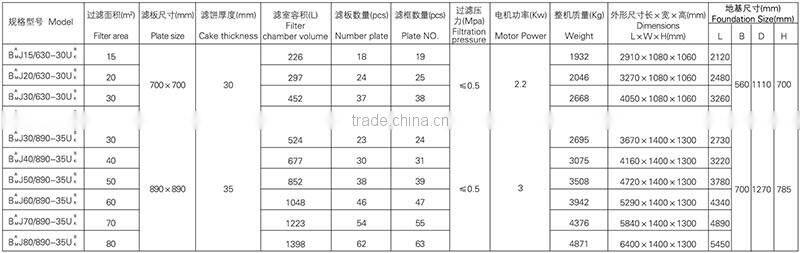

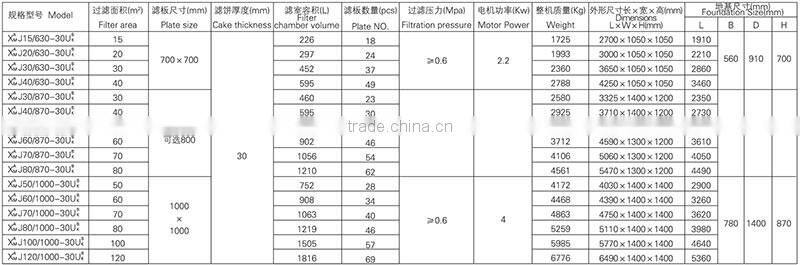

Technical data of small mechanical filter press (chamber type)

Flange dimension of small mechanical filter press :

Technical data(Plate and frame type)

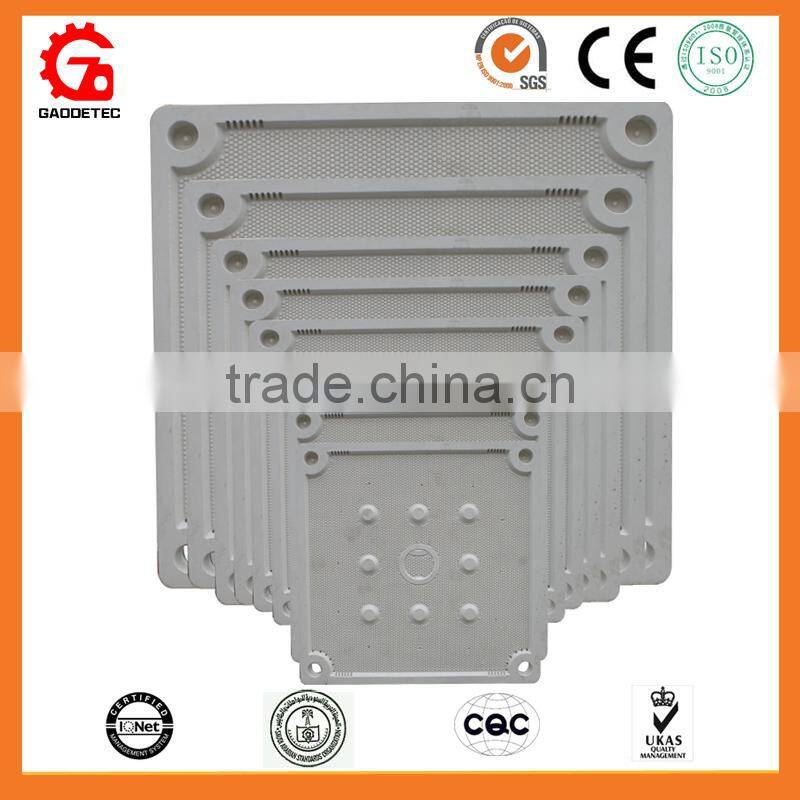

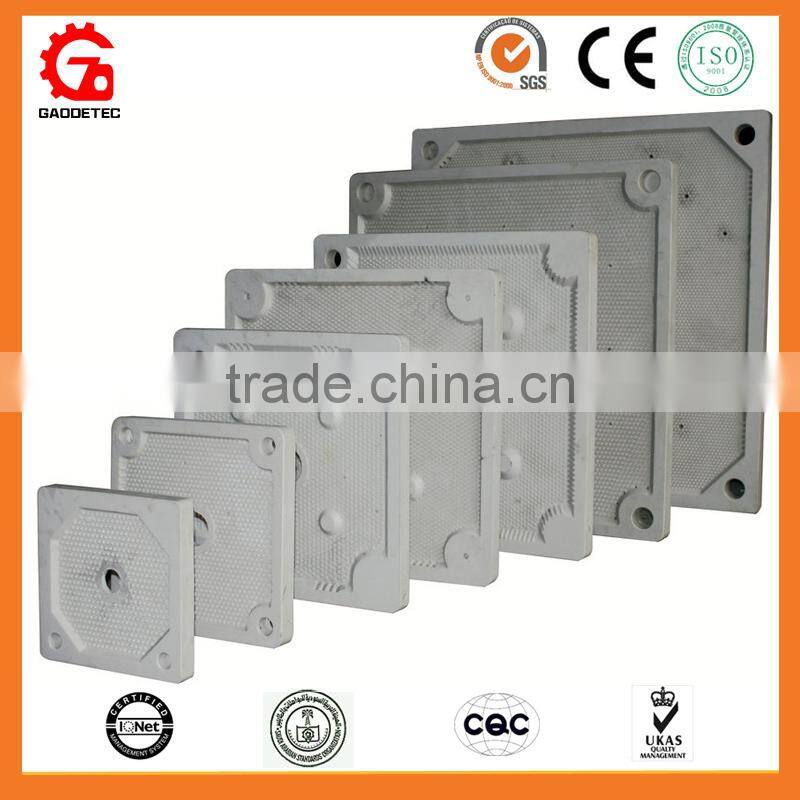

Filter Plate of small mechanical filter press  :

Filter Press Detection of small mechanical filter press    :

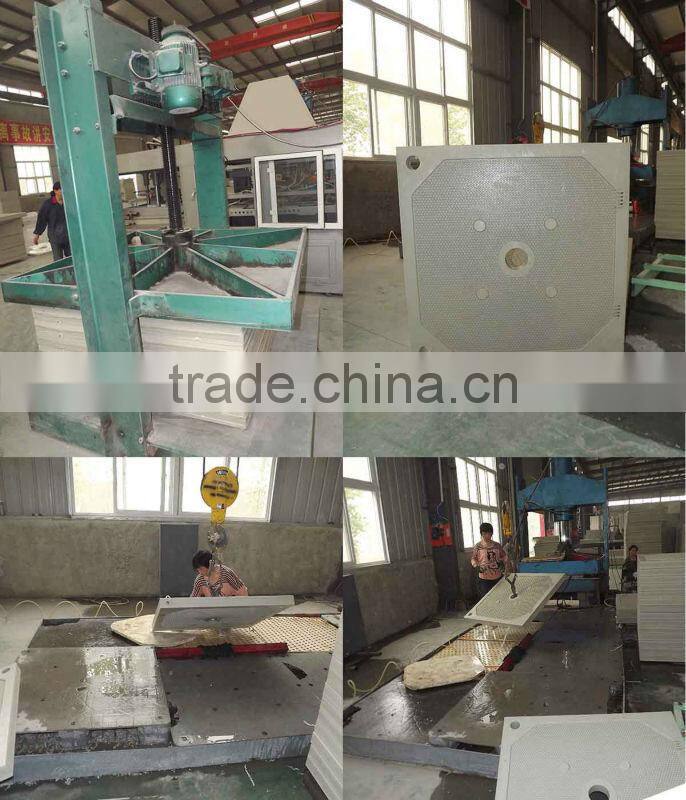

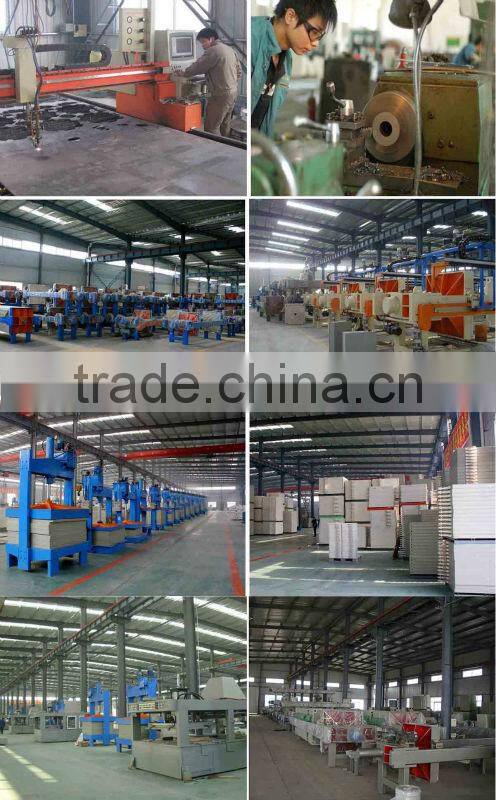

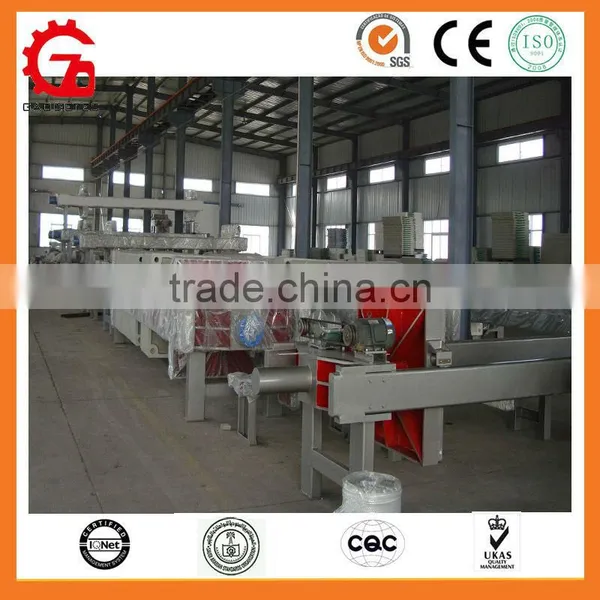

Workshop of small mechanical filter press   :

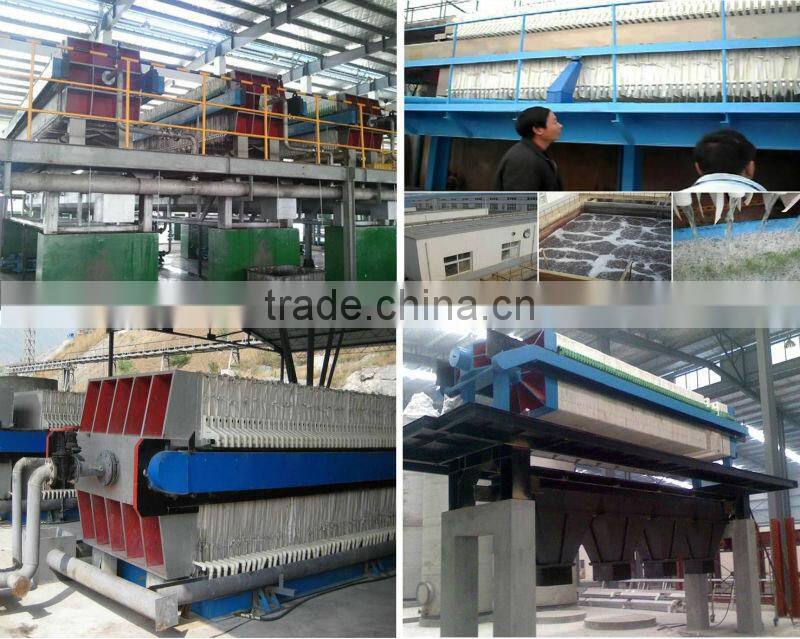

Worksite of small mechanical filter press :
