Vacuum Belt Filter Press

in containers and as customer's requirement.

Specifications

Vacuum Belt Filter Press

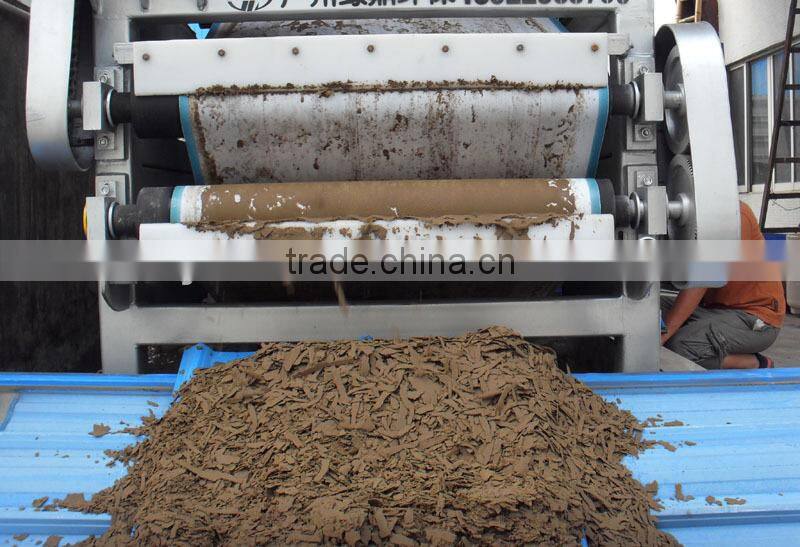

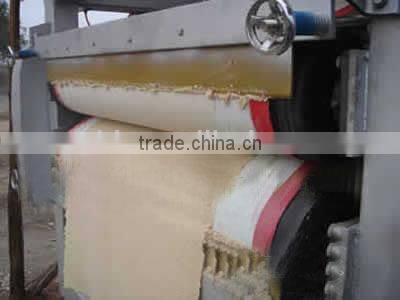

It can press and dewater the SS and precipitate which come from air flotation.

Vacuum Belt Filter Press

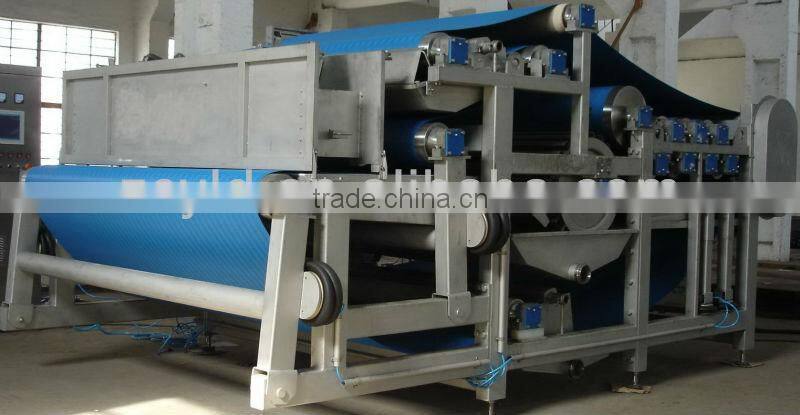

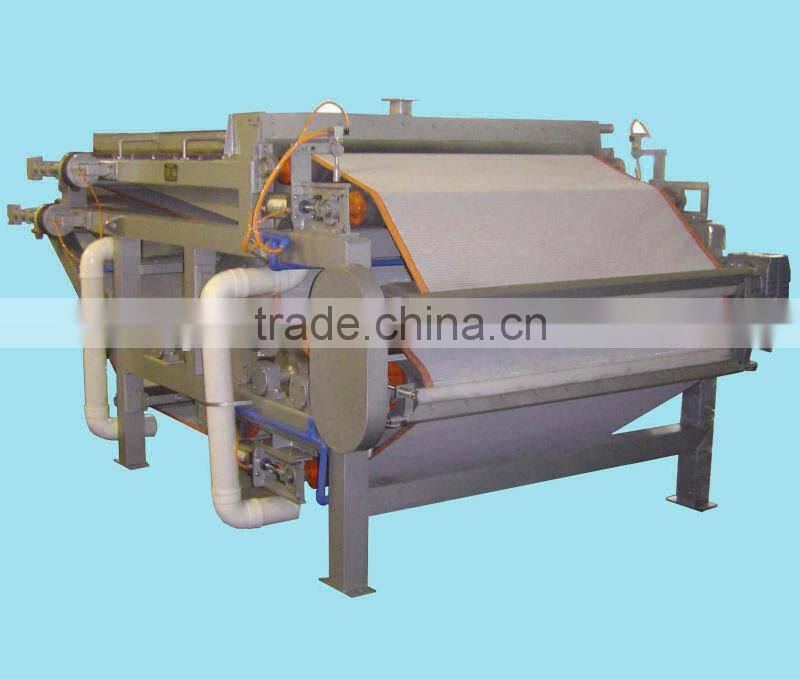

HYL Series Belt Type Filter Press





Using foreign advanced technology, the filter press is good treatment capacity, high dewatering efficiency, long using life. It can press and dewater the SS and precipitate which come from air flotation to be the sludge-plate in time, so that there is no twice pollution.



It also can be used for pulp material concentration and black-liquid collection.





Model	Capacity m3/hr	Motor Power Kw	Air compressor Power Kw	Belt Width mm	Inlet Pulp Consistency %	Outlet Pulp Consistency %	Length mm	Width mm	Height mm
HYL500	0.5-4	0.75	1.1	500	3-8	25-40	4290	900	1840
HYL1000	3-6.5	1.5	2.2	1000	3-8	25-40	4790	1400	2040
HYL1500	4-9.5	1.5	3	1500	3-8	25-40	4790	1900	2040
HYL2000	5-13	2.2	4	2000	3-8	25-40	4790	2400	2040
HYL2500	7-15	4	5.5	2500	3-8	25-40	5300	2900	2250
HYL3000	8-20	5.5	5.5	3000	3-8	25-40	5300	3400	2250
HYL4000	12-30	7.5	7.5	4000	3-8	25-40	5800	4400	2250







What we can service
1.Pre-sales Service

--General technical advice and business consultation.
--Suitable scheme and equipment as order.
--Designing as special requirement.

--Complete plan with technology and production line equipment.

2. After-sales Service

--One year warranty.

--Inspecting equipments in every working procedure.

--Assisting foundation construction.
--Dispatching engineer to install and debug.
--Training the first-line worker on site;
--Visiting clients and solving production problem.
--Life-long maintenance service.
--Technical exchanging.

Zhucheng Yonglida Machinery Limited Company is located in Zhucheng city, Shandong province, China and founded in 1993 covering an area of 30,000 square meters. It is the high technology factory combined with design, development, production and technical service and leads the papermaking equipment and environmental protection equipment industry in China.

Main products: Toilet paper making machine, cardboard paper making machine, corrugated paper making machine, craft papermaking machine, environmental protection equipment, daily and city waste water and daily garbage treatment equipment, industry waste water and garbage treatment equipment, paper making, printing, starch, medical and mine industry waste water treatment equipment, etc.

Yonglida has operated several papermaking system and environment protection project domestic and foreign, including Russia, Egypt middle east, etc. We can also make the proper project plan as customer’s requirement.

Welcome to visit our factory, hope we could have a long cooperation relationship and business win win.
