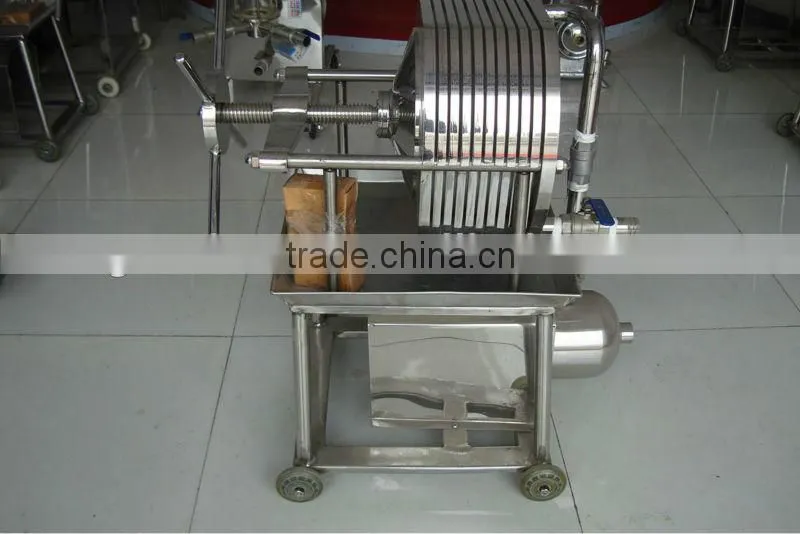

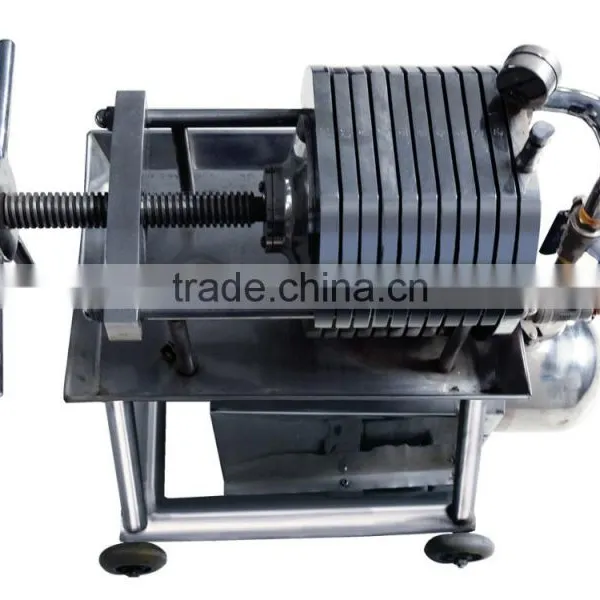

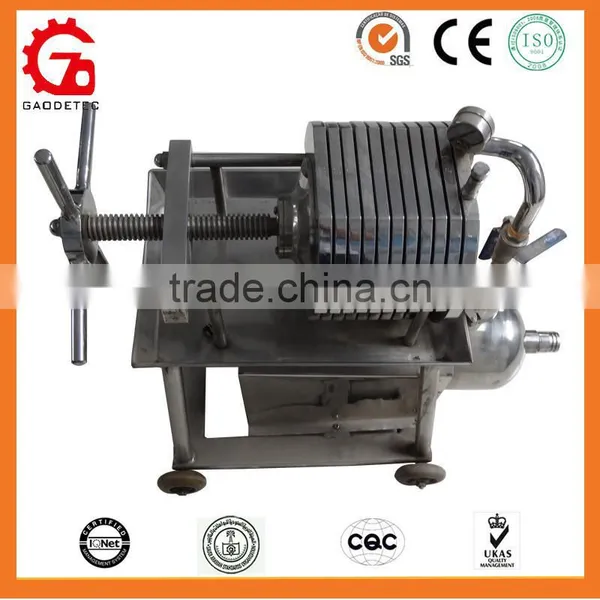

Small Manual Multi-Layer Stainless Steel Frame Filter Press For Laboratory

Small Manual Multi-Layer Stainless Steel Frame Filter Press For Laboratory

Manual filter press of operation principle:

The suspended solution is pumped into filter chamber, under the feeding pressure, the filtrate passs through the filter media and then discharged from the outlet. The solid will becomes to filter cakes. Thus realize solid liquid separation.

Features of manual filter press :

The filter is made of S.S.304 or S.S.316L, which are features of corrosion-resistant and long life-span. The filter plates use screw thread structure. It can change filtering media(if uses filter membrane, it can even remove the bacteria.) according to yout material and your technical requirements ( primary filtration/medial fine filtration/fine filtration). The layers can be added or decreased to your actual capacity. The filter works under pressure with leakage and the filtrate is very clean. It can be used as multievel filtering devices: the first level uses rough filtering media; the second level can use fine medias, so that it can improve the filtering effect and efficiency.  All seals are made of silica rubber, which can endure high temperature and no toxicity, no leakage. The automatic flow returning device also can be customized according to your needs. When pump stops, open the return valve, all sediment will be discharged automatically ( beside have the air discharging function), and at the same time, it will be backwashed by clean water via the return pipe. It's very easy for operation.

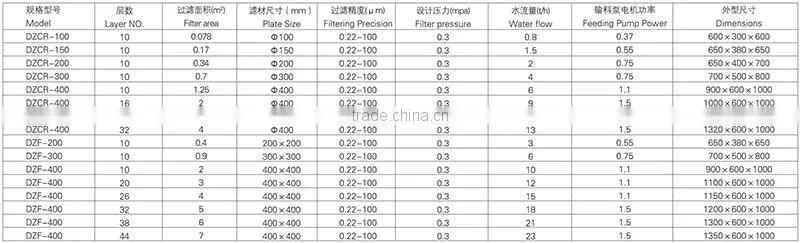

Techincal data of manual filter press:

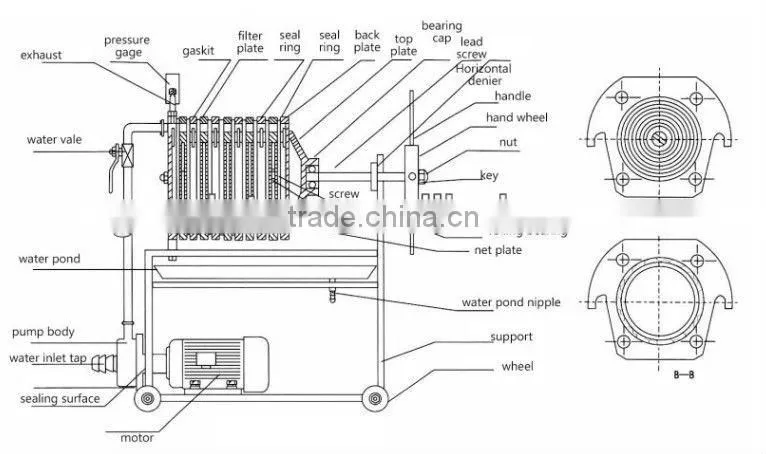

Manual filter press structure:

Note :

1. Large flow can be customized ;

2. Pressure pump to be explosion-proof motor and Grundfos pumps up the difference .

Manual filter press Application :

 S.S. Multilayer Filter is for fine filtering. It's surface is polished, has seals, and normally used together with S.S. feeding pump,  it's normally uesd for following industries: laboratory, fine chemicals, medicine, food, chemical etc..

Our Factory of manual filter press :

Trade assurance advantages:

1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.

We are a member of trade assurance on Alibaba, and our trade assurance amount is USD72000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.

Our certification of manual filter press:

 In order to supply a more suitable filter press for you, please make us clear about your requirements:

1.what is raw material?
2.what is solid content? (%)
3.what is your local voltage?(customized for you requirement)
4.what is output (t/h)
