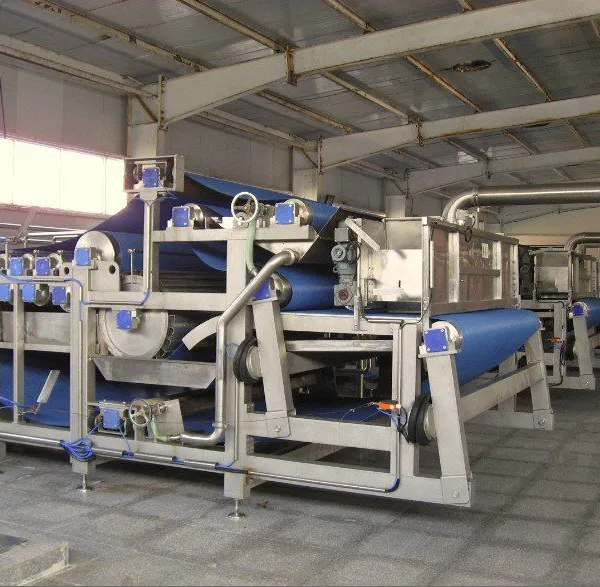

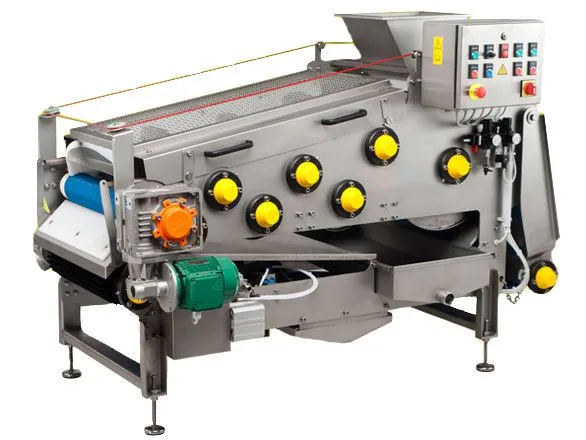

Industrial belt type juice extractor
1.Product Article No. & Name
Article No:Belt extractor
Model:GY
2.Application
It's using in extracting juice for tomato pineapple apple orange,and vegetables.
3.Structure & principle
It is widely used in solid and liquid separation process of the half end product in VC project,
alcohol project and brewing, starch, and feedstuff, and industrial polluted water and salted
dished salt removing projects. It works automatically and continuously. The aerocyst controls
inflating bags, revision,
And adding pressure. The cleaning water is filtered by an angle net sterilizer and can be
recirculated.
4.Characteristics of juice extractor
1.Industrial jucing machine, high juicing rate(78%), Good test.
2. Stainless steel, sutiable for food hygienic standards.
3. Accessories are all the famous brand.
4. Easy to operate, toch screen control, simple, effective.
5. Full auto CIP cleaning system, no need person to operate.
ntinuous automatic working, the airbag control filter belt correction, pressure,
variable frequency speed regulation.
5.Technical Data of juice extractor
|
No. |
Item |
Specification |
|
1 |
Active reduction motor |
Power: 0.75KW Voltage: 380V Reduction ratio: 200 |
|
2 |
Clean reduction motor |
Power: 0.18KW Voltage: 380V Reduction ratio: 40 |
|
3 |
Cylinder |
ACP100*60B |
|
4 |
Mechanical valve |
TH-5-1/4B |
|
5 |
Bearing |
UCFC206 |
|
6 |
Airbag cylinder |
M31102 |
|
7 |
Air cleaner |
GFR30008AJC3 |
6. Characteristics:
1.The machine is used in fruit and vegetable pressing with high juicing rate.
2. Widely used in VC project,engineering,and brewing of alcohol,starch,feed and others semi-finished products of solid liquid separation mining,but can also used in industrial wastewater treatment,water desalination mustard and other working conditions;
3. All stainless steel,in line with food hygiene standards;
4. Accessory devices are used mainly foreign brand-name products,stable and reliable;
5. Continuous automatic working,airbag control up with,correction,pressure,frequency control;
6. Fully automatic CIP cleaning system,without manual operation,convinent;
7. Control system with touch screen operation,intuitive interface,simple and efficient;
8. Energy saving,to recycle clean water from the arc network with filters.
9. Depending on operating conditions,there are three kinds of cleaning pumps available,vertical multi-stage pump,single screw pump and centrifugal pump.
7. Equipment scope:
This type of belt squeeze extractor is based on advanced foreign technology.Developed by many technical experts of the domestic industry.This dewater equipment posses the 90’s advanced international level,which is mainly used for fruit juice extraction,particularly applicable to berry,kernel fruit and vegetable juicing.The product capacity reaches 20 ton per hour.The advantages are high juice rate,low energy and simple operation.It is one of the most ideal squeezing machine for large and medium-sized fruit juice factory.
The machine is a new efficient and continuous operation of solid-liquid separation equipment.
In addition to the fruit juice industry,it is also used in the city sewage treatment plant, water plant, paper, leather, printing and dyeing, slaughter, petrochemical, pharmaceutical, metallurgical materials, brewing,food and other industry wastewater sludge dewatering.
