Best Selling Program Controlled Automatic Chamber Filter Press Price

Best selling program controlled automatic chamber filter press price

Structure and operating principle:

1. Filter press consist of frame ,filter plate ,pressing system(manual , mechanical or hydraulic ) and electric control cabinet;

2. Frame consists of base , push plate and girder and supports the pressing device and filter plates .

3. Filter plates are installed on girder between tail plate and push plate , with filter cloth sandwiched in them.

4. In operation , the pressing device(cylinder piston rod or screw ) drives the push plate to press the filter plates and filter cloth between push plate and tail plate . Filter chambers are formed between pressed filter plates and material get in to The filter chambers through the feeding port in tail plate . Solid particles are trapped in filter chambers form into cakes , while liquid is discharged out of the tail Plate . In similar manner ,to drying the press cakes , compressed air can be introduced through the washing port .

5. Plate and frame type filter-Press is the same as recessed plate filter press in structure ,except the filtering part that consists of one plate , one frame and filter cloth ,with filter chamber between plate and frame;

6. Liquid stream of filter press can be divided into exeternal stream and internal stream . exeternal stream refers to that the filtrate is discharged directly from outlet port of filter plate; internal stream refers to that the filtrate from various filter plate is collected before being discharged out of the filtrate port .

Automatic chamber/recessed filter press use micro computer processor, PLC and touch screen to control every part’s actions, such as: cylinder, plate shifter, cloth washing etc. , and remote control ports are left.

High efficiency filter press expended the length of cylinder and can discharge several cakes every time. The advantages : stable performance, high efficiency and lower running cost.

The fast open system can increase the cake discharging efficiency 3-6 times, especially for the filter press that have a large quantity of plates and need frequent operations.

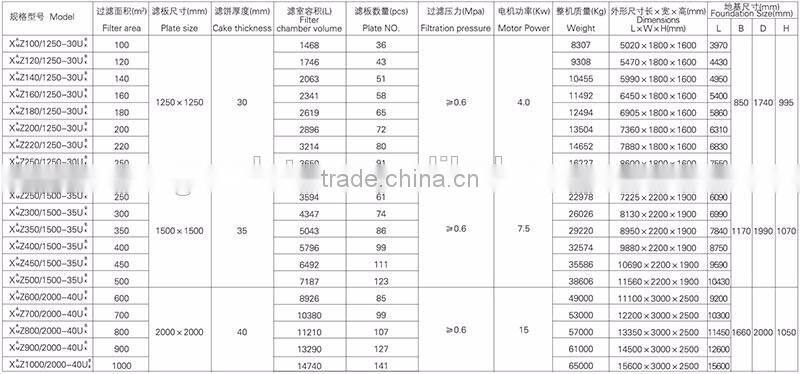

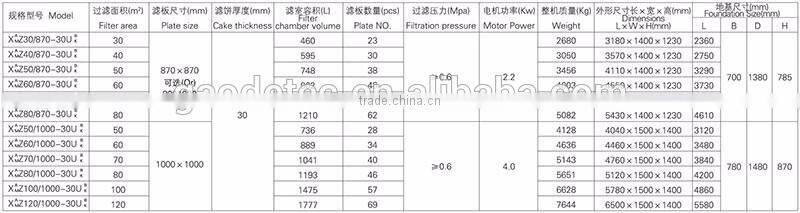

Technical data of program controlled automatic filter press by auto dwelling:

Hydraulic station used in program controlled automatic filter press:

Electric control box of program controlled automatic filter press machine:

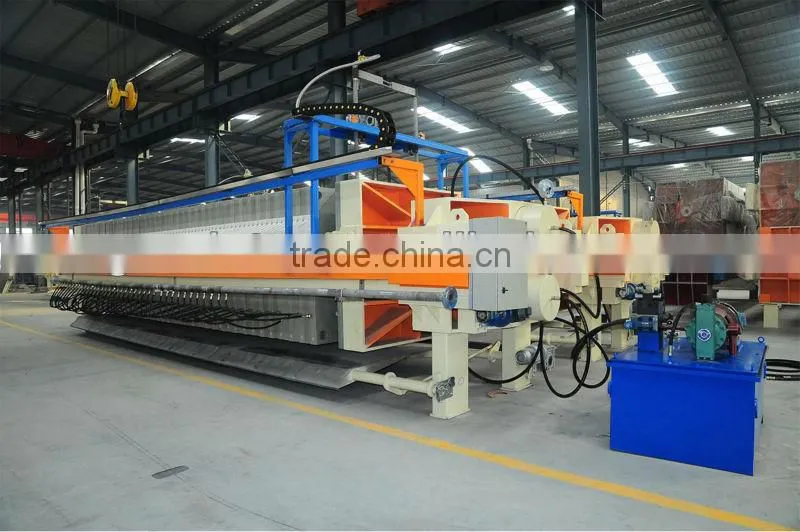

Program controlled automatic filter press details:

Filter plate of program controlled automatic Filter Press:

 Filter Plate Pressure Detection:

Our workshop of program controlled automatic filter press:

Program controlled automatic filter press at Worksite:

Our Cetification of program controlled automatic filter press:

 If have any interests, pls feel free to contact me!
