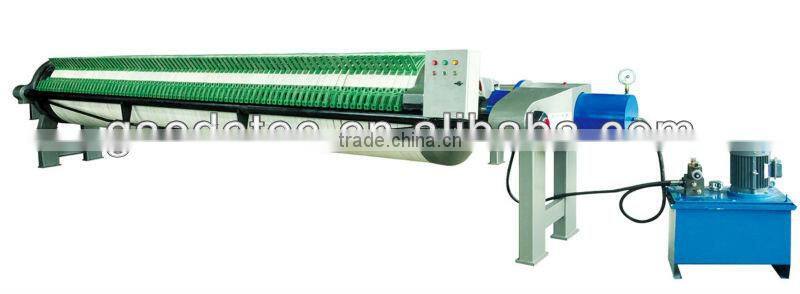

Ceramics Industry Circular Frame Kaolin Filter Press With CE Certificate

US$ 5,000 - 50,000 MOQ: 1 Set

Key Specifications

Condition:

New

Automatic Grade:

Automatic

Production Capacity:

100ton

Zhengzhou Gaode Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or other

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Automatic Grade Automatic

Production Capacity 100ton

Place of Origin Henan, China

Brand Name GEC

Model Number XAMSeries

Voltage 380V or as your request

Power(W) 4.0Kw

Weight 3346kg

Dimension(L*W*H) 3300*1100*1060mm

Certification ISO9001&CE

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Ceramics Industry Circular Frame Kaolin Filter Press With CE Certificate

Product Description

Circular Frame Kaolin Filter Press

Structure and operating principle

Filter press consist of frame ,filter plate ,pressing system(manual , mechanical or hydraulic ) and electric control cabinet .
Frame consists of base , push plate and girder and supports the pressing device and filter plates .
Filter plates are installed on girder between tail plate and push plate , with filter cloth sandwiched in them.
In operation , the pressing device(cylinder piston rod or screw ) drives the push plate to press the filter plates and filter cloth between push plate and tail plate . Filter chambers are formed between pressed filter plates and material get in to The filter chambers through the feeding port in tail plate . Solid particles are trapped in filter chambers form into cakes , while liquid is discharged out of the tail Plate . In similar manner ,to drying the press cakes , compressed air can be introduced through the washing port .
Plate and frame type filter-Press is the same as recessed plate filter press in structure ,except the filtering part that consists of one plate , one frame and filter cloth ,with filter chamber between plate and frame.
Liquid stream of filter press can be divided into exeternal stream and internal stream . exeternal streamrefers to that the filtrate is discharged directly from outlet port of filter plate; internal stream refers to that the filtrate from various filter plate is collected before being discharged out of the filtrate port .

Application of our Kaolin Filter Press :

Used for stone wastewater, ceramics, kaolin soil and construction material etc. The cake moisture is very low.

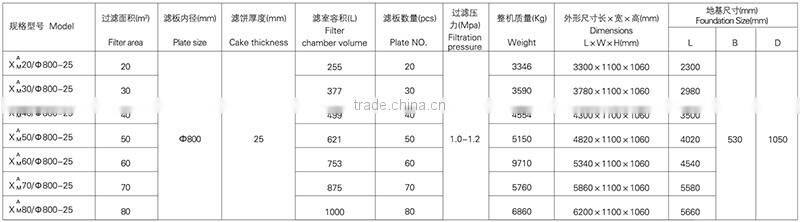

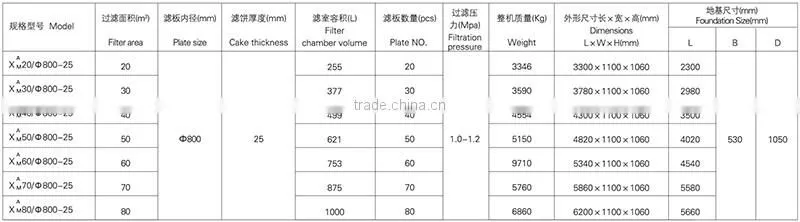

Technical data of Kaolin Filter Press by auto dwelling :

Kaolin Filter Press industrial art specification :

Hydraulic station used in Kaolin Filter Press :

Electric control box in Kaolin Filter Press :

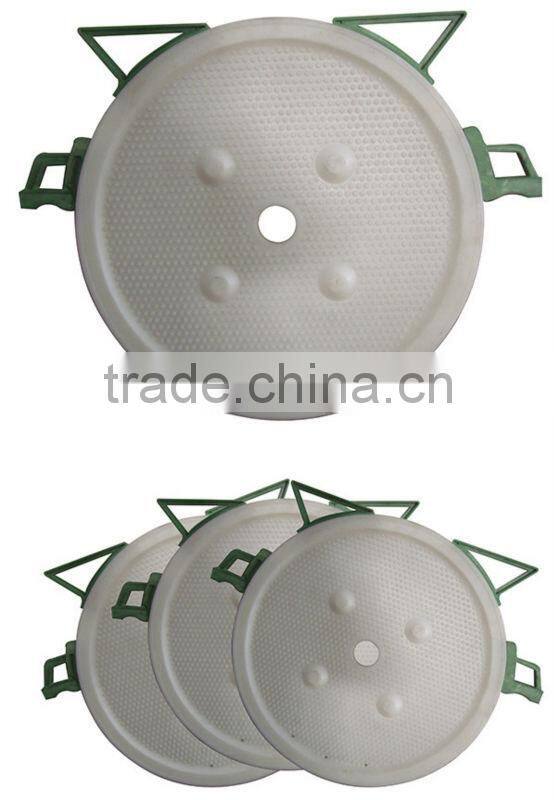

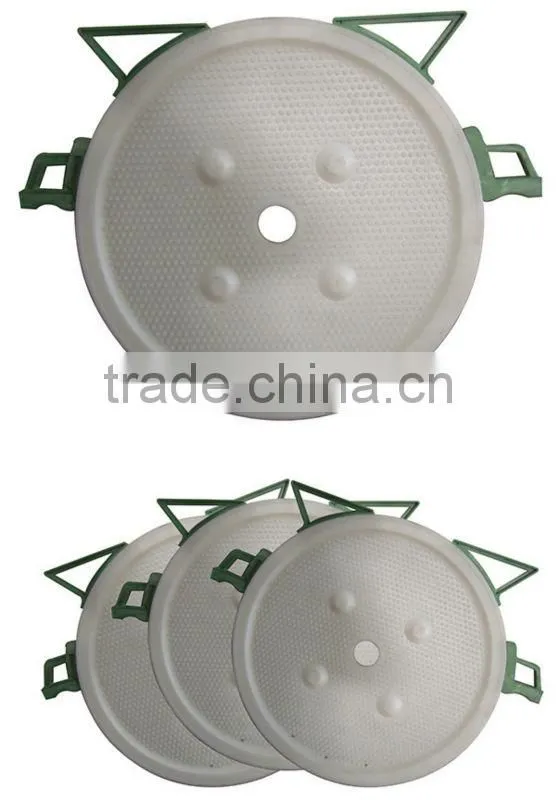

Filter plate in Kaolin Filter Press :
