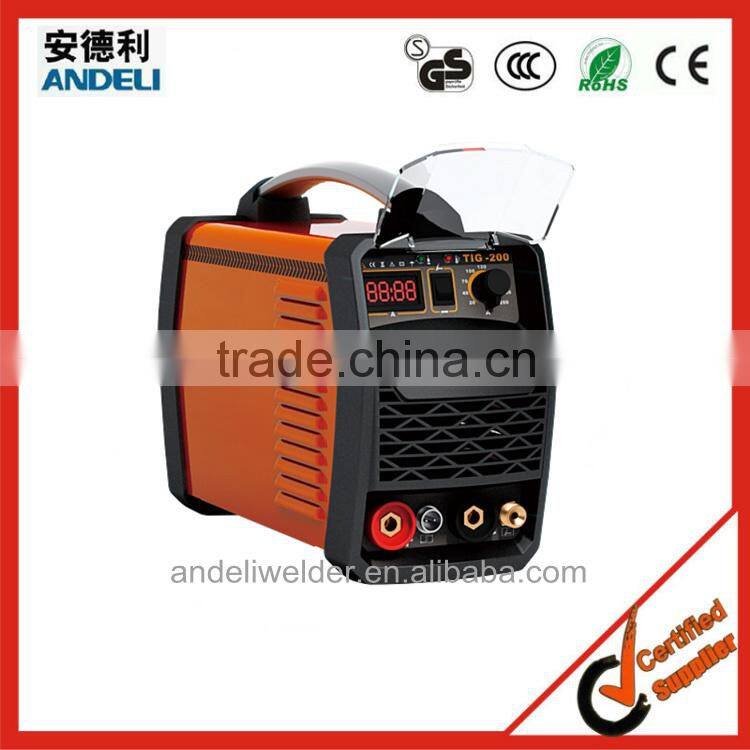

Manufacturer supply TIG welding machine IGBT DC Inverter Chinese TIG Welder with TIG/MMA function
- 5000 Piece / Pieces per Month
- FOB NingBo/ShangHai
- T/T Credit Card
- AITOP 5000A/8000A Li ion 18650 32650 Battery 5000A 8000A Mini Pneumatic Aluminum Laser Point Spot Welder Welding Machine For Lithium Cell
- Miller MigMatic S400i Synergic MIG Welder 415V Engine Welder
- DX450 Diesel Engine Welder
- Drill stabilizer hardbanding machine
- Movavle hardbanding machine
- Hardbanding welding machine
Product Details
Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | Andeli |
Model Number: | tig 200 | Arc Current: | 200a | Pulse Frequency: | 20KHz |
Pilot Arc Current: | 20-200a | Rated Duty Cycle: | 60% | Motor Type: | DC Motor |
Dimensions: | 428*228*226 | Usage: | for steel materials welding | Voltage: | 1ph 220V |
Power(W): | 5.7KVA | Certification: | CE,QVC,EMC,LVD | Warranty: | 1 years |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
TIG welding machine (TIG/MMA)TIG & MMA 2 functions
IGBT technology
portable,cheap,for advertising
CE,QVC,EMC,LVD
Manufacturer supply TIG welding machine IGBT DC Inverter Chinese TIG Welder with TIG/MMA function
1. Product Description
Model: TIG 200
A--Product Features
IGBT TYPE
1.support Tig MMA two kinds of welding
pact and portable,easy and simple to operate
3.hot striking arc current is adjustable
4.acid or electrode suit
B--Technical Details
IGBT DC Inverter Chinese Cheap tig welder (TIG/MMA) | |||

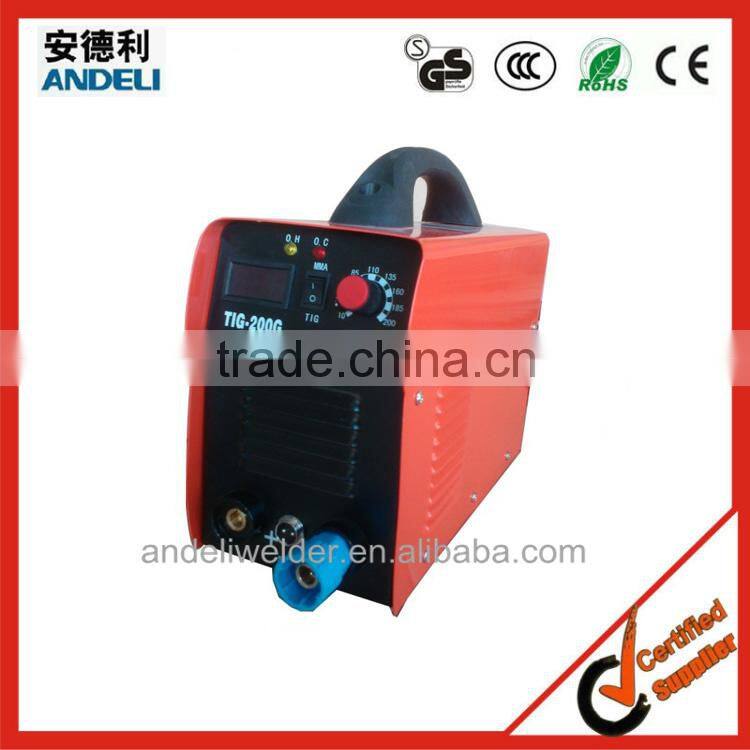

Model | TIG-180G | TIG-200G | TIG-250G |
Type | IGBT Chip | ||
Rated input voltage (V) | single phase AC220 ±15% | three phase AC380 ±15% | |
Rated frequency (Hz) | 50/60 | 50/60 | |
Rated input power (KVA) | 5 | 5.7 | 8 |
Rated input current (A) | 23 | 26 | 12 |
Rated output | 155A/26.2V | 170A/26.8V | 220A/28.8V |
Output current (A) | TIG: 20-175 MMA: 20-155 | TIG: 20-190 MMA: 20-170 | TIG: 20-220 MMA: 20-220 |
No-load voltage (V) | 56±5 | 62±5 | 62±5 |
Rated duty cycle (%) | 60 | 60 | 60 |
Efficiency (%) | 80 | 80 | 80 |
Power factor | 0.7 | 0.7 | 0.7 |
Protection grade | IP21 | IP21 | IP21 |
Insulation grade | F | F | F |
Net weight (KG) | 5.5 | 6.4 | 20 |
Gross weight (KG) | 8.4 | 9.3 | 22 |
Housing of machine | iron | iron | |
Dimension of machine (mm) | 335×120×200 | 480×200×375 | |
Dimension of packing 1V1 (mm) | 428×228×226 | 472×237×336 | |
Dimension of packing 4V1 (mm) | 475×445×485 | — | |
plastic box with complete accessories is optional |

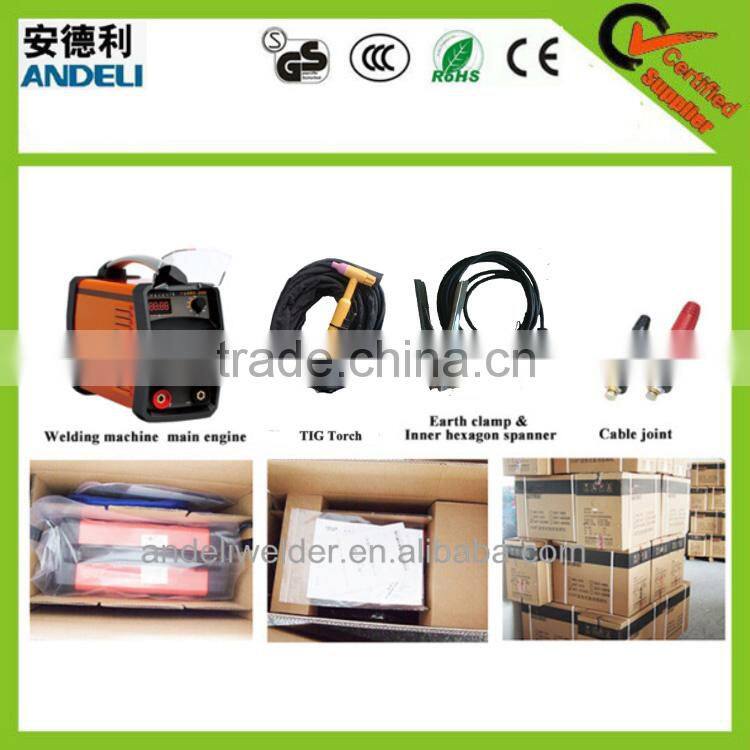

2.Products ShowCase
3.Packaging & Shipping
Including Accessories: earth clamp×1pcs, cable joint×2pcs, inner hexagon spanner×1pcs, grounding cable×3meters, TIG torch×1set (QQ150 for TIG-180G/200G, WP-26 for TIG-250G)
4.Company Information
Why choose us? |
1. 20 years - Andeli Group Co.,Ltd is founded in 1993. |
ANDELI Welder selling NO.1 on (chinese biggest B2C website)
5.FAQ
Skype:georgelin110
Thanks for your time,Feedback in 24 hours when Inquiry,Even in weekend!
