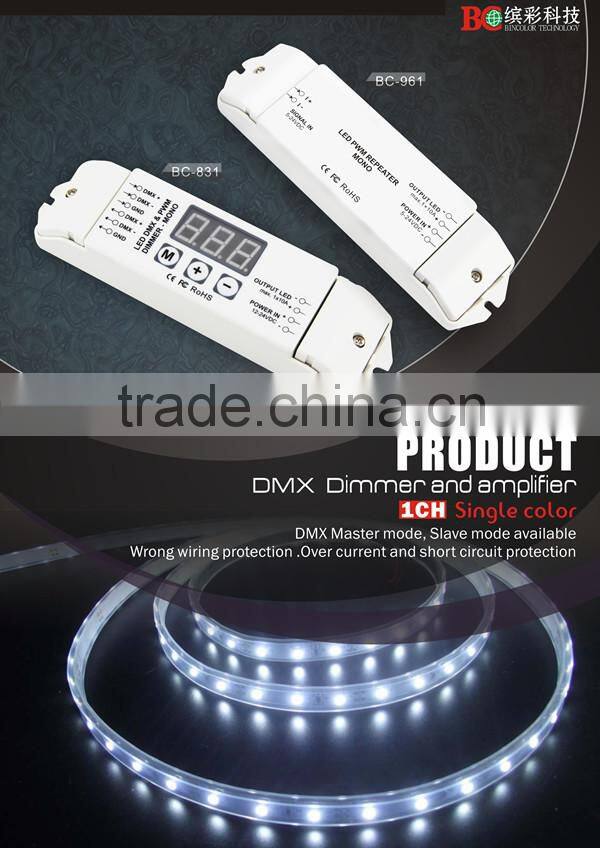

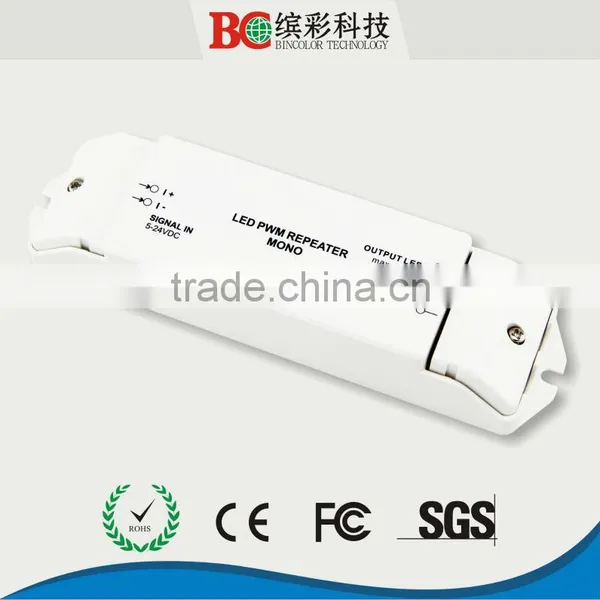

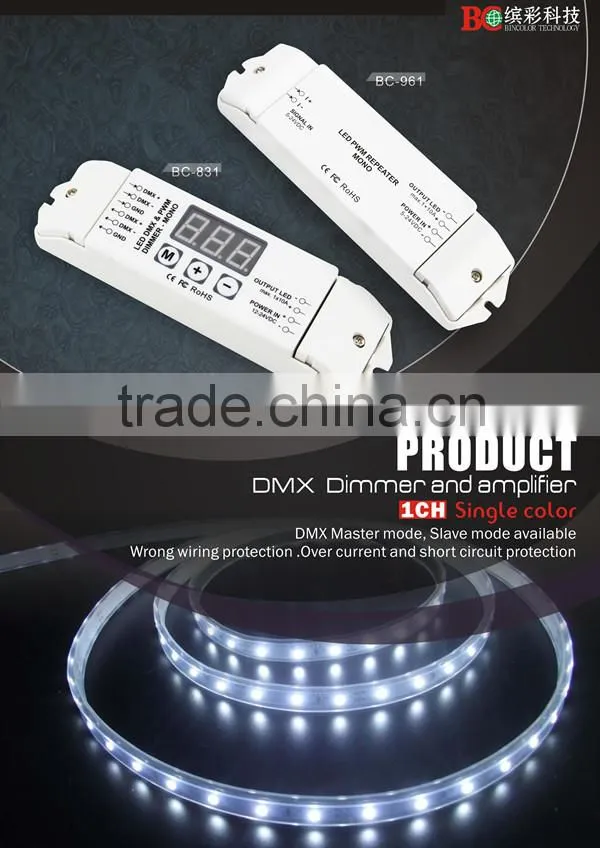

best selling hot chinese product led volt power amplifier 5V-24V
Introduction:
LED Power Repeater is suitable for all of our company's power-output style controllers’ power expansion, it accepts PWM control, unlimited quantity of power repeater to be connected theoretically. Also, the power repeater of constant voltage model and constant current model could be connected freely, suitable for synchronized controlling on different LED lamps.
Product parameter:
Model |
BC-961 |
Input voltage |
DC5V-DC24V |
Max Load Current |
10A×1/CH |
Output signal |
Constant voltage PWM |
Max output power |
50W(5V)120W(12V)240W(24V) |
Product Dimension |
L176×W46×H30(mm) |
Package Size |
L178×W48×H35(mm) |
Gross Weight |
120g |
Product Dimension:

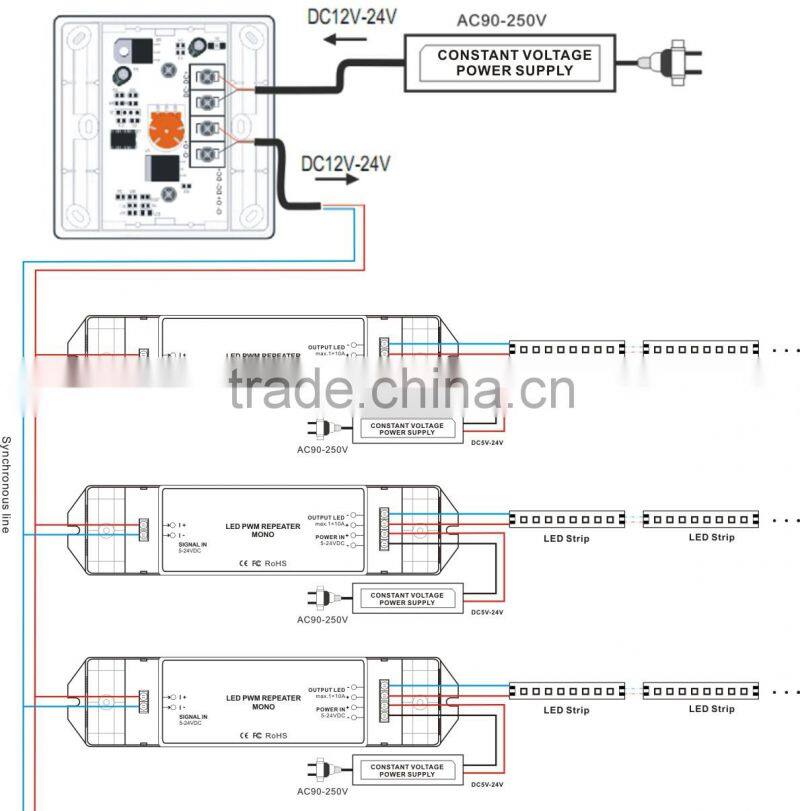

Ciruit diagram:
Feature function:
1. Common anode input and output.
2. Sustain high frequency common anode PWM input signal.
3. Work with RGB controller, DMX512 decoder, LED dimmer for synchronous control, to fulfill abundant color changings.
4. Power loss memory function.Overcurrent protection, short circuit protection.
1. Packaging:
After inspection the goods are packed in inner box and then carefully packed in cartons.
2. Shipping:
We will deliver goods by EMS/DHL/FEDEX/UPS and so on, it will takes around 5-7 working days to
arrived.
1. Our products meet international standards. OEM and ODM orders are welcome.
2. For first coopertion, welcome to buy sample to test quality, and we don't require MOQ for
sample, any quantity is available.
3. All products have 3 years warranty.
