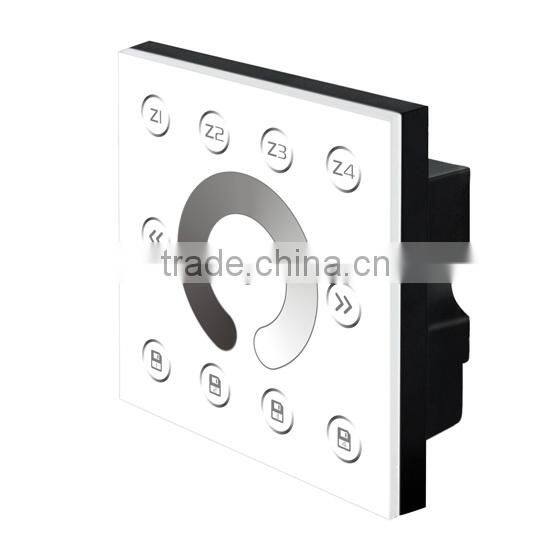

Bincolor P5 AC85-265V single color multizone led dim touch panel dmx dimmer controller
This P series touch panel controller is consist of Multi-zone series and Single zone series, it is wildly used for commercial/office/household lighting, workable for dimming, color temperature, RGB and RGBW control. P5, P6, P7 and P8 are DMX512 control panels, used for DMX512 lamps; P series could satisfy the controlling demand for all kinds of LED lighting products.
Specification :
Model |
P5 Dim Panel |
Input Voltage |
AC85V-265V |
Output Signal |
DMX512 4 Channel |
Dimming Range |
5%-100% |
Working Temperature |
-20°C~55°C |
Dimensions |
L86×W86×H36(mm) |
Weight(N.W) |
230g |
Feature:
1,Fashionable appearance, simple operation, standard 86 style socket, easy to install and disassemble.
2, Workable for dimming, color temperature, RGB and RGBW control.
3,Output DMX512 signal(only P5, P6, P7, P8) to control the DMX equipment.
4,Support 4 zones(only P5, P6, P7, P8), can meet the requirements for different zone with different control.
5, RGB/RGBW panel controller with the 10 built-in changing modes, with 4096 grey scales per channel, led lamp is more rich and vivid without flash.

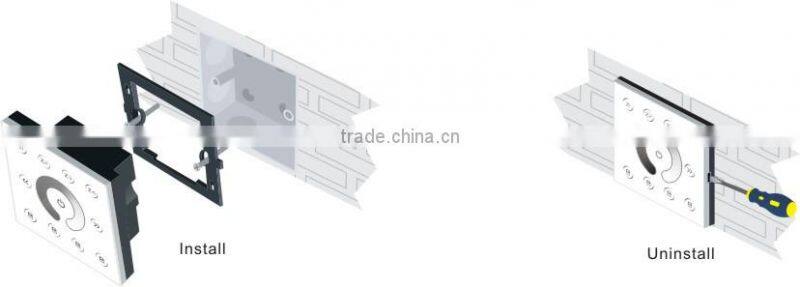

Installation:

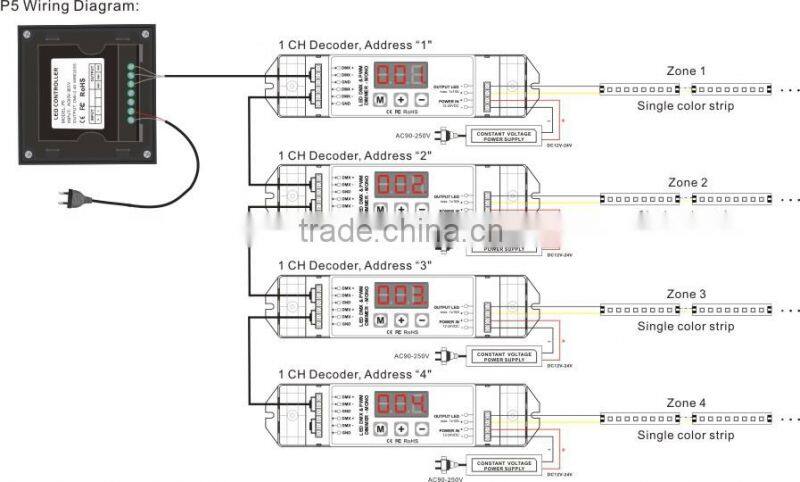

Typical Wiring Schematics:

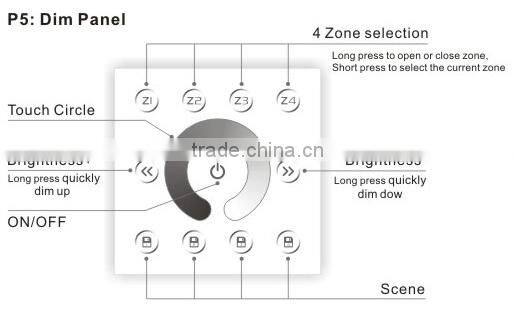

Operation Instructions:
More P series:
Single zone: P1-P4
Multi Zone: P5-P8
