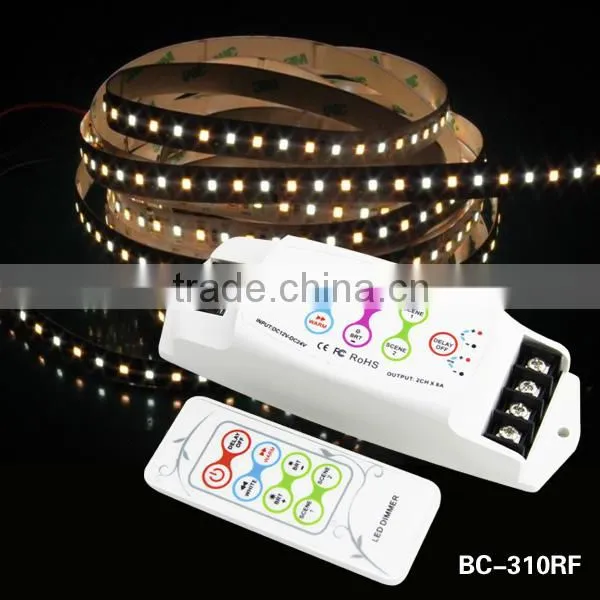

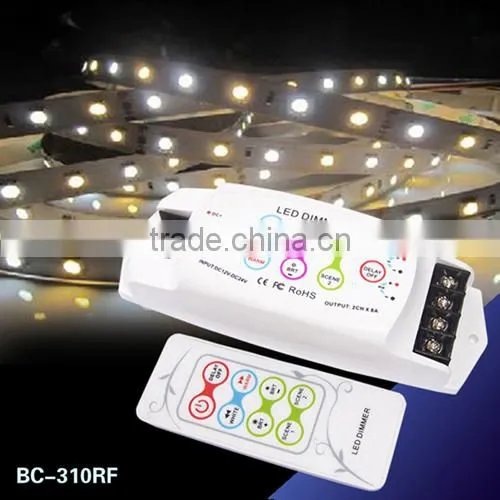

BC-310RF2 channel CT dimmer for led strip 12v 24v color temperature led strip controller
BC-310RF LED color-temperature controller adopted the most advanced PWM (Pulse-Width Modulation) digital brightness-adjusting. Changing the color temperature by adjusting two different light colors, it suits for all 2 channel LED lights.
Specification:
Model | BC-310RF |
Input Voltage | DC12V-DC24V |
Max Current Load | 8A/CH×2 |
Max Output Power | 192W(12V)/384W(24V) |
Scale Levels | 4096 LEVEL /CH×2 |
Product Dimension | L165xW56xH36 (mm) |
Package Dimension | L170×W49×H49(mm) |
Weight (G.W) | 190g |
Remote Control Distance | 30m with block,60m without block |
Warranty | 3 years |
Feature:
1.Automatically adapt to LED light which works from DC5V-24V or DC12V-24V.
2.Real 0~100% brightness adjust, 4096 scale levels. Lamplight soft and stable, without flicker, precisely control color temperatures
3.Max 8A*2CH output. Working with power repeater to expand power output unlimitedly.
4.2 DIY modes, easy to replay your favorite settings
5.Soft touch button with friendly experience.
6. Power loss memory function.

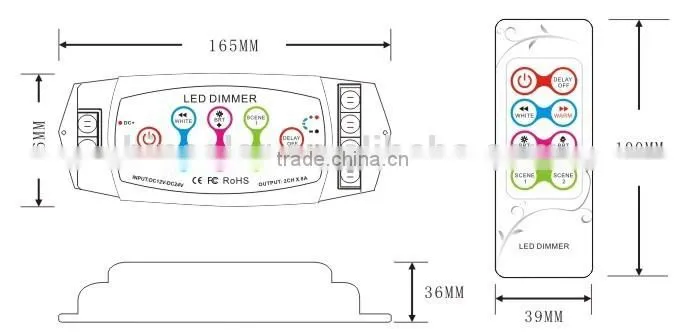

Dimension:

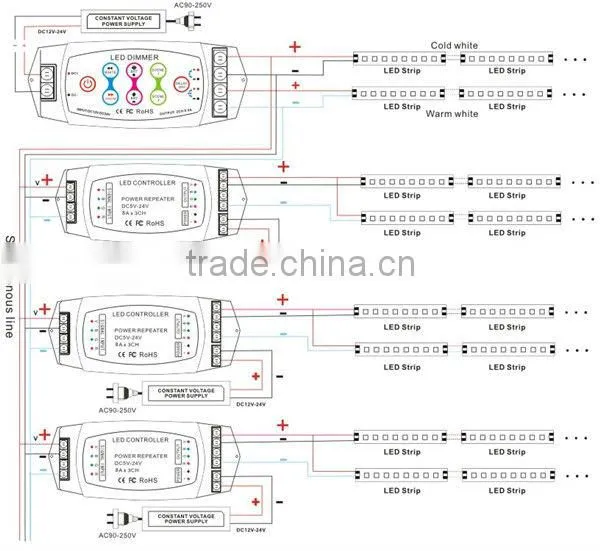

Conjunction diagram:

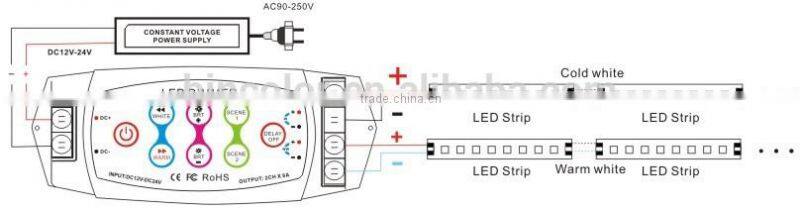

1. Controller with LED Strips

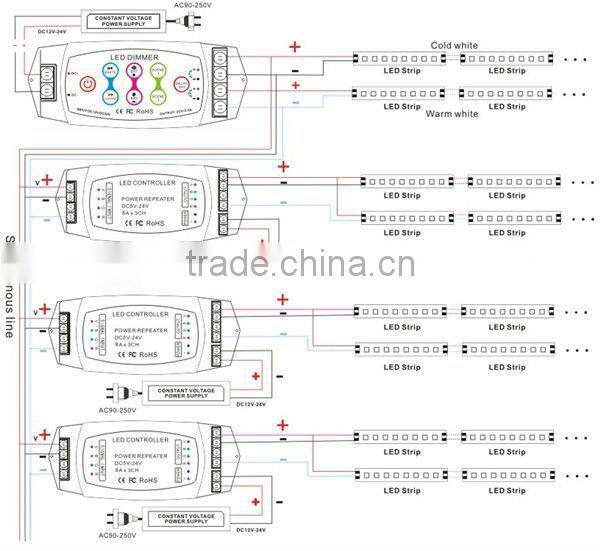

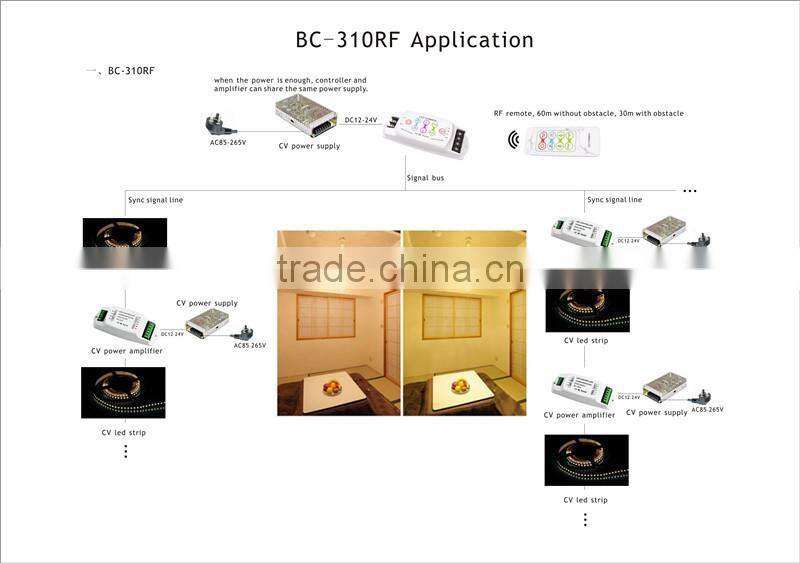

2. Connect to power reperater
