Bincolor 33 modes dmx 512 controller manual
Introduction:
Digital controller has an LCD screen, this device has three models, it can control LED lights based on different driving chips or protocols. We currently have several models of this controller differed by output signal: SPI, LPD6803, DMX512, P9813, TM1809 etc. There are 33 modes such as “ static color” “ color jumping”, “color smooth, “ color flow”, “color chasing”, “overall color changes” etc, the changing modes and the control quantity can be preset at will, the running times, the changing speed and so on can be configured and saved separately & automatically. Widely used to control LED digital tube, LED cluster, SMD flexible strip etc.
Product parameter:
Model |
BC-100 |
Input Voltage |
DC9V-12V |
Output signal |
DMX512/1990 |
Control ICs |
N/C |
Control Mode |
33 modes |
Control Qty |
170 |
Dimension |
L175xW90xH52(mm) |
Weight (G.W) |
500g |
Feature function:
1,Adopted LCD screen, easy to operate.
2,33 color changing modes, each mode’s parameter can be configured separately.
3,Auto running mode and fixed mode available, running times can be configuredseparately.
4,Auto store the parameter with power off protection.
5,LOAD DEFAULT available.
6. Power loss memory function.

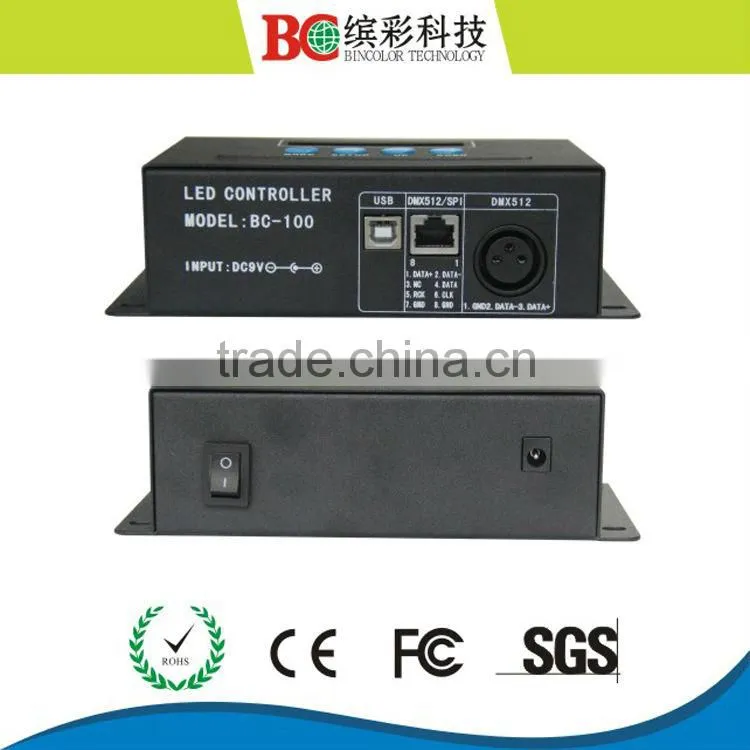

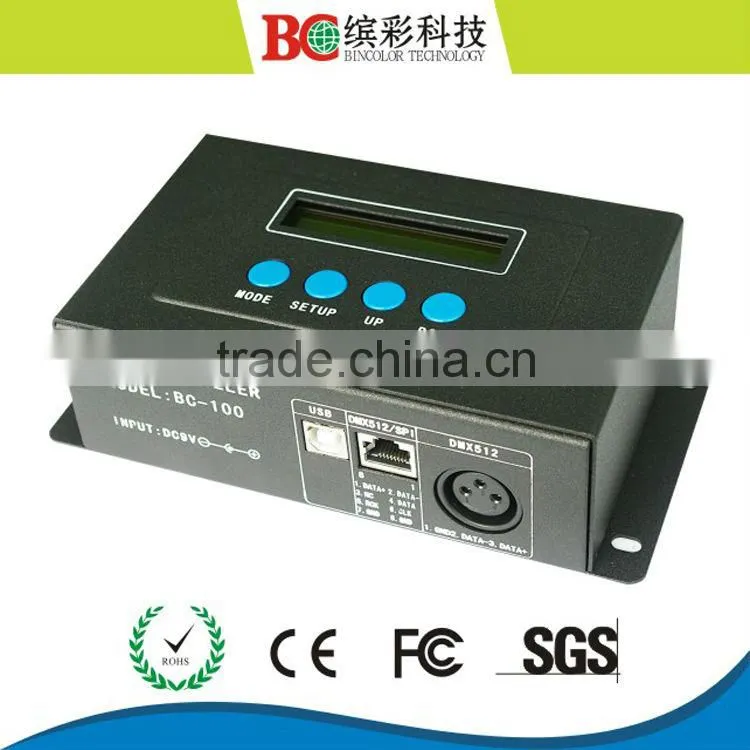

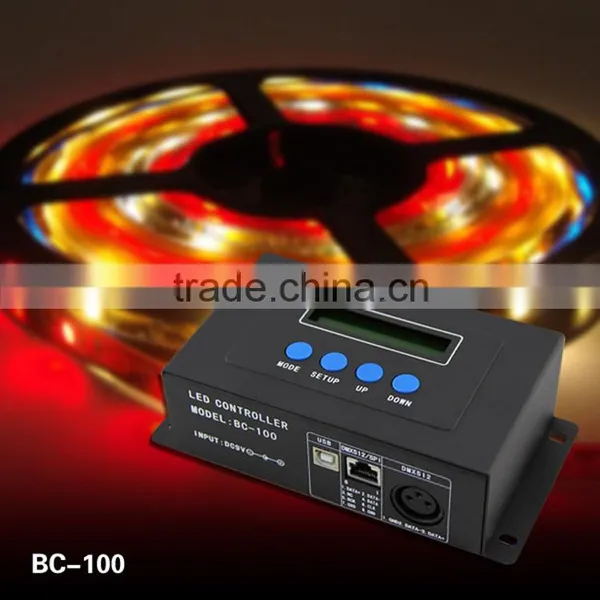

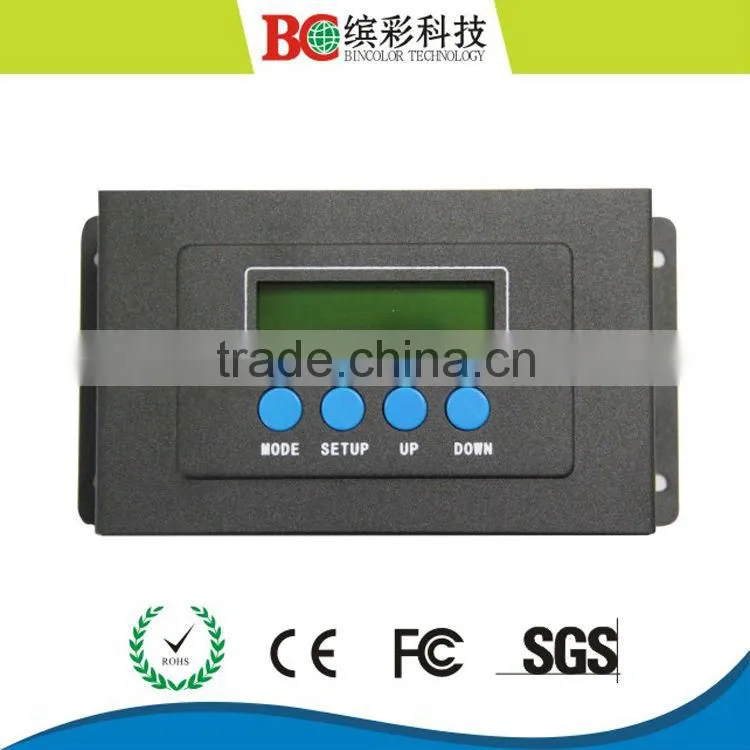

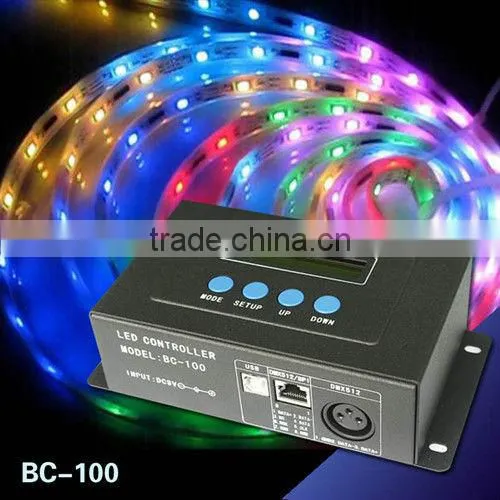

Product show :
1. Packaging:
After inspection the goods are packed in inner box and then carefully packed in cartons.
2. Shipping:
We will deliver goods by EMS/DHL/FEDEX/UPS and so on, it will takes around 5-7 working days to
arrived.
1. Our products meet international standards. OEM and ODM orders are welcome.
2. For first coopertion, welcome to buy sample to test quality, and we don't require MOQ for
sample, any quantity is available.
3. All products have 3 years warranty.
