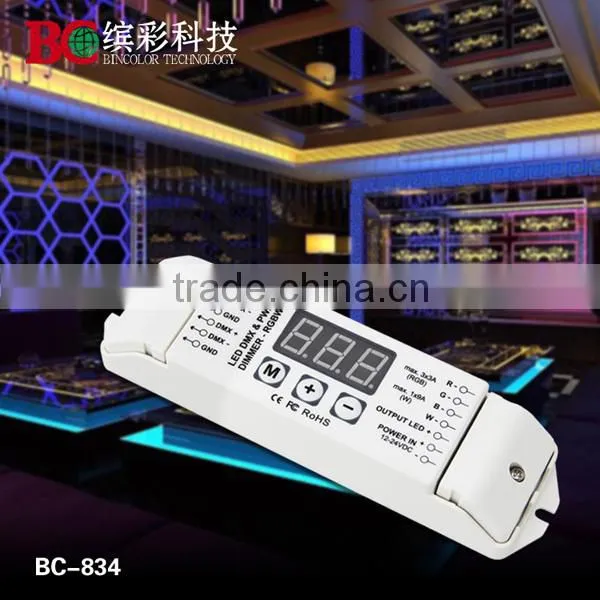

3 years warranty led RGBW DMX 512 control power decoder with master slave mode
Specification:
| Name | Value |
| Brand | Bincolor |
| Model | BC-834 |
| Production Capacity | 5000Piece/Pieces per Month |
| Input voltage | DC12V-DC24V |
Max Current Load |
rgb:3A/CH W:9A |
Max Output Power |
RGB:36W/CH W:118W(12V) RGB:72W/CH W:216W924V) |
Scale Levels |
4096 LEVEL /CH×4 |
Decode channel |
4CH |
| Certification | CE ,FCC ROSH |
| Dimension(L*W*H) | L176xW46xH30 mm |
| Weight | 152g |
| DMX 512 Socket | Terminal Block |
Feature:
1.Automatically adapts input voltage DC12V-24V.
2. Input standard DMX512 signal; 3-digital-display shows DMX address code.
3.4 channels output; 4096 grey scales each; logarithmic dimming; lamplight soft& stable without strobe flash.
4.DMX Master mode, Slave mode available.
5.8 color changing modes and 10 speed scales in master mode .
6.Indicator of the DMX512 signal receiving status.
7.Wrong wiring protection at DMX input port.Over current protection and short circuit protection.
8. Power loss memory function.
1.DMX512 Constant Voltage Decoder is developed only for constant voltage LED lamps.
2.it adopted advanced micro-computer control technology to transfer standard DMX512/1990 signal to PWM signal.
3.user can choose 1~4 output channels, 4096 Grey Scales. It can be used as DMX512 master or as DMX decoder to connect computerized digital output consol with analog silicon case and controls LED lamps of architecture and lighting.

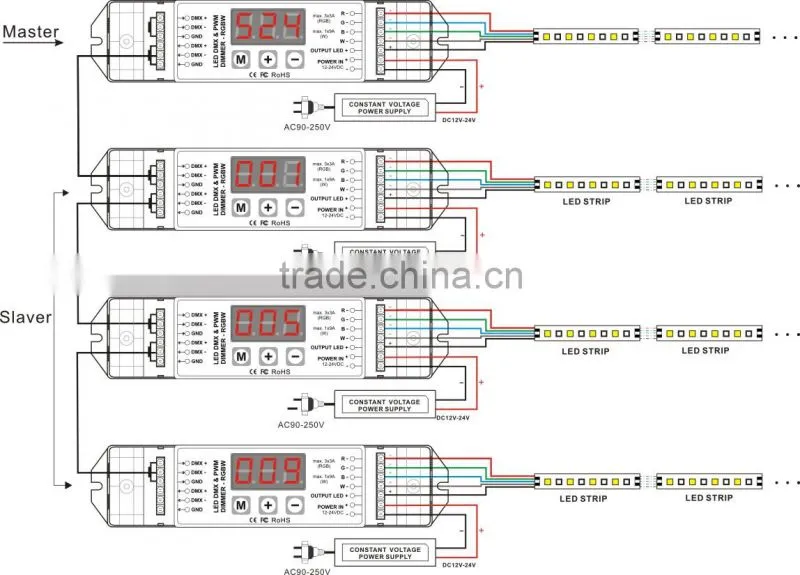

BC-834 AS A MASTER:

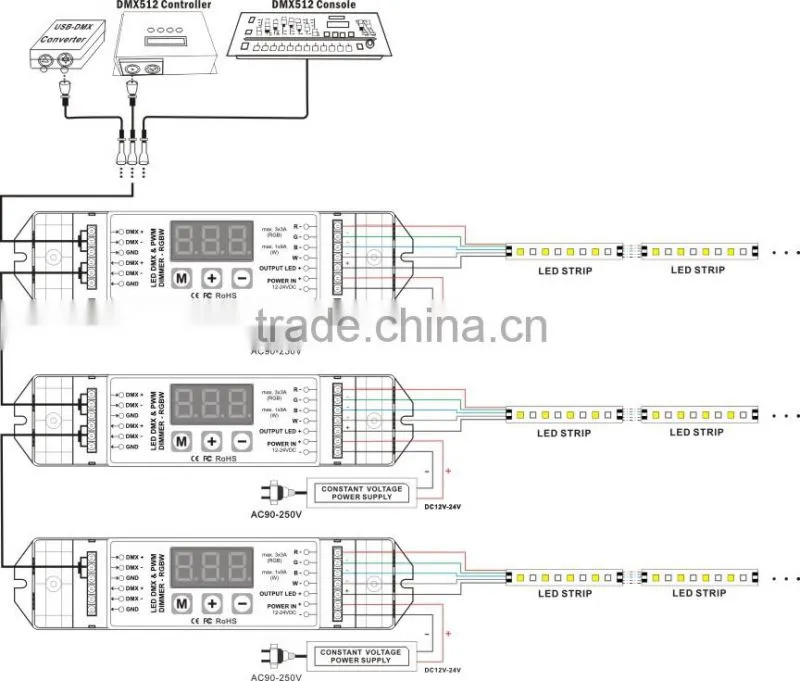

BC-834 AS A DECDER:
After inspection the goods are packed in white inner box and then carefully packed in cartons.
1. Professional advice according to your needs.
2. Instant response to your inquiries.
3. Short lead-time, quick delivery.
4. Three years warranty for all of our products.
5. Samples orders, OEM/ODM orders are also welcomed.
We are leading Manufacturer of LED controllers in Zhuhai, Guangdong province, China.
We are small, flexible and loyal. Ideal partner of your customize order.
We are strong in developing OEM and ODM projects, and customer's rights are the first things we consider about.
We are very competitive in price , well reputed for quality product and prompt delivery.
Welcome to discuss more in details.
Any question, welcome to contact me, all question will be answered within 24 hours or immediately on instant contact!
Christy Lai:
Skype: zhbincolor
M:+86-13392981925
Sample order please access to our online shop: /store/205672
