3 Channels DMX-512 Decoder Controller for RGB LED Lamp Light Multi-functional Full-color Controller
Introduction:
Welcome to use the Constant Voltage DMX512 Decoder which is developed only for constant voltage LED lamps. It adopted advanced micro-computer control technology to transfer standard DMX512/1990 signal to PWM signal. User can choose 1~3 output channels, 4096 Grey Scales. Multiple DMX512 signal interface.
Specifictaion :
Model |
3CH Decoder |
Input voltage |
DC12V-DC24V |
Max load current |
6A×3CH |
Max output power |
72W×3CH(12V)/ 144W×3CH(24V) |
Grey Scale |
4096 levels×3 |
Input Signal |
DMX512/1990 |
Output Signal |
Constant Voltage PWM×3 |
Decode Channel |
3CH |
DMX512 socket |
XLR-3R port/ RJ45 port/terminal block |

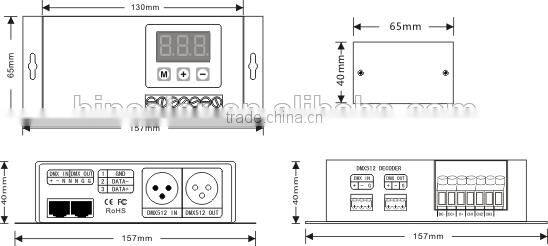

Dimension |
L157×W65×H40(mm) |
Weight (G.W) |
450g |
Feature :
1. Automatically adapts input voltage DC12V-24V.
2. Input standard DMX512 signal; 3-digital-display shows DMX address.
3. 3 channels output; 4096 grey scales each channel; logarithmic dimming; lamplight soft & stablewithout strobe flash.
4. Support master mode or slave mode;
5. 8 color changing modes and 10 speed scales in master mode .
6. Indicator of the DMX512 signal receiving status.
7. Power loss memory function.
8.Over current protection and short circuit protection.Wrong wiring protection at DMX prot.
9 .Multiple DMX512 signal interface.

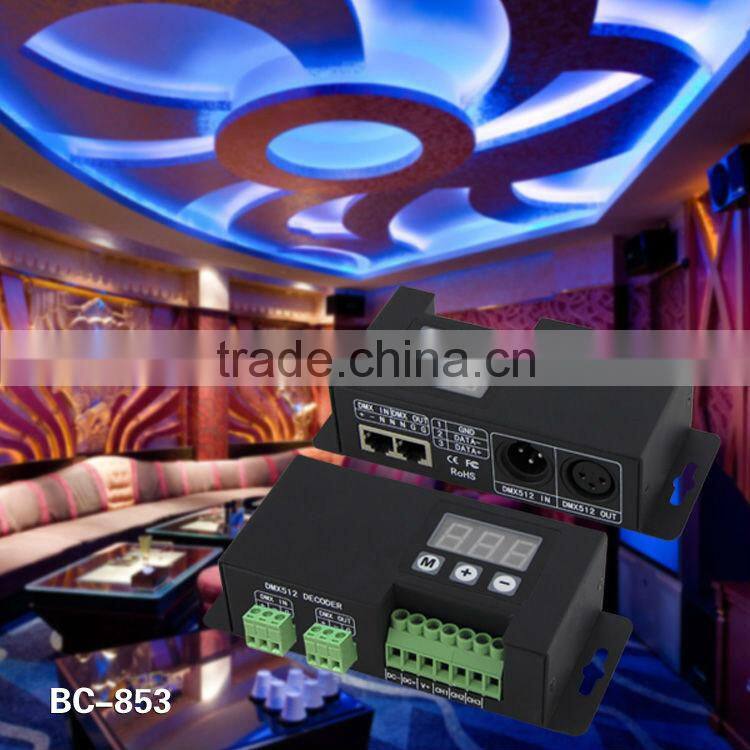

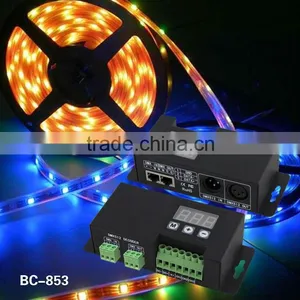

Product show:

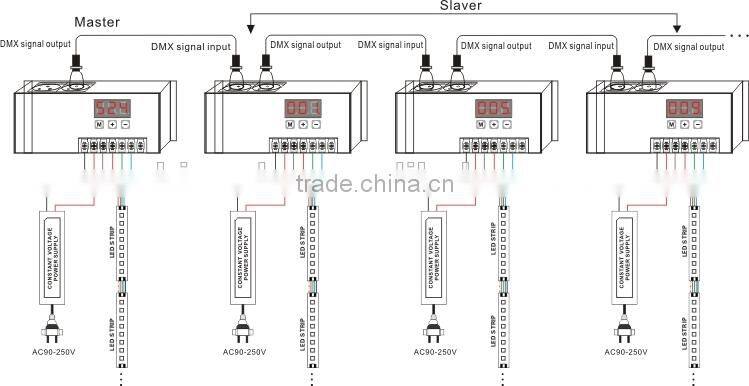

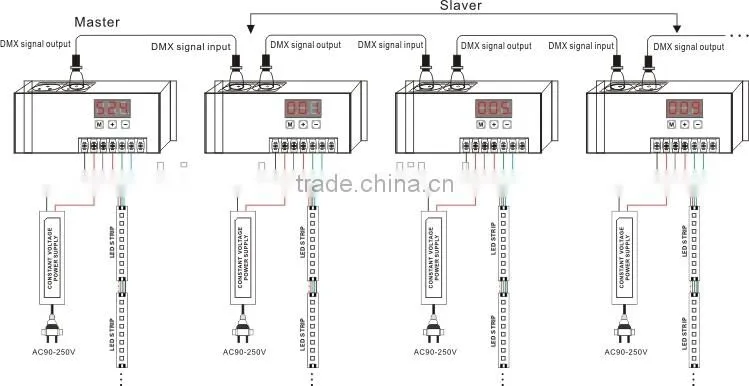

Wiring diagram :

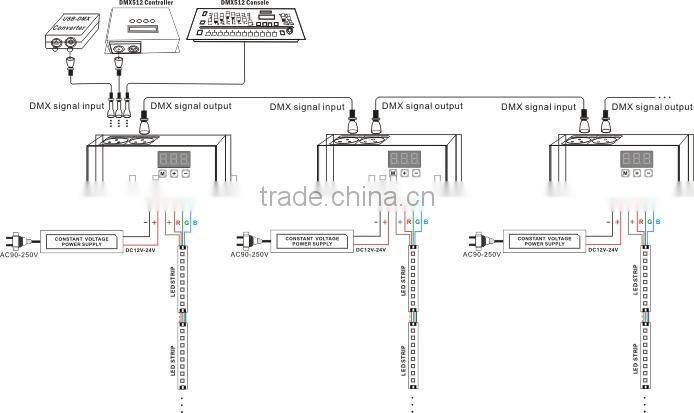

1)wiring diagram of Slave Mode:
