DMX512 Decoder 24CH Controller Dimmer 24 Channels for RGB LED Light DC 12V-24V
Introduction :
BC-824 24CH RGB DMX decoding driver works to convert universal DMX512/1990 digital signal to PWM signal,
which controlled by DMX512 console, with 256 levels grey scale output per channel. Adopting unique
programming technology, Creating exclamatory, perfect color fade & smooth effect, simultaneously let LED
color more affluent.
Feature :
1.24 output channels, 3A per channel which can connect RGB full-color lights.
2.0-100% smooth brightness adjusting, 256 grey steps per channel.
3.Universal standard DMX512 input protocol; addresses can be set up by DIP switch.
4.Working voltage from DC12V-DC24V.
5.10 self-changing modes, 8 speed levels.
6. Power loss memory function.
Specification :
Model |
BC-824 |
Input voltage |
DC12V-24V |
Max load current |
3A/CH×24 |
Max output power |
860W/1720W(12V/24V ) |
Output Scale level |
256 levels |
Input signal |
DMX512/1990 |
Output DMX Channel |
24Ch CV PWM |
working temperature |
-30°C-65°C |
Dimension |
L260×W110×H40(mm) |
Package Size |
L270×W130×H45(mm) |
Weight (G.W) |
920g |
Product show :

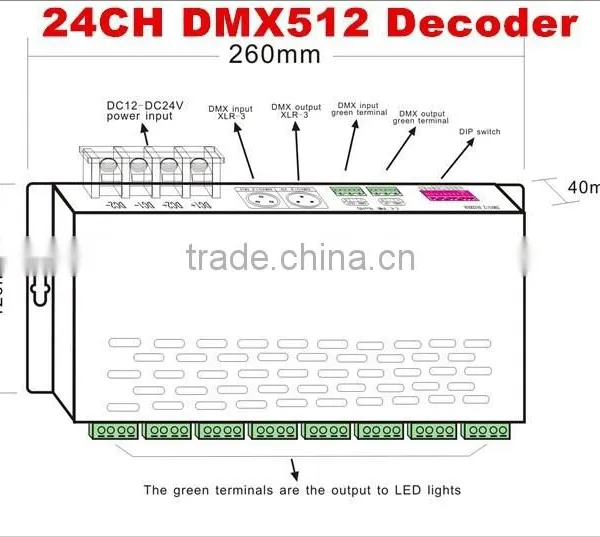

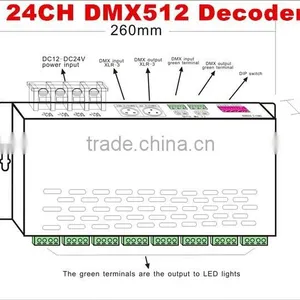

Wiring diagram :
After inspection the goods are packed in white inner box and then carefully packed in cartons.
1. Professional advice according to your needs.
2. Instant response to your inquiries.
3. Short lead-time, quick delivery.
4. Three years warranty for all of our products.
5. Samples orders, OEM/ODM orders are also welcomed.
We are leading Manufacturer of LED controllers in Zhuhai, Guangdong province, China.
We are small, flexible and loyal. Ideal partner of your customize order.
We are strong in developing OEM and ODM projects, and customer's rights are the first things we consider about.
We are very competitive in price , well reputed for quality product and prompt delivery.
Welcome to discuss more in details.
