Bincolor DC12V-24V dmx512 decoder and dmx controller 24CH
Introduction :
BC-824 24CH RGB DMX decoding driver works to convert universal DMX512/1990 digital signal to PWM signal,
which controlled by DMX512 console, with 256 levels grey scale output per channel. Adopting unique
programming technology, Creating exclamatory, perfect color fade & smooth effect, simultaneously let LED
color more affluent.
Feature :
1.24 output channels, 3A per channel which can connect RGB full-color lights.
2.0-100% smooth brightness adjusting, 256 grey steps per channel.
3.Universal standard DMX512 input protocol; addresses can be set up by DIP switch.
4.Working voltage from DC12V-DC24V.
5.10 self-changing modes, 8 speed levels.
6. Power loss memory function.
Specification :
Model | BC-824 |
Input voltage | DC12V-24V |
Max load current | 3A/CH×24 |
Max output power | 860W/1720W(12V/24V ) |
Output Scale level | 256 levels |
Input signal | DMX512/1990 |
Output DMX Channel | 24Ch CV PWM |
working temperature | -30°C-65°C |
Dimension | L260×W110×H40(mm) |
Package Size | L270×W130×H45(mm) |
Weight (G.W) | 920g |

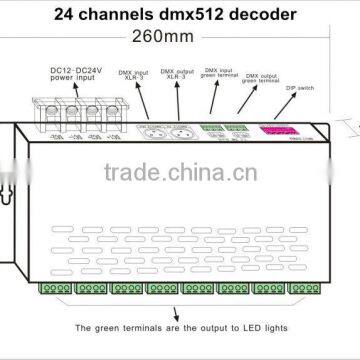

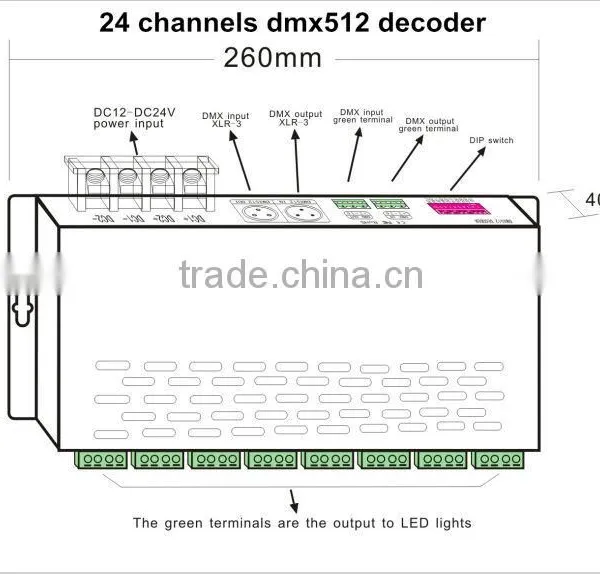

Product show :

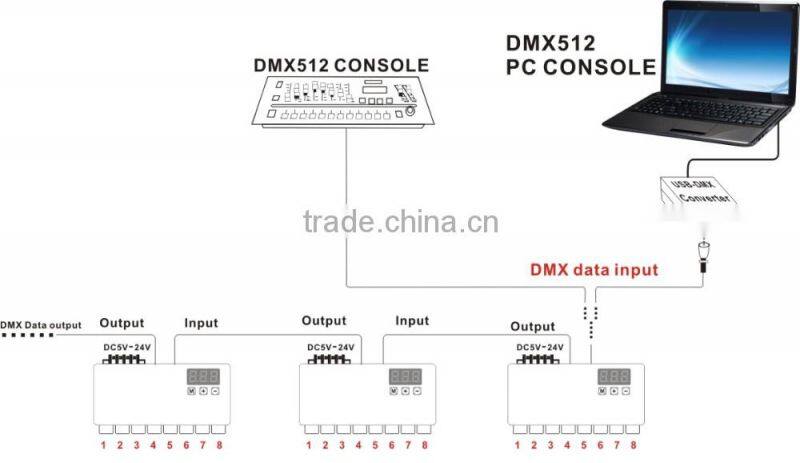

Wiring diagram :
