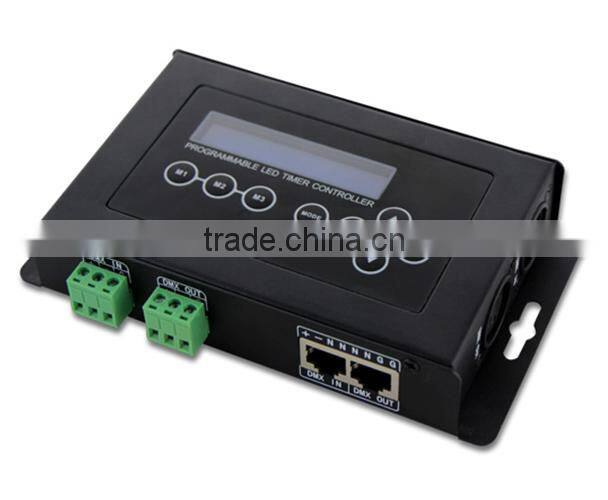

Bincolor BC-322-DMX Timer dimmer DMX LED controller DC12V-36V Aquarium & plant light controller
This Timer dimmer Series is 4CH output,it can adjust the brightness based on the set time.Users also can insert a variety of special lighting change effect,which can be customized or recorded by the DMX console,simulating light change in the nature perfectly,suitable for commercial lighting,plant light and aquarium light, etc.
Specification :
| Model | BC-322-DMX |
| working Voltage | DC9V(With adapter) |
| Input Signal | DMX512 |
| Output Signal | DMX512 |
| DMX interface | XLR-3,RJ45,Terminal Block |
| Dimension | L161*W100*H30(mm) |
Feature Function:
1. With LCD display,easy operation.
2. Built-in real time clock system,and can set any time&any brightness.
3. Four channels output,each channel can be configured and timing dim independently.
4.1 manual mode,4 timing mode,12 change effect ,perfectly simulate the light changes in nature.
5. Four kinds of change effect record function,you can use standard DMX512 console to program and record as a special effect mode.
6.Quick demonstration function,users can quickly check the accuracy of the data.

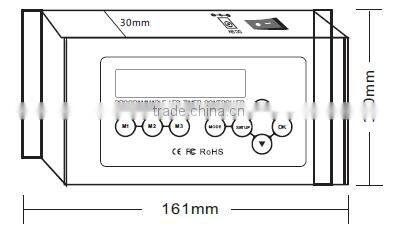

Dimension:

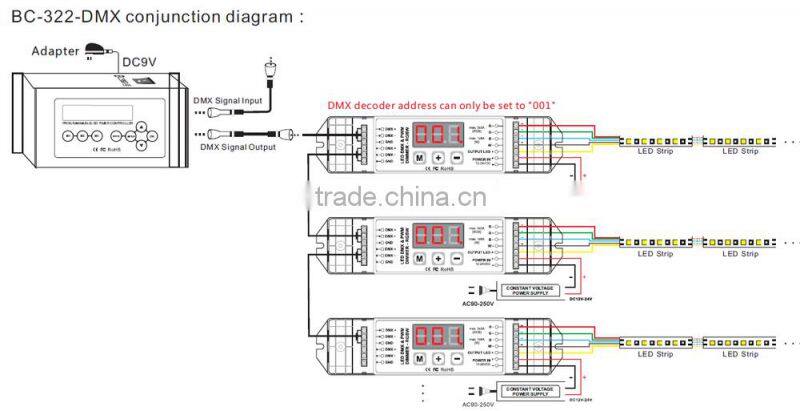

Typical Wiring Schematics:
After inspection the goods are packed in white inner box and then carefully packed in cartons.
