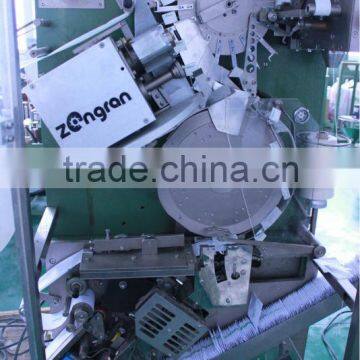

DXDT8 Automatic Tea Bag Packing Machine

• Heat sealed rectangular single chamber filter bags with thread, tag & envelopes

• Special feeder for tea leaves.

• Auto counting envelopes at exit channel for manual removal

• In GMP standard

• Square, rectangular and octagonal tag can attached

• Can set for only naked filter bags

• Hygienic, airtight, waterproof envelope guaranteeing the preservation of tea

Working Speed:

up to 90-100 BPM

Dosing Range:

Max. 8 cc (cubic centimeter)

Filter Bag (Inner Bag):

Shape: 4 side sealed rectangular single chamber filter bags
Size: 60 mm x 50 mm ( 2.36 in x 1.97 in)
Filer Paper: heat sealing type, 16.5g/m²(21g/m², 23g/m²) in web(roll) of 120 mm ( 4.72 in ) width, out dia. 400 mm ( 15.75 in ) inner dia. 75 mm ( 2.95 in )

Tag:

Shape: square, rectangular and octagonal
Size: 28 mm x 24 mm (1.10 in x 0.94 in)
Tag paper: 70g/m² printed on both sides and notched in Rolls of 28 mm (1.10 in) width.

Envelope (Out Bag):

Shape: as envelope
Size: 70 mm x 65 mm ( 2.76 in x 2.56 in)
Envelope Paper: heat sealing type, 70 g/m², in Rolls of 65 mm ( 2.56 in ) width.

Cotton thread:

Cotton

Glue For Tag:

Poly Vinyl Acetate

Power:

2.5 kw

Voltage:

380v/50hz, 3 phrase or per customer's request

Machine Size:

H 1700 mm W 900 mm H 2190 mm
(H 66.93 in W 35.43 in H 86.22 in)

Shipping Size:

 L 1300 mm W 1100 mm H 2000 mm

(L 51.18 in W 43.31 in H 78.74 in)

Machine Weight:

600kgs
