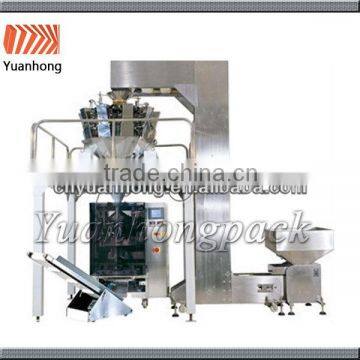

automatic bag forming filling and sealing machine

VFS5000F packaging machine

• Machine fully controlled by Siemens or Omron PLC & Touch-Screen

• Minute capacity can automaticlly display on Touch screen

• Film transport system and horizontal Jaw motion both drived by Panasonic

• Safe quick change of tube and collar by just pull out the braket

• Optoelectronics detect film position on collar to correct film excursion

• Electrical photo sensor inducting color code to contol bag length

• Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting

• Independent temperature adjustment.

• Various types of heating sealable laminated films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, aluminum foil based can be run on the machine.

• The packaging machine also can be used for Polyethylene Film Sealing by changing correspond equipemnt

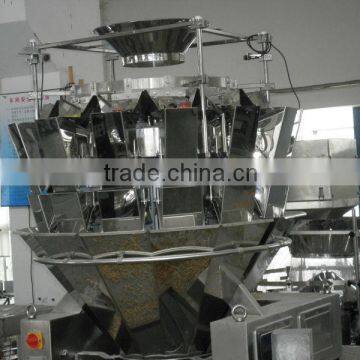

 10Muti-head weigher

•   Dispaly daily production data on touch screen

•   Adopt high precision digital weighing sensor

•   Have the powerful ability of self-analyzed failure

•   Multiple languages such as Chinese, English, Spanish and Korean etc.

•   Fully colour touch screen operation

•   Can saving 99 weighting program for different types product or weighting range

Bag type

Pillow type bag;Gusseted bag (Option)

Speed

40 to 80 bags/min (depend on product characteristics)

Bag Length

50 to 340mm (2.0 to 13.4in)

Bag Width

80 to 260mm (3.1 to 10.3in)

Reel Film Width

≤540mm (21.2in)

Film thickness

0.04-0.12mm (40-120mic.)

Reel Outer Dia.

400mm (15.7in)

Reel Inner Dia.

75mm (2.9in)

Voltage

AC220V/50Hz, 1phase or Per customer specification

Power Consumption

VFS5000F packaging machine

3KW

10Muti-head weigher

1KW

Compressed Air Requirement

0.6 MPa0.36 M3min

Machine Size

VFS5000F packaging machine

L1650 x W1140 x H1650; (in):L65.1 X W44.9 X H64.9

10Muti-head weigher

L1136xW950xH1100mm

Machine Weight

VFS5000F packaging machine

800kg

10Muti-head weigher

310kg
