BGA Rework machine with high definition screen and imported light and PLC controll system repairing game console
1.Specifications:
Power |
4800W |
Top heater |
Hot air 800W |
Bottom heater |
Hot air 1200W, Infrared 2700W |
Power supply |
AC220V±10% 50/60Hz |
Dimension |
L800*W900*H950 mm |
Positioning |
V-groove, PCB support can be adjusted in any direction with external universal fixture |
Temperature control |
K type thermocouple, closed loop control, independent heating |
Temp accuracy |
±2 degrees |
PCB size |
Max 500*400 mm Min 22*22 mm |
BGA chip |
2*2-80*80mm |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
1(optional) |
Net weight |
45kg |
2. Main Features:
lHD touch screen interface, PLC control.
lThree independent heaters all can set 8 segments heating, cooling and constant temperature, saved temperature profile is unlimited. IR preheat area can be choosed according to PCB size
lK sensor close control, control heating process precisely.
lPowerful cross flow fan helps cooling the PCB board fast and prevents it from deformation.

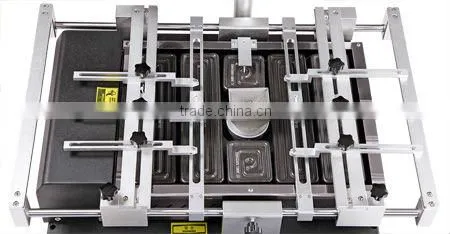

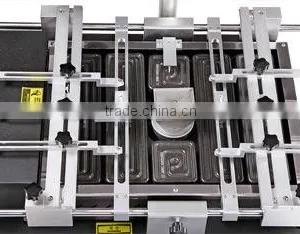

lV-groove PCB supporter for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
lTop hot air nozzles can be adjusted in any direction
lSound hint system. There is a alarm before the completion of desoldering and soldering.
lCE certification, with emergency switch and automatic power-off protection device when emergency happens
3. Products pictures:

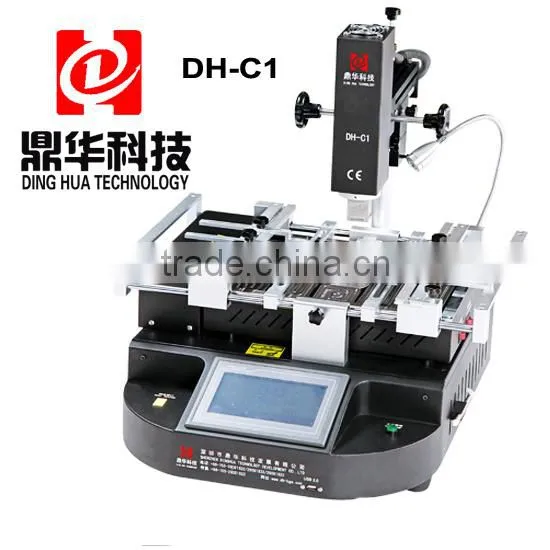

Overview

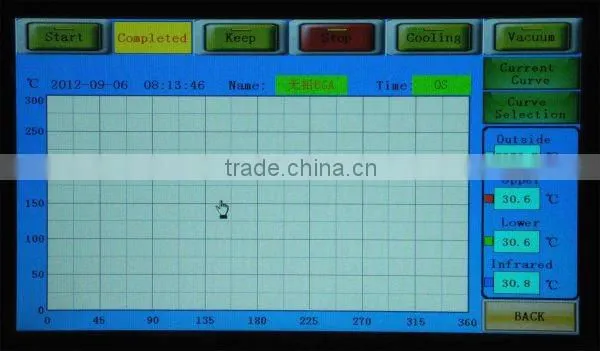

HD touch screeen interface
Accessories
workshop
