Dinghua DH-390 BGA Rework Station For PS3, XBOX360, Game Console Repairing

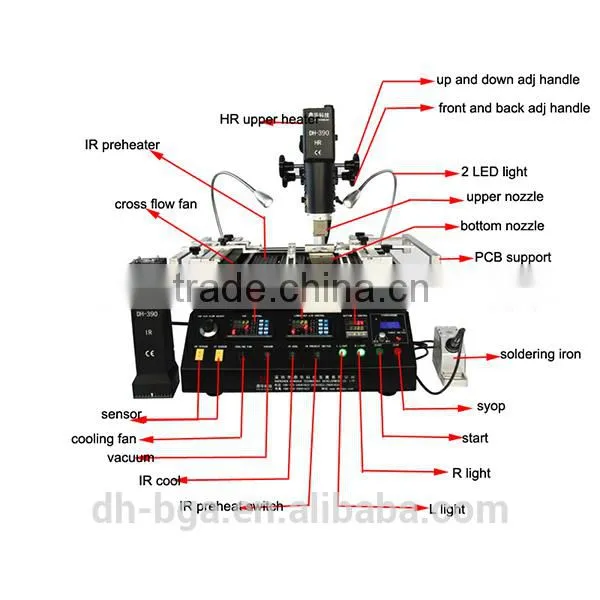

Dh-390 Description of every part

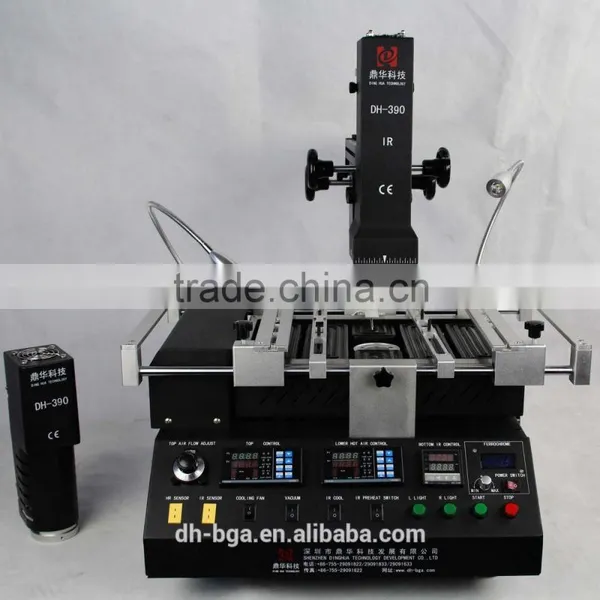

Dinghua DH-390 BGA Rework Station For PS3, XBOX360, Game Console Repairing
| Total power | 4350/4850 W |
| Top IR heater | 800W |
| Bottom IR heater | 1200W, IR 2700W |
| Power | AC220V±10% 50/60Hz |
| Temperature accuracy | ±2°C |
| Positioning | V-groove, PCB support can be adjusted in any direction and equipped with the external |
| PCB size | min 20x20mm, max 320x375mm |
| BGA chips | 5x5mm-55x55mm (competitive with all kinds of chip in the world) |
| Minimum chip spacing | 0.15mm |
| External temperature sensor | 2(optional) |
| N.W. | 32kg |
| Dimension | 560*560*580 |
| Suitable motherboards | mobile phone, laptop, desktop, PS3, XBOX360, game console,etc |
>>> Accessories of Dinghua DH-390 BGA Rework Station For PS3, XBOX360, Game Console Repairing :
-1 piece user guide
-1 piece brush
-1 piece temperature sensor
-6 pcs universal fixture
-6 pcs plug knob
-4 pcs supporting screw
Dinghua DH-390 BGA Rework Station For PS3, XBOX360, Game Console Repairing
1. Infra Three independent heaters all can set 8 segments heating,
2. K sensor close control, control heating process precisely.
3. Powerful cross flow fan helps cooling the PCB board fast and prevents it from deformation.
4. V-groove PCB supporter for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
5. Hot air nozzles can be adjusted in any direction.
6. CE certification
>>> Details of Dinghua DH-390 Good Quality BGA Rework Station For PS3, XBOX360, Game Console Repairing :

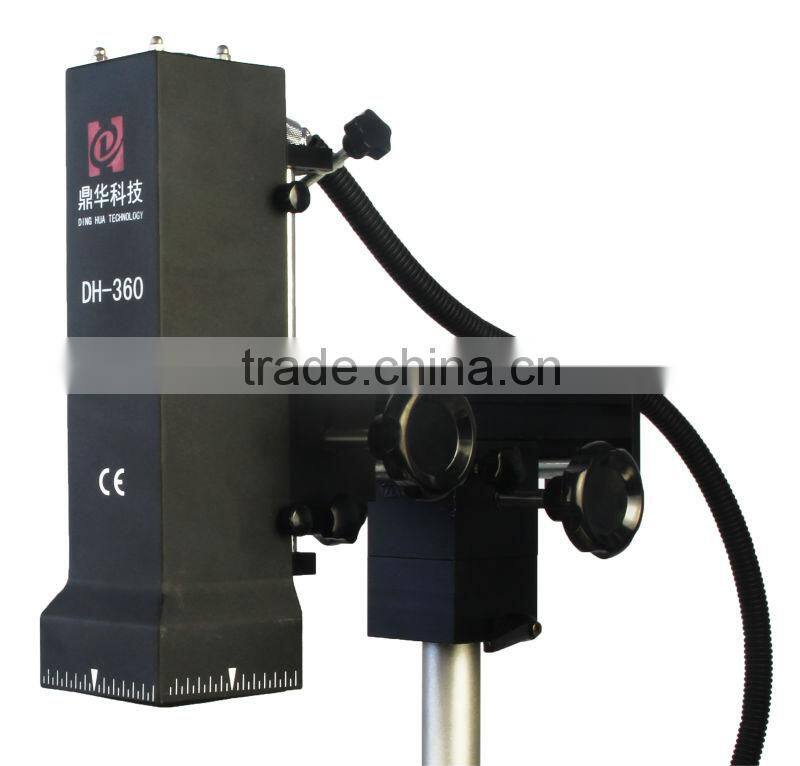

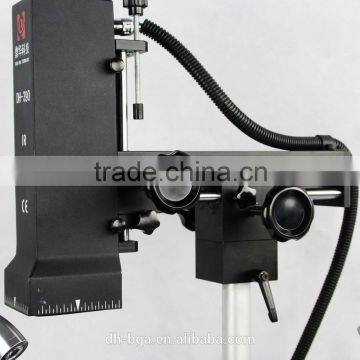

Hot air upper heater, you can replace it with a infrared one, we will send one to you

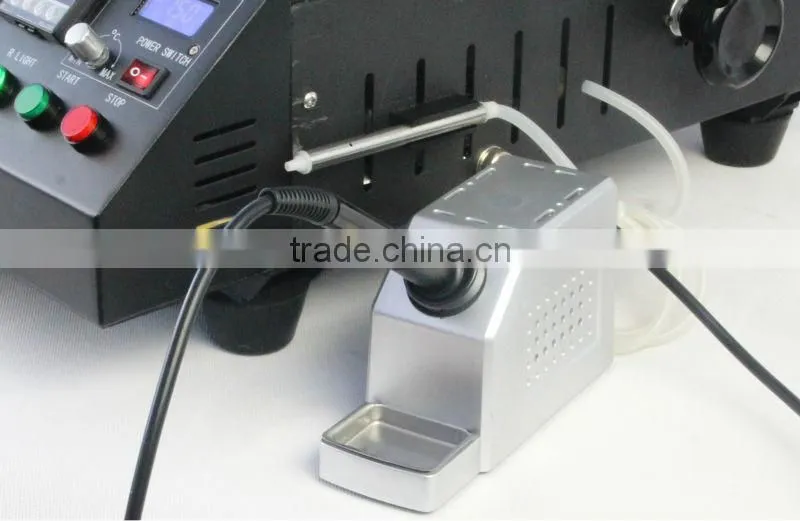

Soldering iron equipped, more convenient to you when cleaning and reballing

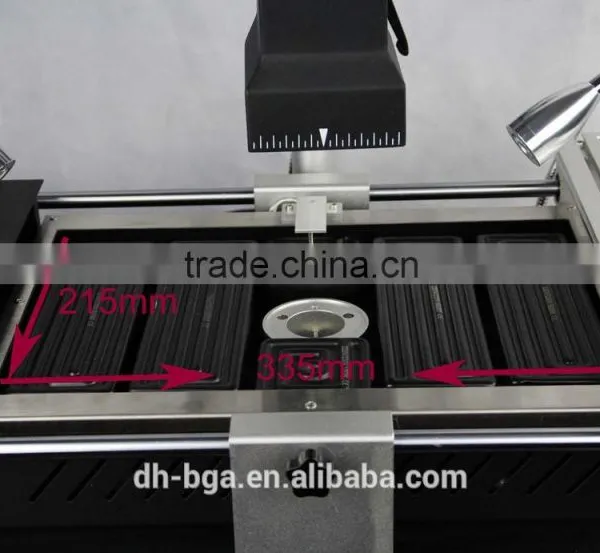

PCB suppor is big enough, even the server board.

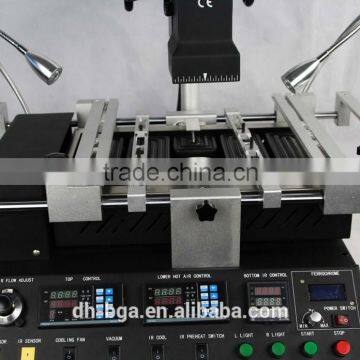

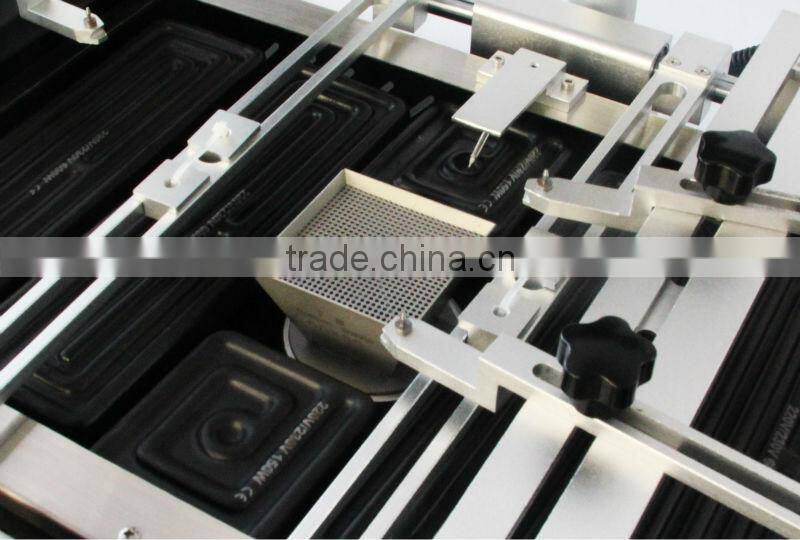

Universal fixture can support all kinds of PCB board; also can prevent the PCB board from deformation of heating exbantion.

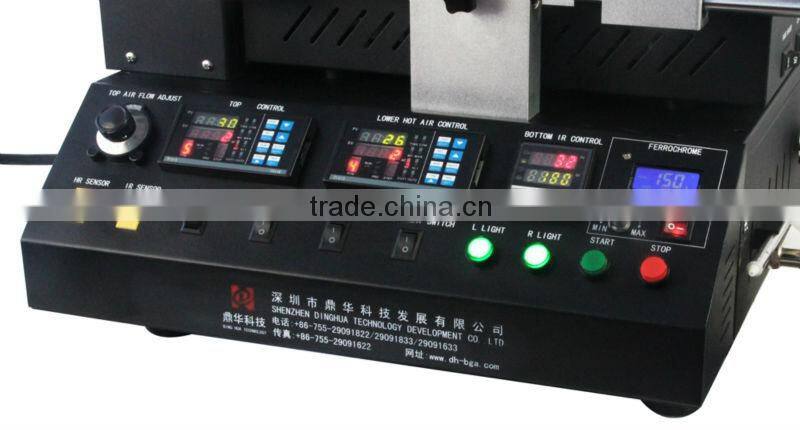

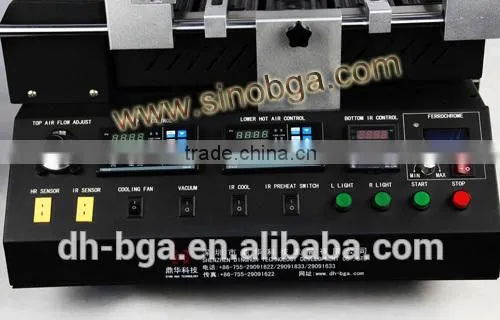

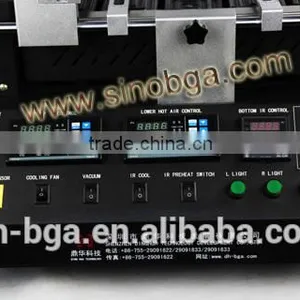

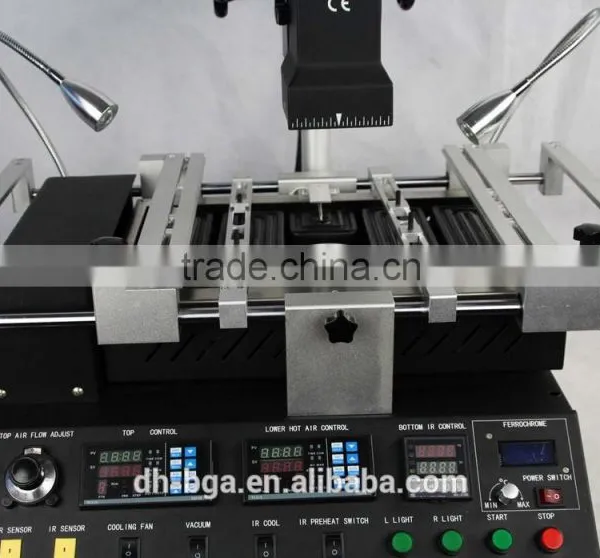

Every function you need is here: two temperature sensors, four fan switches; two led light switches; also the top air flow adjust
>>> certification:
1. The machine can be delivered by DHL, FedEx, TNT, EMS, UPS.
2. By sea or by air. Please provide us your nearest port.
3. The delivery date is within 7 days after the receipt of payment. If you are in urgent need of it, please kindly tell us.
1.All the machine will be well tested for 3 days before sending.
2.The whole machine is for 1-year warranty, the heating wire is for 3-years warranty
