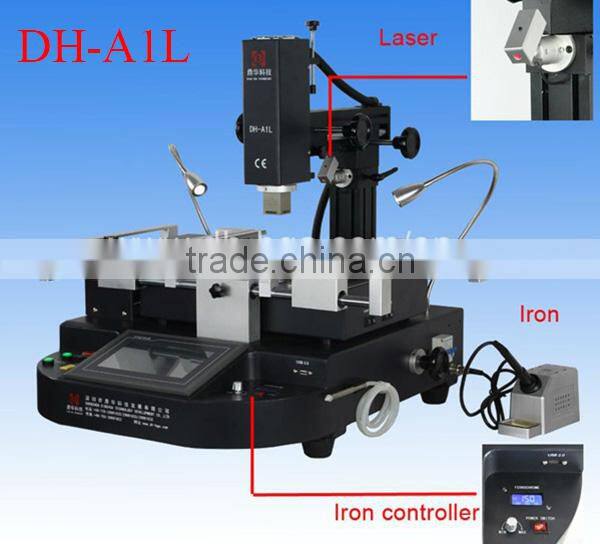

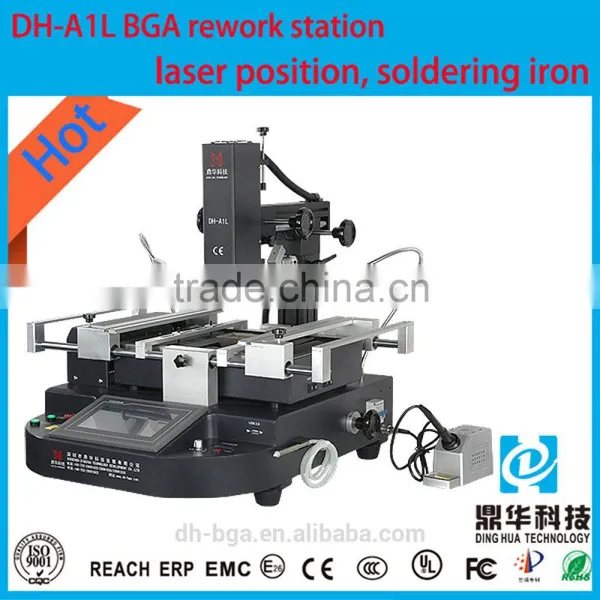

Dinghua tools laptop soldering station rework used mobile phones advance equipment etc. DH-A1L
Specifications:
Power | 4800W |
Top heater | Hot air 800W |
Bottom heater Iron heater | Hot air 1200W, Infrared 2700W 90w |
Power supply | AC220V±10% 50/60Hz |
Dimension |
L650xW680xH600mm
|
Positioning | V-groove, PCB support can be adjusted in any direction with external universal fixture |
Temperature control | K type thermocouple, closed loop control, independent heating |
Temp accuracy | ±2 degrees |
PCB size | Max 500*400 mm Min 22*22 mm |
BGA chip | 2*2-80*80mm |
Minimum chip spacing | 0.15mm |
External Temperature Sensor | 1(optional) |
Net weight | 45kg |

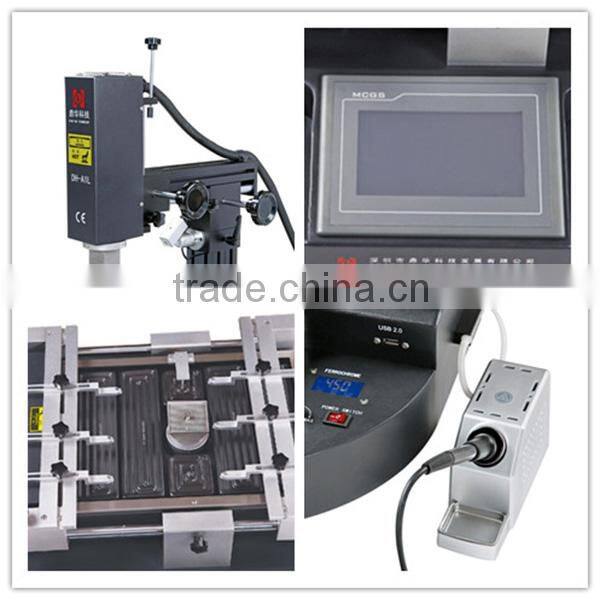

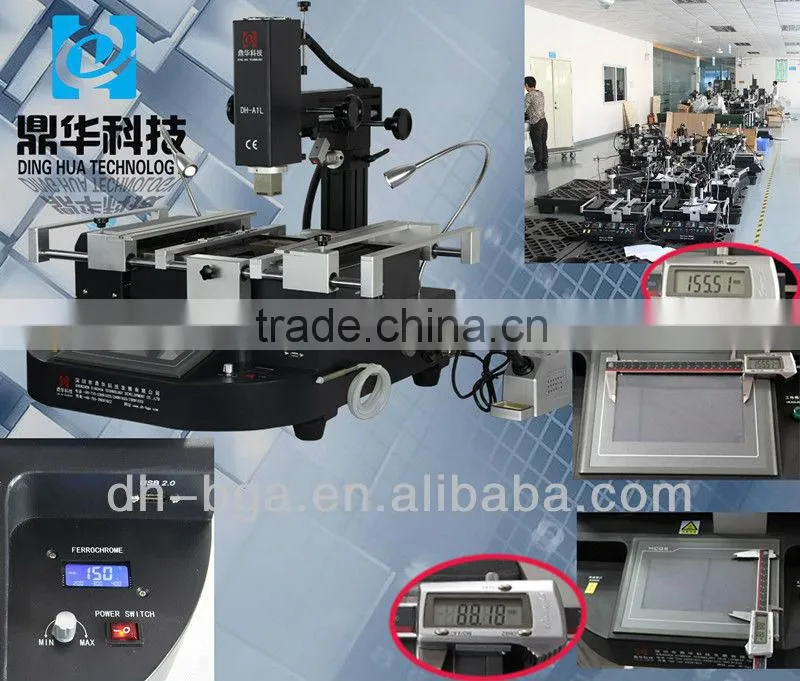

Three independent heaters, one set of iron, high definitiontouch screen and an independent switch of iron

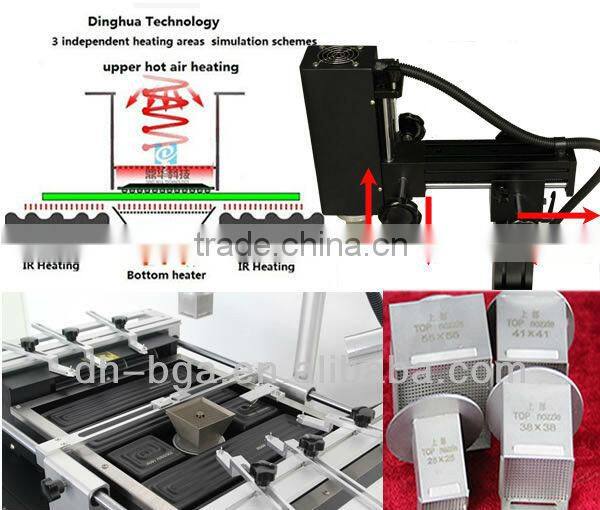

Working fundamental
The upper heater: hot air reflow heater,make the chip heated evenly.

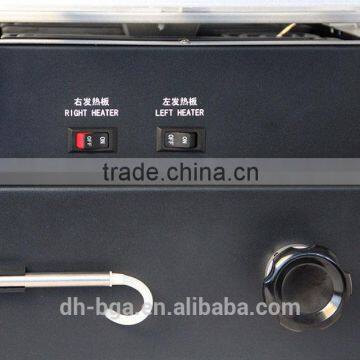

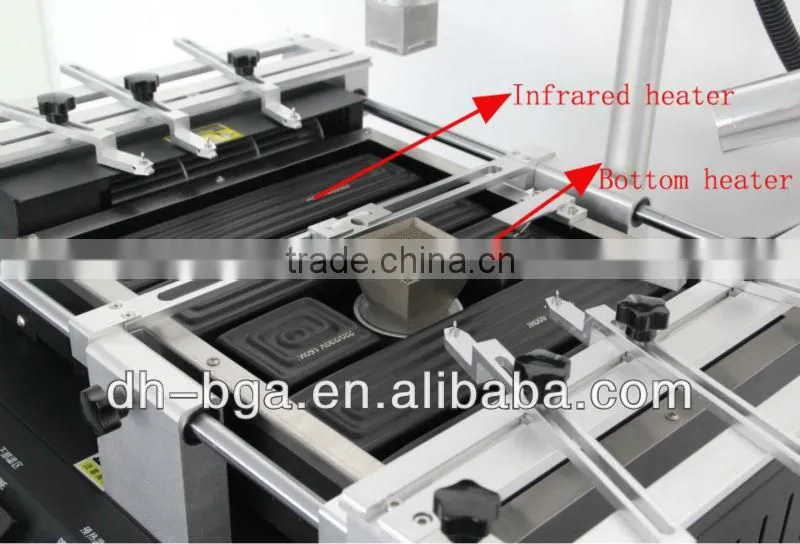

The bottom heater and infrared heater can heat the back of PCB,prevent the PCB from deformation.
All of them can set 8 segments heating ,cooling and constant temperature parameters, store 10 groups of temperature parameters.
Accurate temperature controlling system
Sound hint system.There is an alarm before the completion of each desoldering and soldering.
How to get the accurate temperature is the most importent aspect for reparing BGA chip.

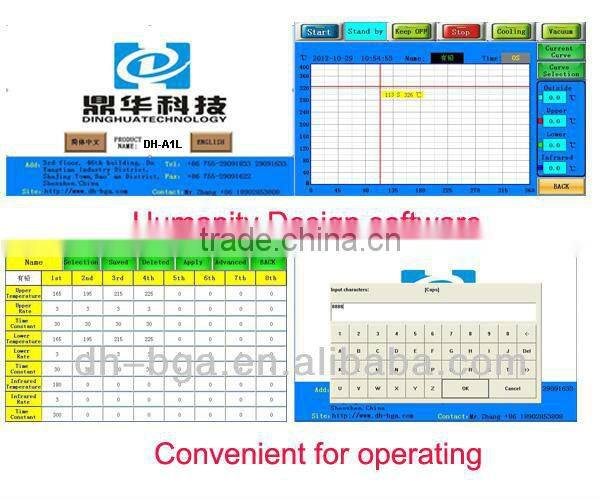

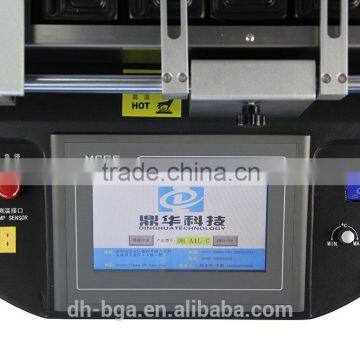

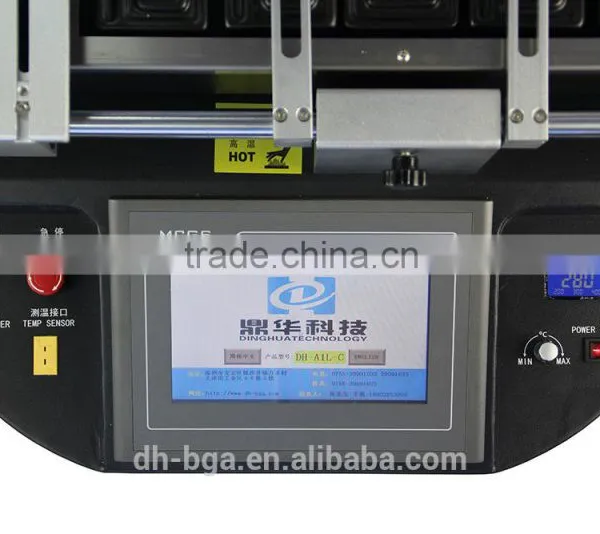

DH-A1L bga rework station use HD touch screen interface, PLC control ,K sensor close loop controland automatic temperature compensation system. It combines with temperature module, which enables temperature accuracy to ±2°C.
What's more,the external Iron station is very convenient for your work.

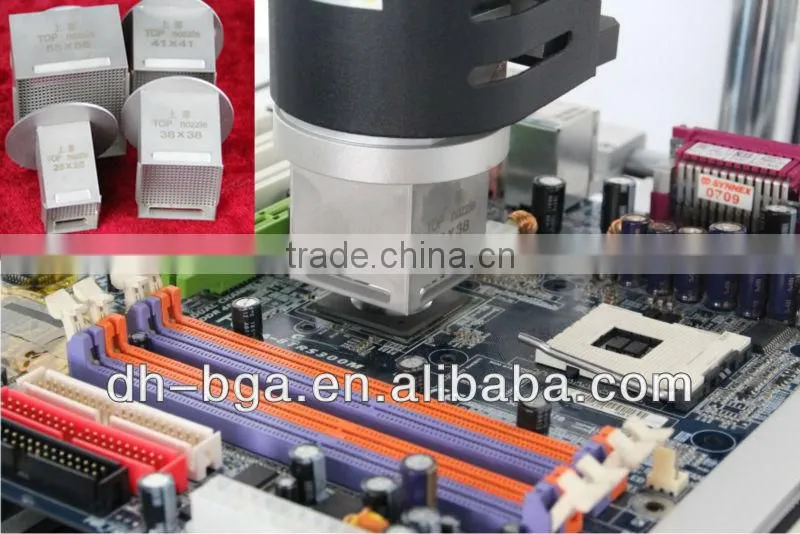

Hot air nozzles for different chip's size
Hot air nozzles, 360 degree rotation, easy to install and replace, customized is available.

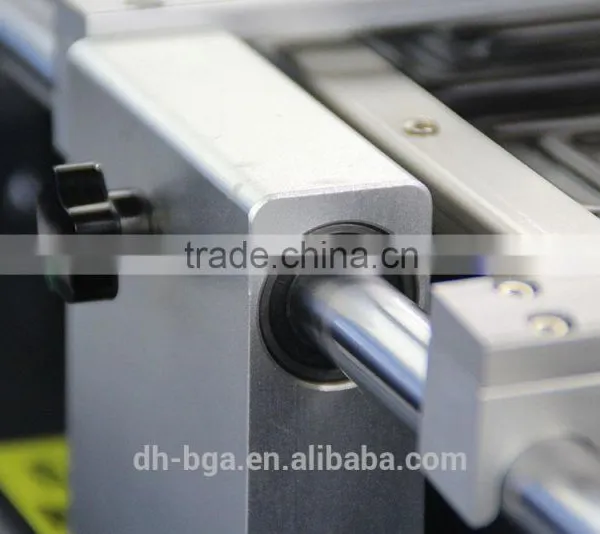

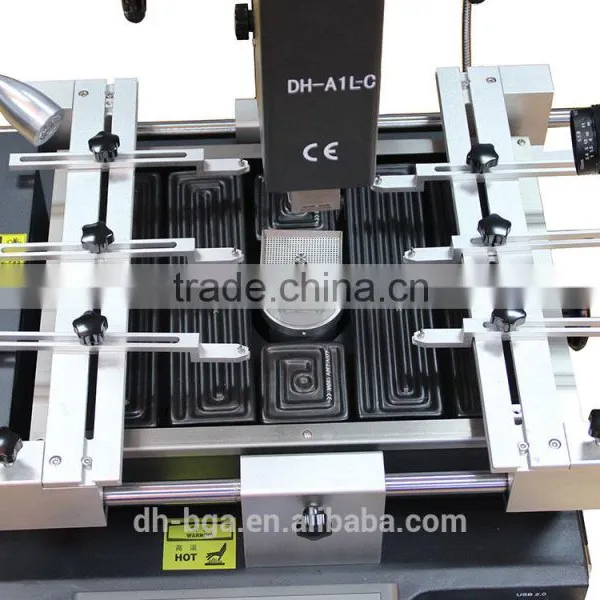

How to support PCB board

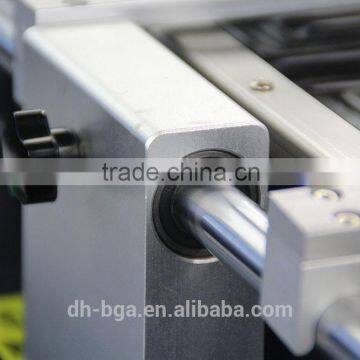

V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.

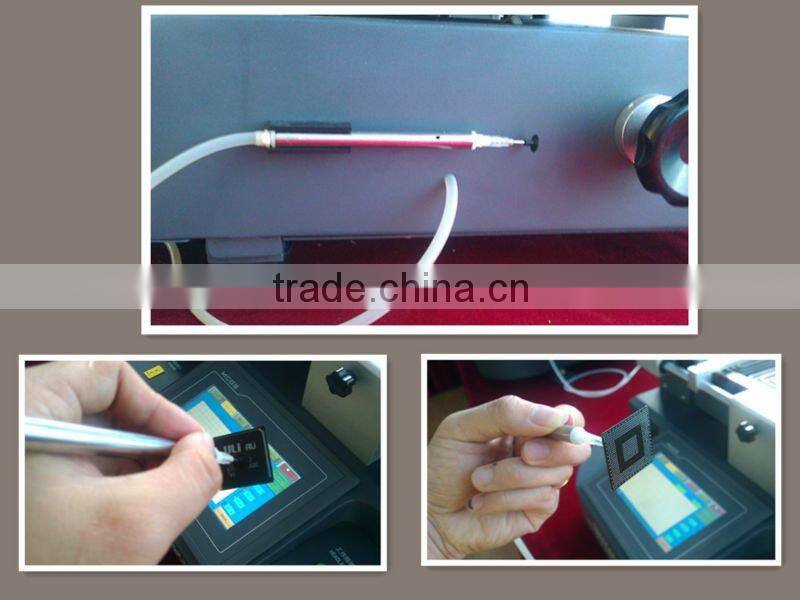

Vacuum pen for handing bga chip

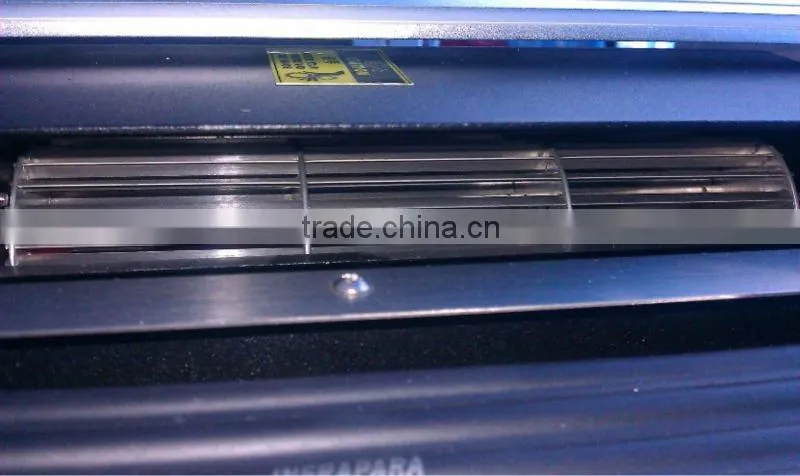

Cooling system
Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.

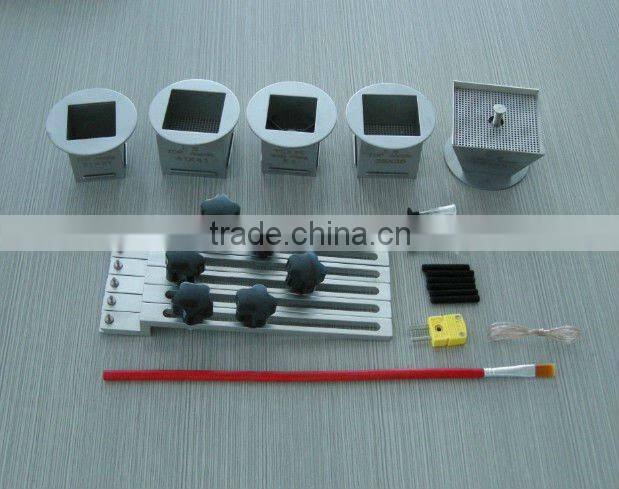

Dinghua standard spare parts to BGA Rework Station
Packing
All of our machine will packed carefully with standard plywooden box, to protect it from transport.
Our certificates
Chips below can be repaired
This BGA rework machine with 3 years warranty , in the first year, offer spare parts for free, the heating wires for 3 years warranty.
