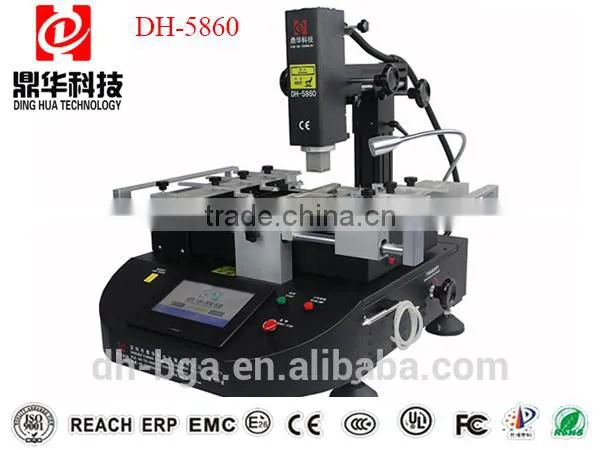

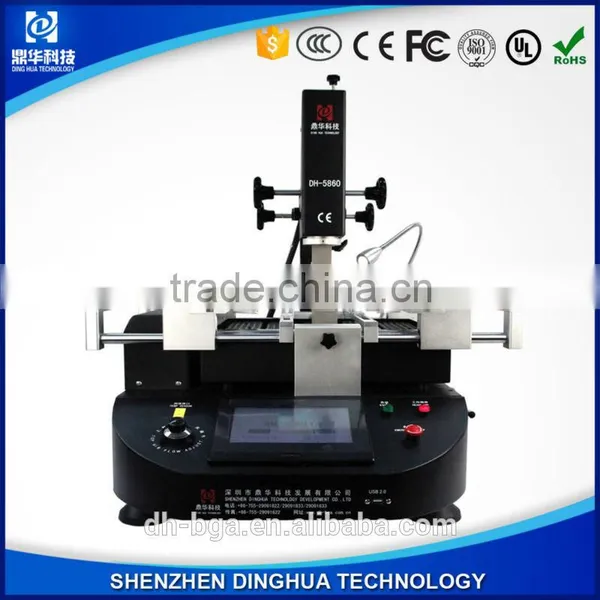

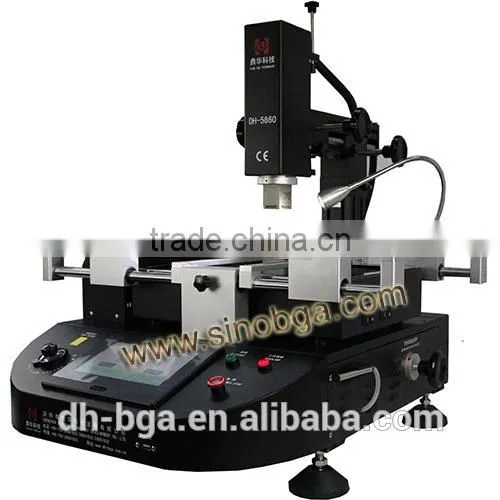

Dinghua DH-5860 bga soldering kit 3 heating heaters reapring chips
Specifications:
Power | 4800W |
Top heater | Hot air 800W |

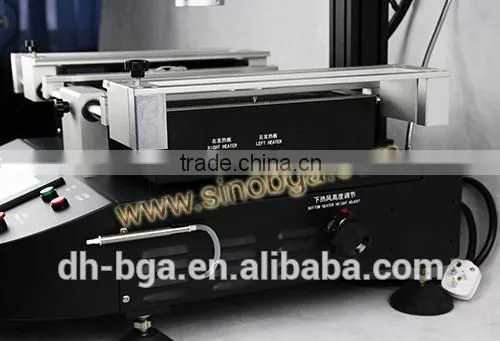

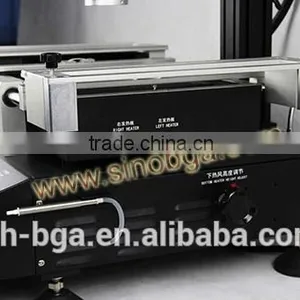

Bottom heater Iron heater | Hot air 1200W, Infrared 2700W 90w |
Power supply | AC220V±10% 50/60Hz |
Dimension |
L635*W600*H560mm
|
Positioning | V-groove, PCB support can be adjusted in any direction with external universal fixture |
Temperature control | K type thermocouple, closed loop control, independent heating |
Temp accuracy | ±2 degrees |
PCB size | Max 500*400 mm Min 22*22 mm |
BGA chip | 2*2-80*80mm |
Minimum chip spacing | 0.15mm |
External Temperature Sensor | 1(optional) |
Net weight | 45kg |
Specifications:
better than zm-r5860 bga soldering kit
Integrated high precisely digital soldering iron.
USB 2.0 connect, can be controlled by mouse.
HD touch screen interface, PLC control.
Three independent heaters all can set 8 segments heating, cooling and constant temperature, saved temperature profile is unlimited. IR preheat area can be controlleda ccording to PCB size
K-sensor close loop control andautomatic temperature compensation system.It combines with temperature module,which enables temperature accuracy to ±2°C
Moveable heater, easy to operate.
Hot air nozzles,360 degree rotation, easy to install and replace, customized is available.
V-groove PCB support for rapid, convenience and accurate positioning that fits for all kindsof PCB board
Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.
Sound hint system. There is an alarm before the completion of each desoldering and soldering.
CE certification,with emergency switch and automatic power-off protection device when emergency happens
Three years warranty(Two years longer than other companies), free life-long technical support
Applications:
Complete range of rework applications in medium and large scale service centers
Mobile and radio systems devices repairment
Cellular phones, PDAs, handhelds, laptops, notebooks & motherboards repairment
LAN devices, network nodes and militarycommunication equipment repairment
Portable medical equipment repairment
CE certification, with emergency switch and automatic power-off protection device when emergency happen
Chips below can be repaired
This BGA rework machine with 3 years warranty , in the first year, offer spare parts for free, the other 2 years, only charge fees for spare parts, technical support is always available.
