Dinghua DH-B1 Three Heat Zones Hot Air and IR Preheat Soldering Machine BGA Rework Staion for PCB Main Chips Repair

Dinghua DH-B1 Three Heat Zones Hot Air and IR Preheat Soldering Machine BGA Rework Staion for PCB Main Chips Repair thumbnail-1
Dinghua DH-B1 Three Heat Zones Hot Air and IR Preheat Soldering Machine BGA Rework Staion for PCB Main Chips Repair thumbnail-2
Dinghua DH-B1 Three Heat Zones Hot Air and IR Preheat Soldering Machine BGA Rework Staion for PCB Main Chips Repair thumbnail-3
Dinghua DH-B1 Three Heat Zones Hot Air and IR Preheat Soldering Machine BGA Rework Staion for PCB Main Chips Repair thumbnail-4
Dinghua DH-B1 Three Heat Zones Hot Air and IR Preheat Soldering Machine BGA Rework Staion for PCB Main Chips Repair thumbnail-5
Dinghua DH-B1 Three Heat Zones Hot Air and IR Preheat Soldering Machine BGA Rework Staion for PCB Main Chips Repair thumbnail-6
Dinghua DH-B1 Three Heat Zones Hot Air and IR Preheat Soldering Machine BGA Rework Staion for PCB Main Chips Repair photo-1
Dinghua DH-B1 Three Heat Zones Hot Air and IR Preheat Soldering Machine BGA Rework Staion for PCB Main Chips Repair photo-2
Dinghua DH-B1 Three Heat Zones Hot Air and IR Preheat Soldering Machine BGA Rework Staion for PCB Main Chips Repair photo-3
Dinghua DH-B1 Three Heat Zones Hot Air and IR Preheat Soldering Machine BGA Rework Staion for PCB Main Chips Repair photo-4
Dinghua DH-B1 Three Heat Zones Hot Air and IR Preheat Soldering Machine BGA Rework Staion for PCB Main Chips Repair photo-5
Dinghua DH-B1 Three Heat Zones Hot Air and IR Preheat Soldering Machine BGA Rework Staion for PCB Main Chips Repair photo-6
US$ 1 - 1,399 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DINGHUA
Model Number:
DH-B1
Contact Supplier Request Quote Chat Now
Shenzhen Dinghua Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name DINGHUA
Model Number DH-B1

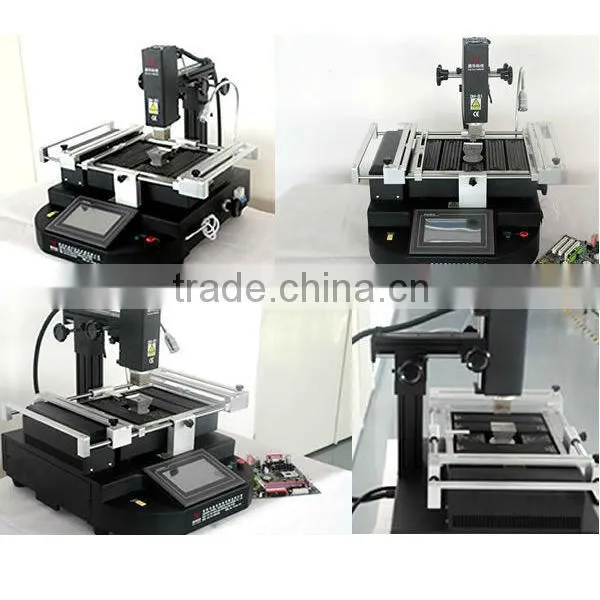

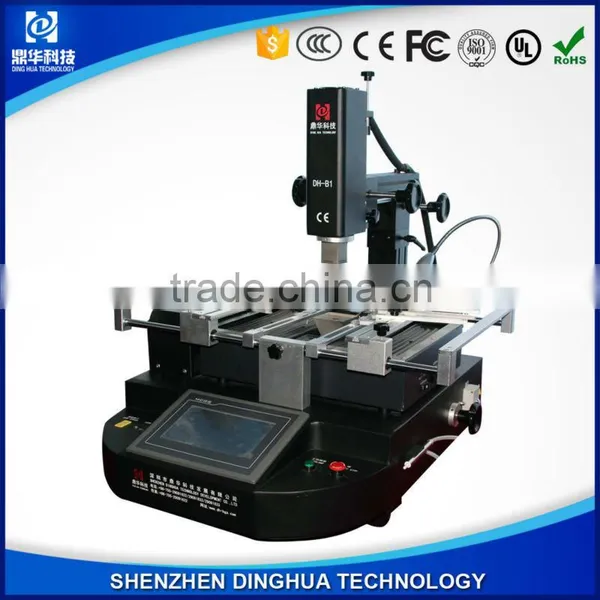

Dinghua DH-B1 three heat zones hot air and IR preheat soldering machine BGA rework staion for PCB main chips repair



Warranty: Three years warranty for heater wires, one year for other parts of machine. (Two years longer than other companies)



Details:







DH-B1 Specification:

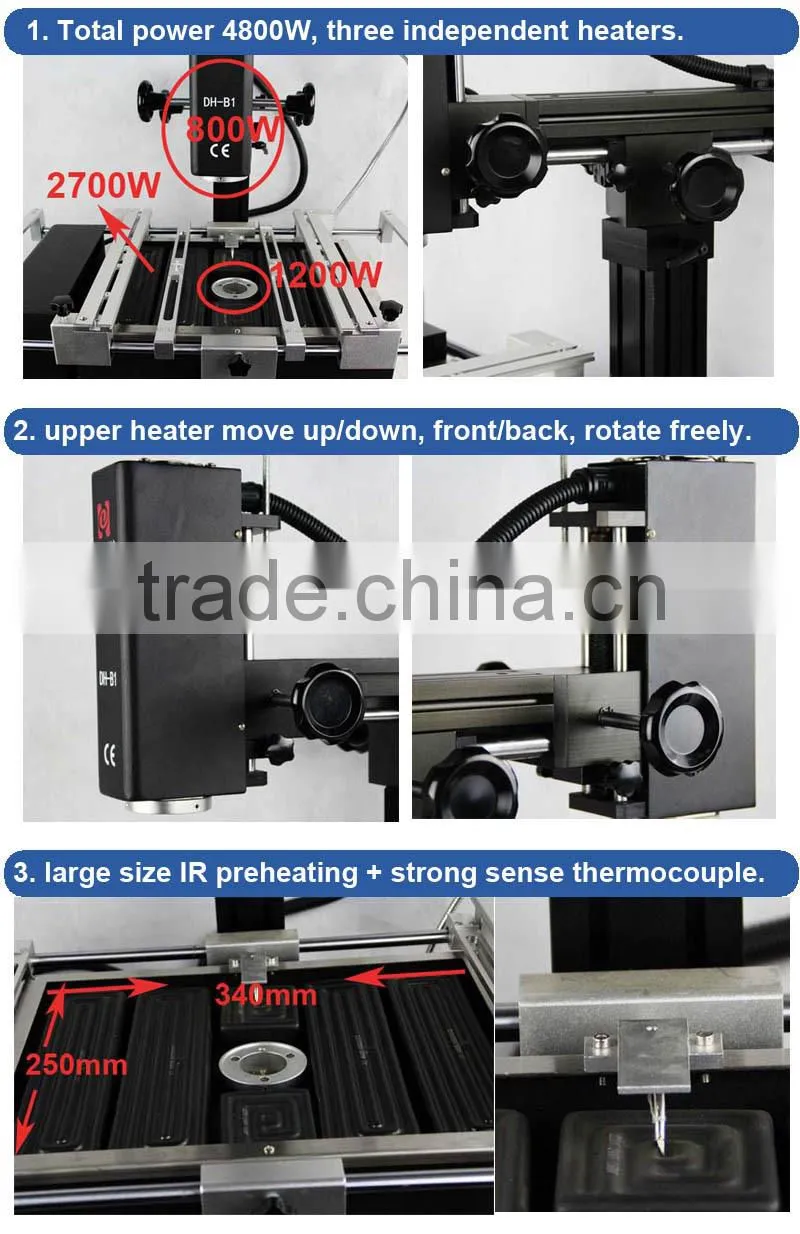

Total Power

4800W

Top heater

800W

Bottom heater

2nd 1200W, 3rd IR heater 2700W

Power

AC220V±10%     50Hz

Lighting

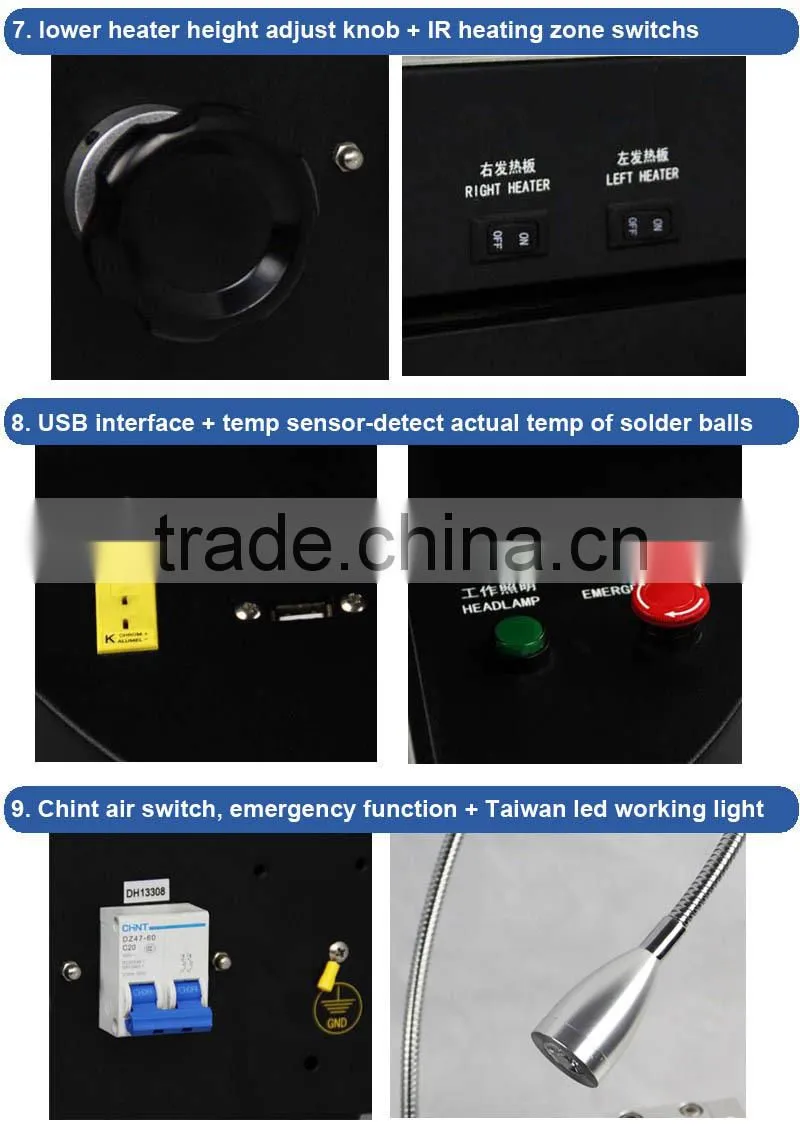

Taiwan led working light, any angle adjusted.

Operation mode

Drawer style HD touch screen, intelligent conversational interface, digital system setting

Storage

50000 groups

Top heater movement

Right/left, frontward/backward, rotate freely.

Positioning

Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support” + V-groov pcb bracket + universal fixtures.

Temperature control

K sensor, close loop

Temp accuracy

±2℃

PCB size

Max 440×390 mm Min 22×22 mm

BGA chip

2x2 mm - 80x80 mm

Minimum chip spacing

0.15mm

External temper sensor

1pc

Dimensions

610*620*560mm

Net weight

36KG



Certificates:

Dinghua DH-B1 three heat zones hot air and IR preheat soldering machine BGA rework staion for PCB main chips repairDinghua DH-B1 three heat zones hot air and IR preheat soldering machine BGA rework staion for PCB main chips repair
