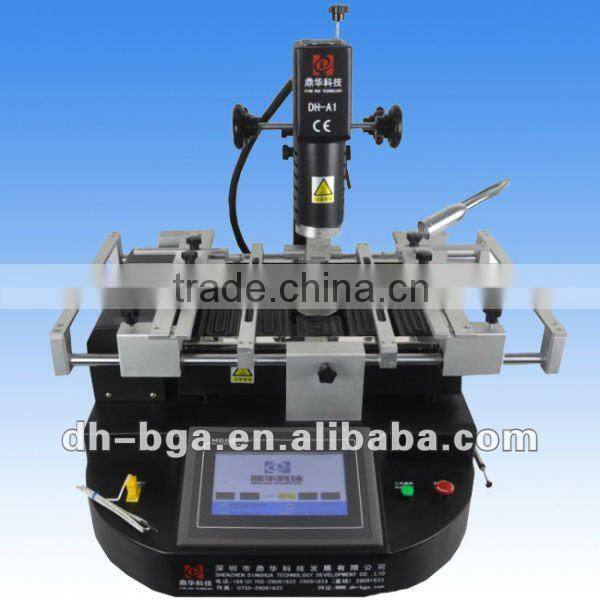

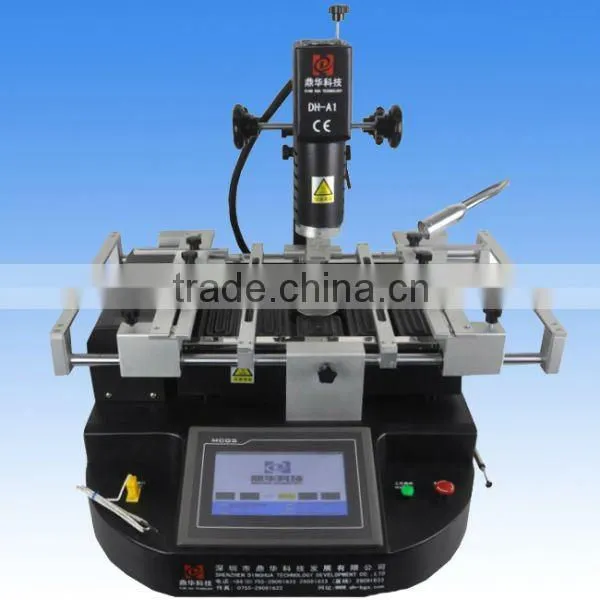

Dinghua DH-A1 Bga Machine Laptop Chip Desoldering Computer tv Welding for Price Check South Africa
US$ 899 - 1,599
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Dinghua
Model Number:
DH-A1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
South Bridge Repair Low Cost BGA Reflow Station DH-G200US$ 1 - 4,199MOQ: 1 Set -
BGA Rework Training Machine, BGA Rework Tutorial Machine DH-A4NegotiableMOQ: 1 Box
-
Dinghua Bga Machine /mobile Phone Soldering Iron Rework Chip Level Repair Sensors in Dubai Iphone Tools Baku DH-380US$ 299 - 1,099MOQ: 1 Set
-
Dinghua Bga Welding Equipment Rework Led Light Making Machine / Xiaomi Motherboard Solder Taiwan for You DH-380 Quality Choice MostUS$ 299 - 1,099MOQ: 1 Set
-
Dinghua DH-5830 Repair Graphic Card of Laptop and IC of Mobile Bga Rework Equipment w Touch ScreenUS$ 399 - 1,099MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
Dinghua
Model Number
DH-A1
Dinghua popular bga rework machine reparing printers, gpu and other electronic components selling accross the world from Shenzhen city
Specifications:
Total Power |
4800W |
Top heater |
800W |
Bottom heater |
2nd heater 1200W, 3rd heater 2700W |
Power |
AC220V±10%, 110V±10%.50/60Hz |
Dimensions |
L800×W900×H950 mm |
Positioning |
V-groove, PCB support can be adjusted in any direction and with external universal fixture |
Temperature control |
K type thermocouple, closed loop controlled, independent heating |
Temp accuracy |
±2°C |
PCB size |
Max 500x400 mm Min 22x22 mm |
| BGA chip size | 2*2~80*80mm |
| Warranty | 1 year for whole machine, 3 years for heating wires |
DH-A1 main features
- Three independent heaters (top heater, bottom heater and infrared heater zoon) the top heater and bottom heater is for heating the BGA chip, the infrared heater is for heating the whole PCB, so it can protect the PCB from uneven heating.

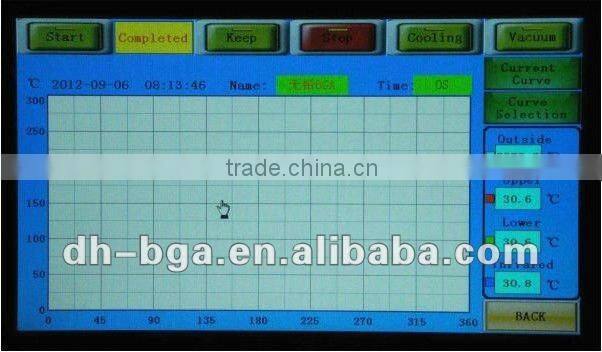

- HD touch screen interface, PLC control
- K sensor close loop control and automatic temperature compensation system. It combines with temperature module, which enables temperature accuracy to ±2°C
- Hot air nozzles, 360 degree rotation, easy to install and replace, customized is available.
- V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.

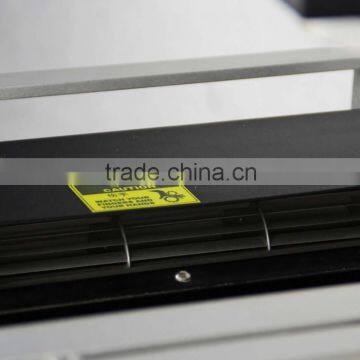

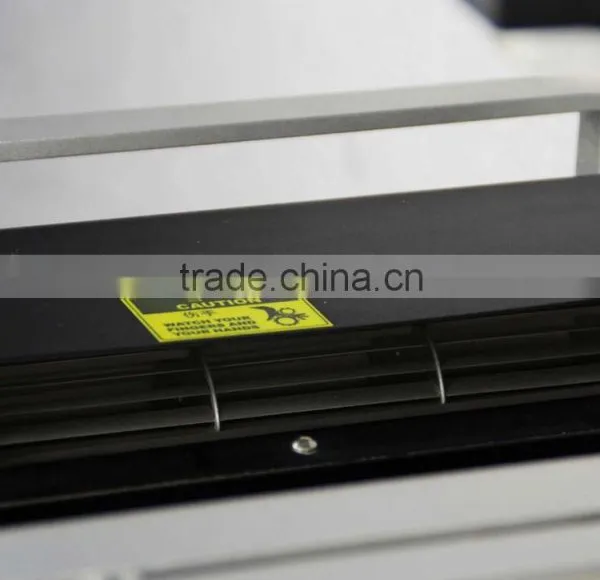

- Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.
- Sound hint system. There is an alarm before the completion of each desoldering and soldering.
- CE certification, with emergency switch and automatic power-off protection device when emergency happen

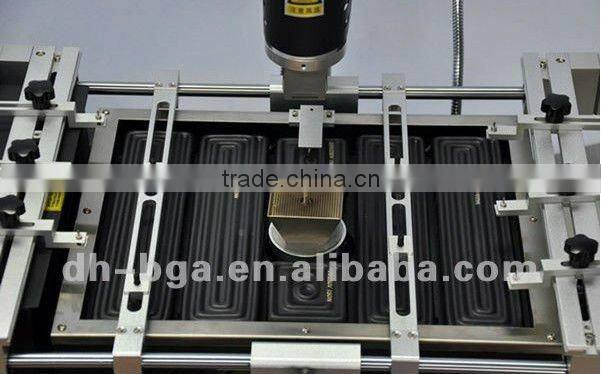

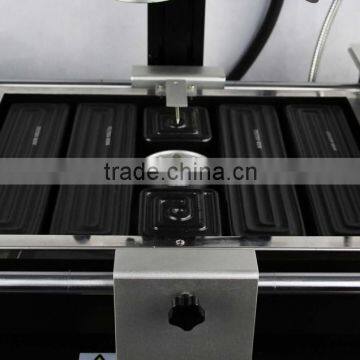

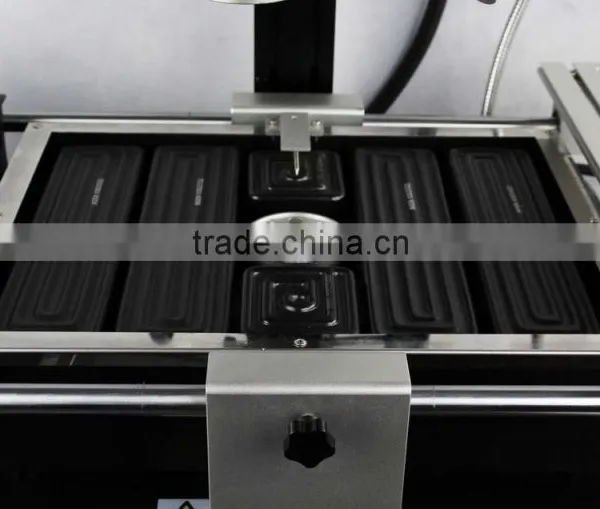

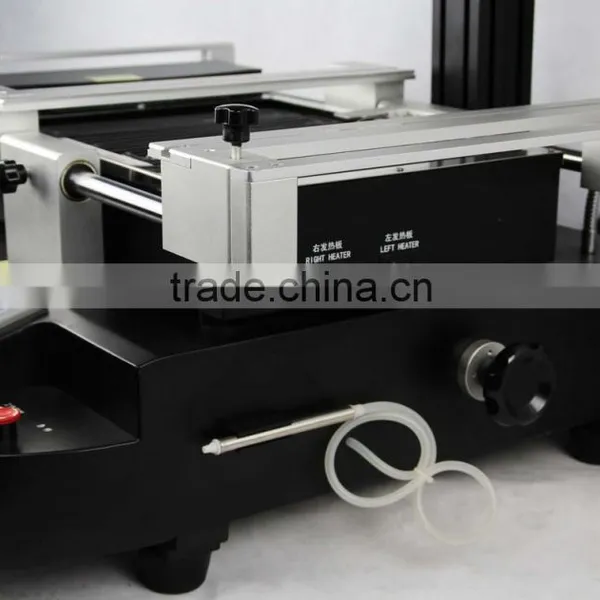

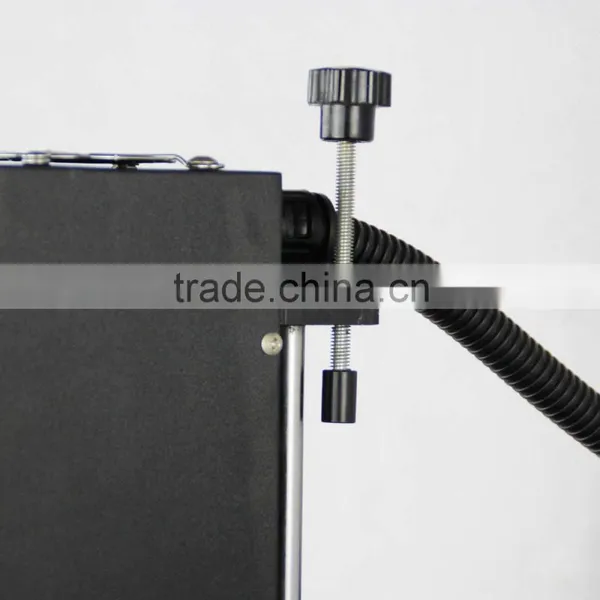

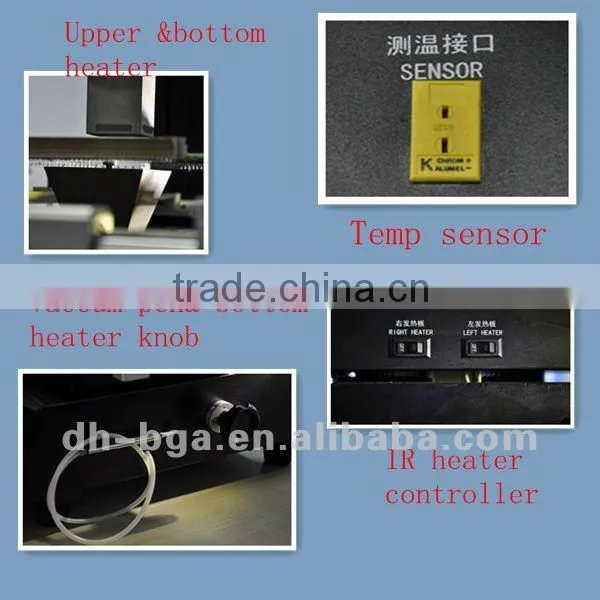

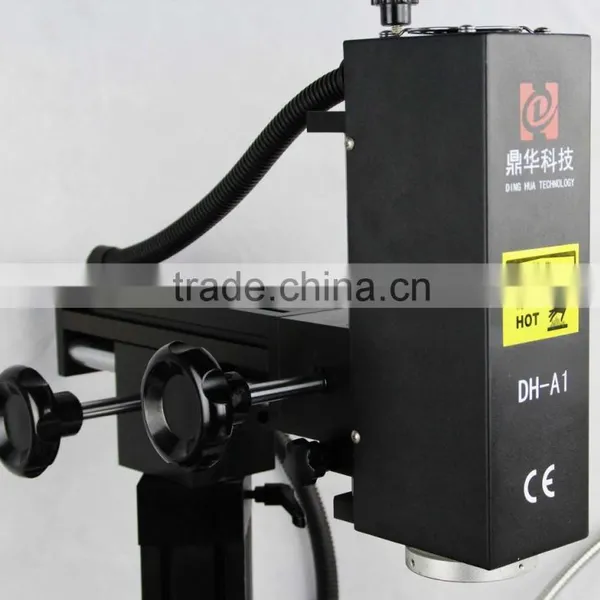

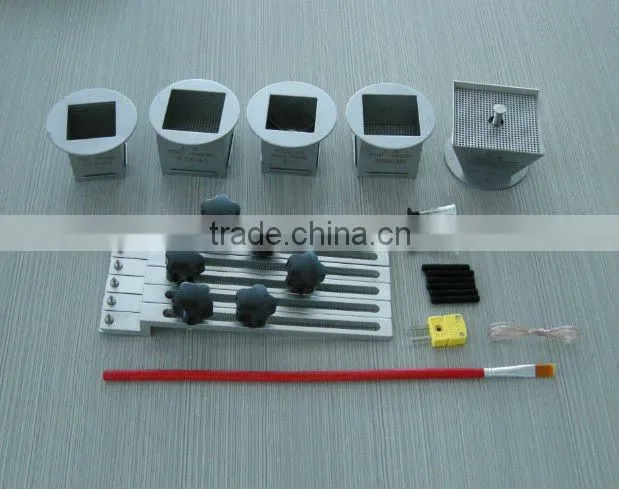

Dinghua DH-A1 parts of showing
chips below can be repaired
