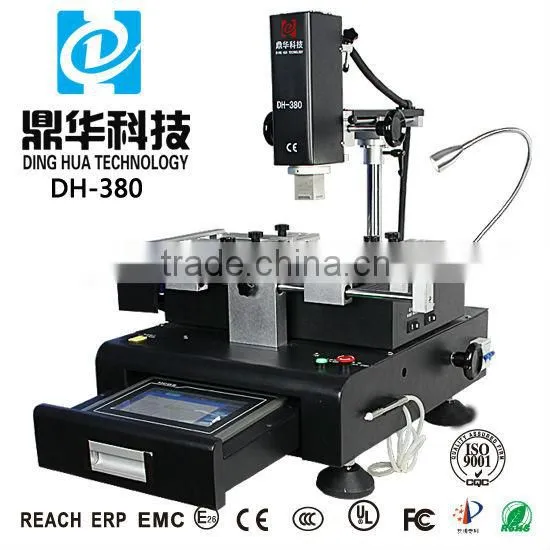

DH-380 bga rework station for motherboard repairing / soldering / desoldering equipment:
Specification:
Total Power |
4400W |
Top heater |
800W |
Bottom heater |
Second heater 1200W, IR preheating 2400w |
Power |
AC220V±10% 50/60Hz |
Dimensions |
L570*W550*H570mm |
Positioning |
V-groove, PCB support can be adjusted in any direction with external universal fixture |
Temperature control |
K Sensor, Closed loop |
Temp accuracy |
±2°C |
PCB size |
Min: 20mm*20mm, Max: 320mm*375mm |
BGA chip |
2*2~80*80 |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
1(optinal) |
Net weight |
30 kG |
DH-380 the related pictures :

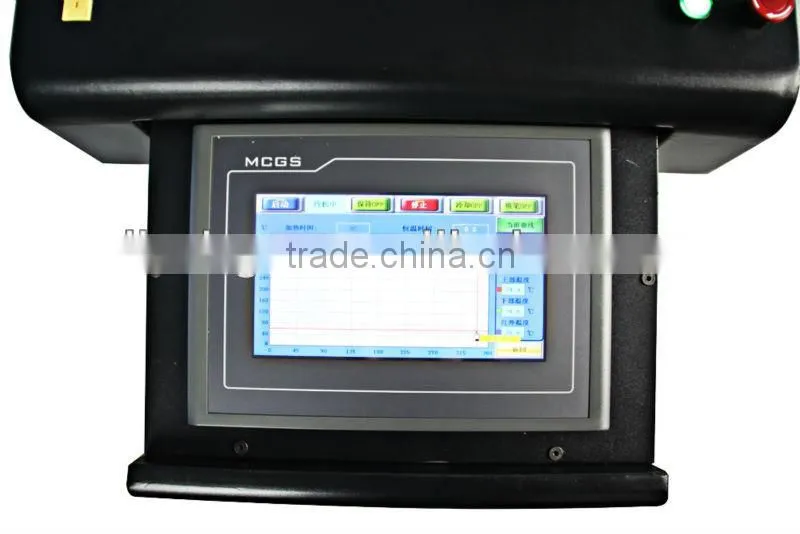

1. Interface operating

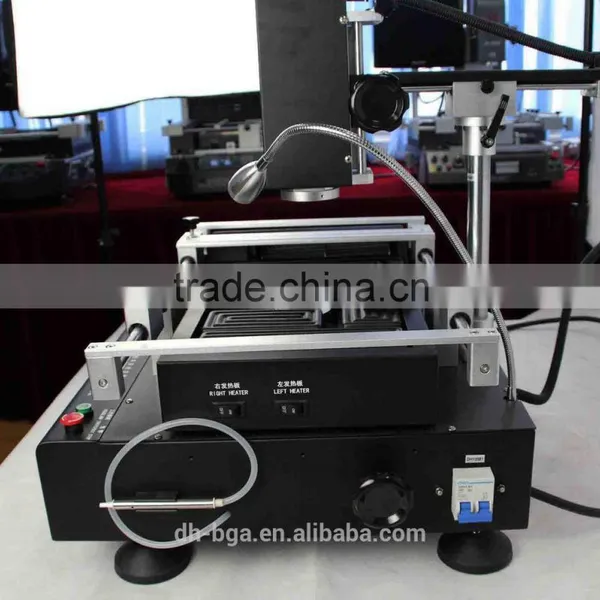

2. Back of DH-380

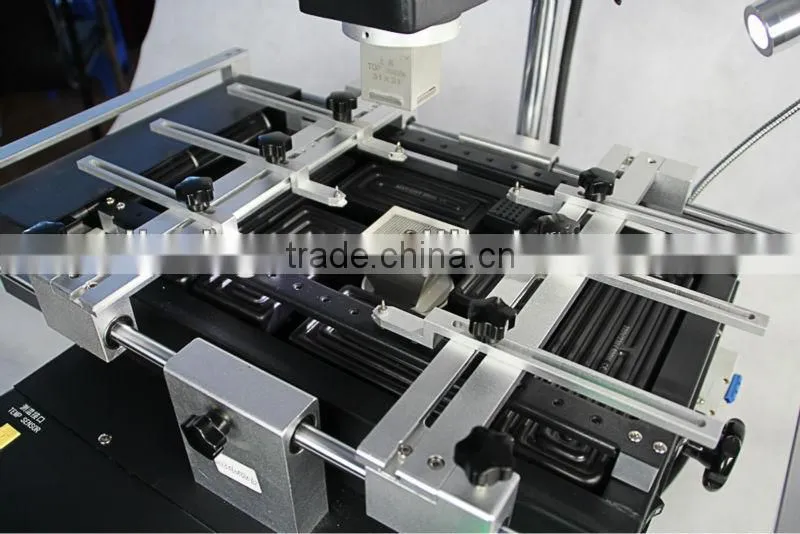

3.Upper heater, bottoom heater and infrared heating board

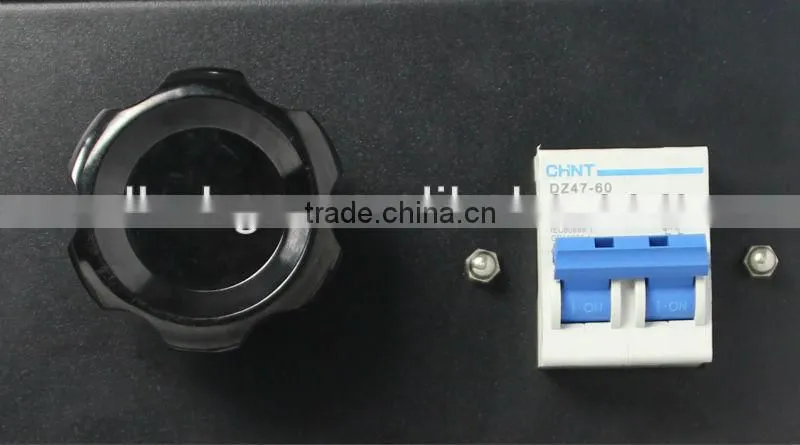

4.The buttom of bottom heater, switch of the machine .

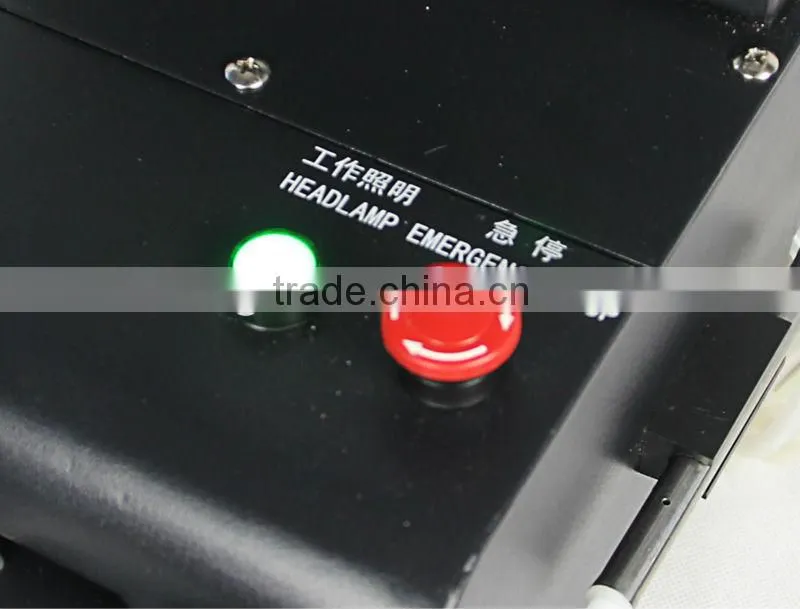

5. Head lamp and emergency stop

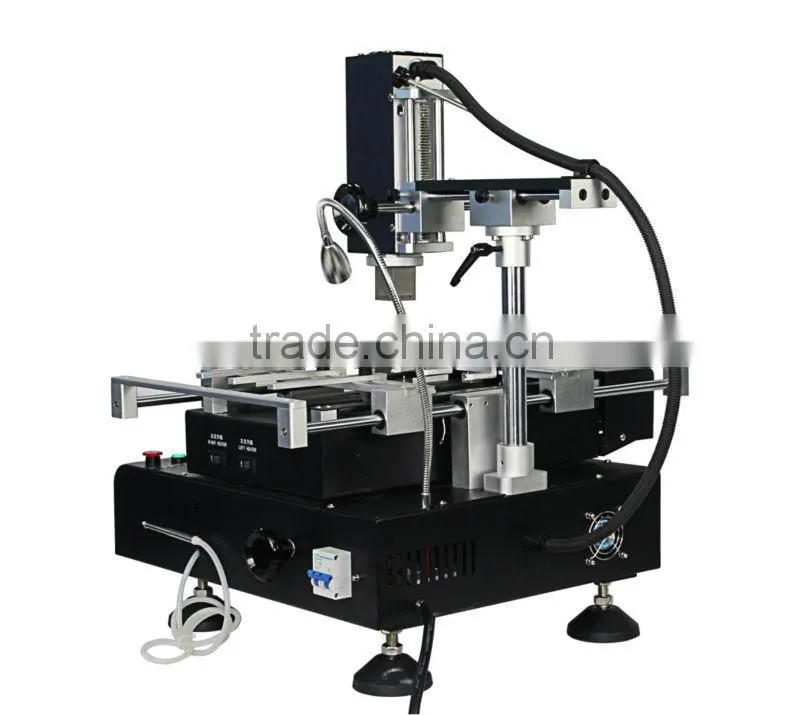

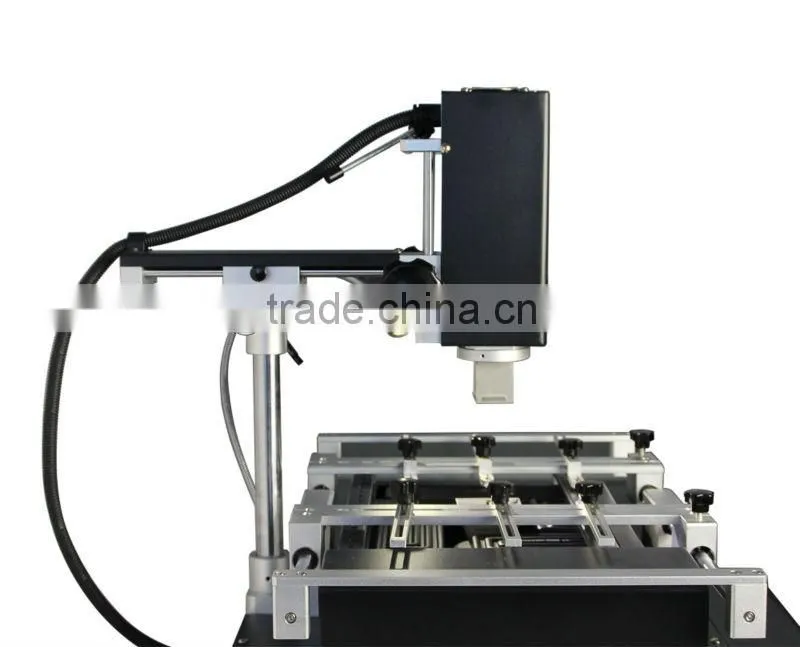

6. The side of machine
8. Workshop
Features:
1. ARM control system and laser positioning, repairing all kinds of computer motherboards and PC.
2. 7 inches HD touch screen control, faster and more stable system run speed.
3. Three independent heaters, all can set 8 segments heating, cooling and constant temperature, saved temperature profile is unlimited. IR preheat area can be controlled according to PCB size.
4. K sensor close loop control and automatic temperature compensation system. It combines with temperature module, which enables temperature accuracy to ±2°C.
5. Different sizes Hot air nozzles, 360 degree rotation, easy to install and replace, customized is available.
6. V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board. External vacuum pen easy for taking BGA chip.
7. Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation. External vacuum pen for handling BGA chip.
8. Sound hint system. There is an alarm before the completion of each desoldering and soldering.
9. CE certification, with emergency switch and automatic power-off protection device when emergency happens
10. Three years warranty for the heating system, one year for the whole machine
(Two years longer than other companies), free life-long technical support
Certificate of patent:
