Dinghua BGA rework machine repairing loptop/mobile motherboars bga chip desoldering and soldering machine , instead of wave solder pot and hot bar soldering machine.
1. Adopt linear slide which makes X, Y, Z axis all can do micro adjust or rapid positioning, with high precision, easy operation.
2. High definition touch screen (Taiwan) , PCL control, can save multiple groups profile, password protection and modify function, equipped with instant temperature curve analysis function;
3. There are 3 independent heating areas. The 1st and 2nd are hot-air heaters, the 3rd is IR preheating.
4. Offer all kinds of hot-air nozzle, it can rotate 360°. With magnet, easy to install and change, customized is available;
5. K-type thermocouple (closed loop), heating independently, temperature precision within ± 3degree.
6. V-groove PCB support can be adjusted in any direction with external universal fixture, suitable for all kinds of BGA repair.
7. powerful cross-flow fan rapidly cool the PCB board to improve efficiency; Also built-in vacuum pump and external vacuum suction pen, pick up the chips rapidly.
8. After finishing de-soldering & soldering, There is an alarming and alarming in advance.
9. CE certificate, with emergency stop and Automatic power-off protection device when abnormal accident happens;with a double overheating protection control.
DH-5830 Specification
Total Power |
4800W |
Top heater |
800W |
Bottom heater |
Second heater 1200W, IR preheating 2700w |
Power |
AC220V±10% 50/60Hz |
Dimensions |
L635*W600*H560 mm |
Positioning |
V-groove, PCB support can be adjusted in any direction with external universal fixture |
Temperature control |
K Sensor, Closed loop |
Temp accuracy |
±2°C |
PCB size |
Max 450*550 mm Min 20*20 mm |
BGA chip |
2*2~80*80 mm |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
1 pc (optinal) |
Net weight |
45KG |

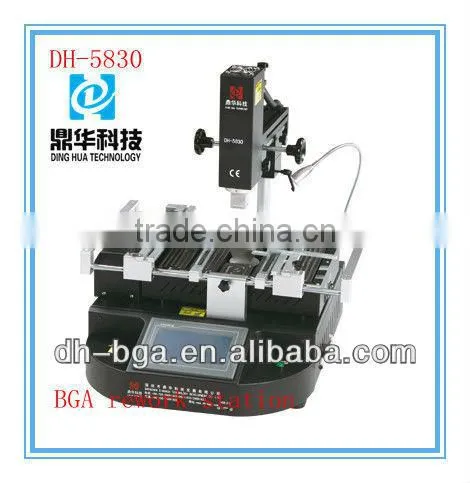

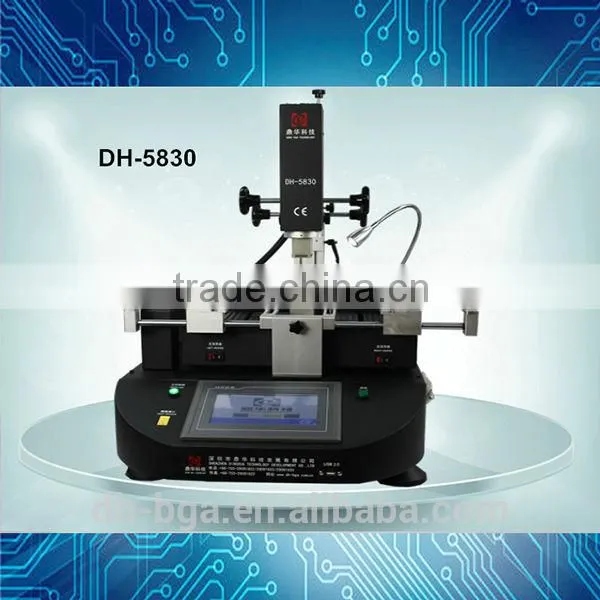

The related picturers
