Dinghua welding machine/semi-automatic welding inverter/t12 soldering iron/936d rework station laptop DH-B1
Specifications:
Power supply |
AC220V±10% 50/60Hz |
Power |
4800W |
Top heater |
Hot air 1200W |
Bottom heater |
Hot air 1200W, Infrared 2700W |
Positioning |
V-groove, PCB support can be adjusted in any direction with external universal fixture |
Temperature control |
K-sensor closed loop control, independent heating |
Temp accuracy |
±2°C |
PCB size |
Max 500*400 mm Min 22*22 mm |
BGA chip |
2*2-80*80mm |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
1(optional) |
Machine dimension |
(L*W*H): 650*680*600mm |
Packing dimension |
(L*W*H): 75*75*63cm |
NW/GW |
approx 45/68KG |
2. Main Features:
lHD touch screen interface, PLC control.
lThree independent heaters all can set 8 segments heating, cooling and constant temperature, saved temperature profile is unlimited. IR preheat area can be choosed according to PCB size
lK sensor close control, control heating process precisely.
lPowerful cross flow fan helps cooling the PCB board fast and prevents it from deformation.
lV-groove PCB supporter for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
lHot air nozzles can be adjusted in any direction
lSound hint system. There is a alarm before the completion of desoldering and soldering.
lCE certification, with emergency switch and automatic power-off protection device when emergency happens
3. Products pictures:

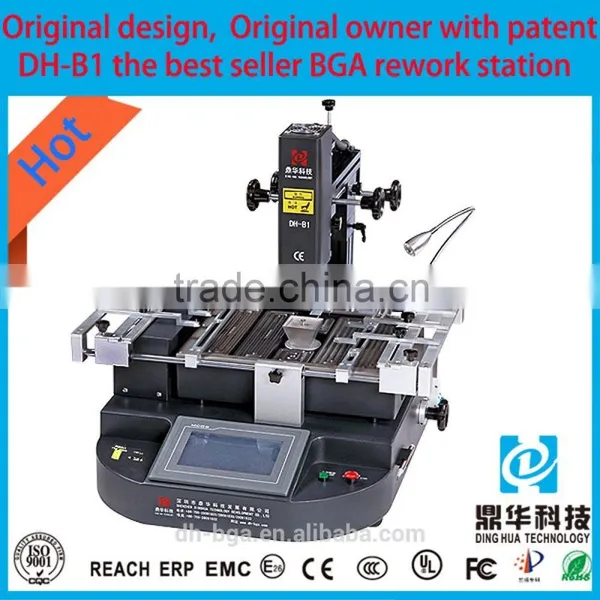

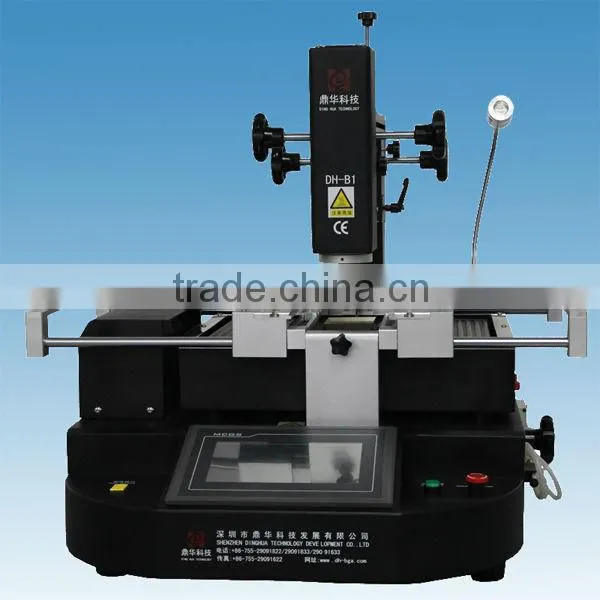

Overview
HD touch screeen interface

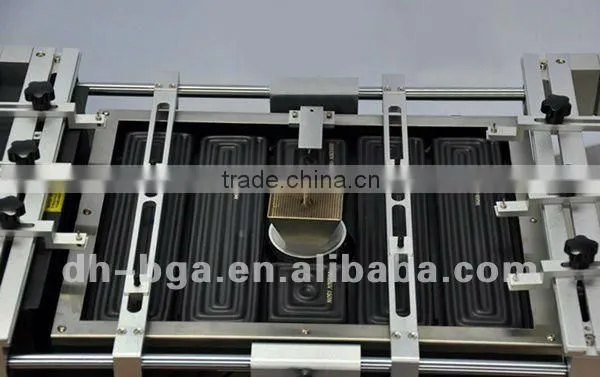

Bottom Hot air& IR heater
Accessories
Reception
Exhibition Room
workshop
