XS6330H Vertical and Horizontal Milling Machine Manufacture
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | LINUO | Model Number | XS6330H | |
| Type | Vertical | CNC or Not | Normal | |
| Voltage | 380V | Power(W) | 5HP | |
| Dimension(L*W*H) | 180*160*220mm | Weight | 1680kg | |
| Certification | CE | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

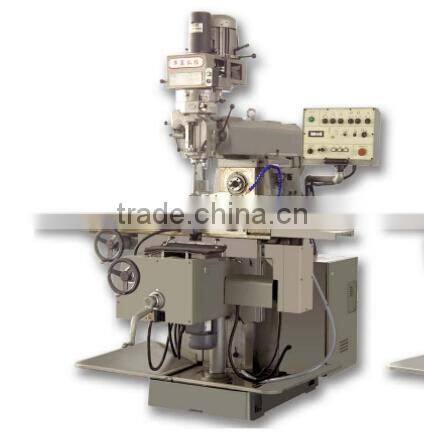

XS6330H vertical and horizontal milling machine manufacture
Parameters of our specification of vertical miling machine:
| Model | Unit | XN6330H | X6330H | XS6330H | |||
| Table size | mm | 300*1300 | 300*1300 | 300*1500 | 300*1370 | 300*1500 | |
| Table longitudinal travel (manual) | mm | 845 | 845 | 1000 | 880 | 1000 | |
| Table cross travel (manual) | mm | 385 | 380 | ||||
| Knee vertical travel (manual) | mm | 435 | |||||
| Table longitudinal feed rate | mm/min | 0-3500 servo motor | ------------ | ||||
| Table cross feed rate | mm/min | ------------ | |||||
| Knee rapid speed | mm/min | 900 | |||||
| vertical spindle | Motor power | hp | 5hp | standard:3hp optional:5hp | |||
| Speed | rpm | standard: 16 steps: 50HZ:65-4500,60HZ:80-5440 Optional: variable speed:65-3750 | |||||
| Taper | ISO40 | standard:R8 optional:ISO40 | |||||
| Quill travel | mm | 127 | |||||
| Quill feed | mm/rev | 0.04/0.08/0.15 | |||||
| Head rotating | R/L 90° | R/L 90° B/F 45° | |||||
| Distance from spindle end to table surface | mm | 115-545 | |||||
| Horizontal spindle | Motor power | hp | 5hp | ||||
| Speed | rpm | 50HZ:45/80/165/260/500/980 60HZ:55/100/200/315/600/1180 | |||||
| Taper | ISO40 | ||||||
| Distance from spindle end to table surface | mm | -430 | |||||
| Distance from spindle center to ram | mm | 183 | |||||
| Ram travel | mm | 480 | |||||
| Ram rotating | 360° | ||||||
| Net weight | kg | 1900 | 1900 | 1950 | 1680 | 1730 | |
| Package size L*W*H | cm | 180*150*220 | 180*180*220 | 180*160*220 | 180*180*220 | ||
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
