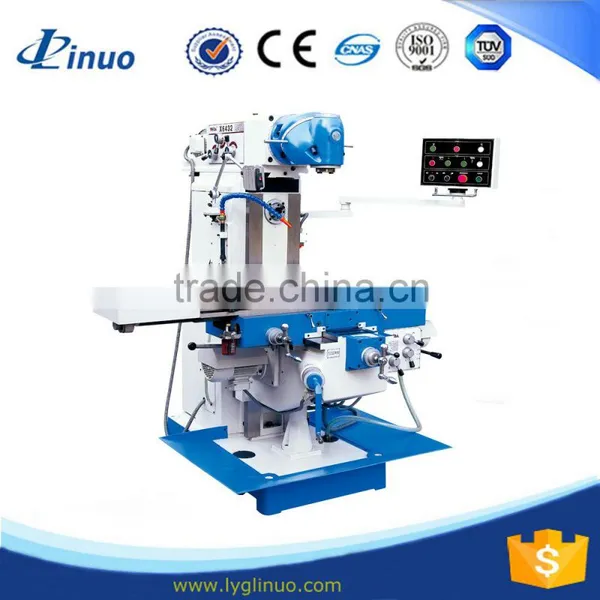

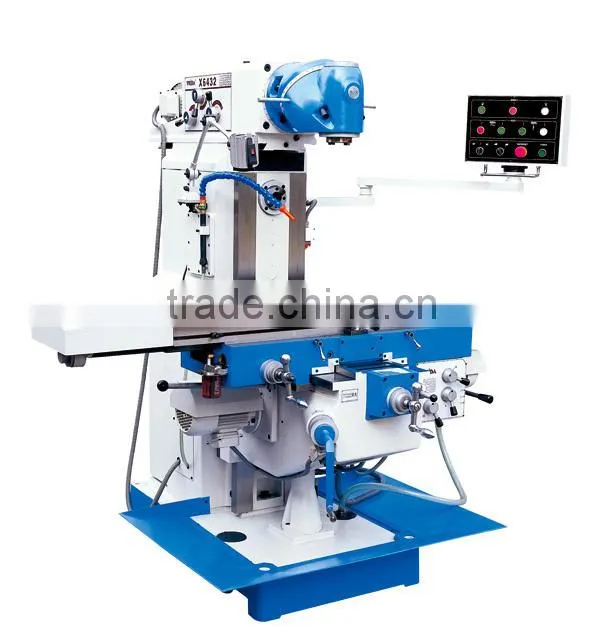

X6432 vertical swivel head milling machine
Product Description for X6432 vertical swivel head milling machine

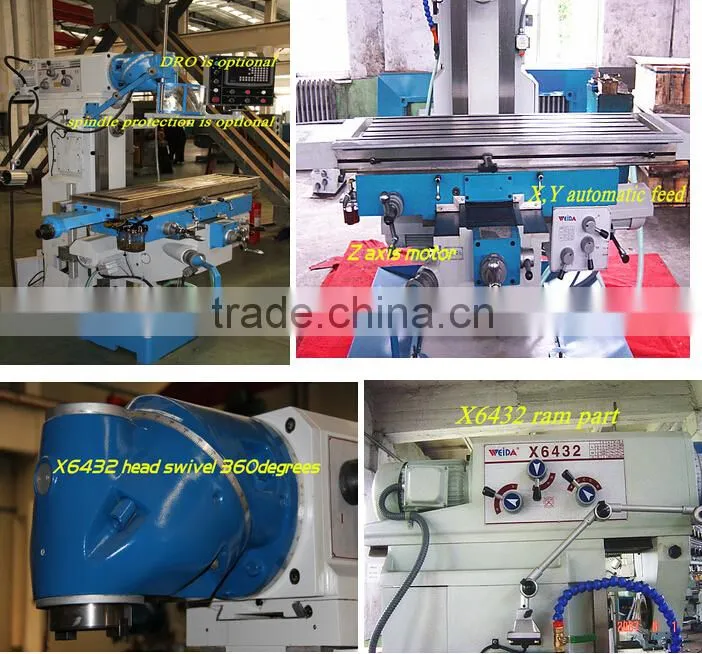

Features:
1. This milling machine with universal milling head which can swivel 360 degress
2. table surface is hardened and ground surface
3.X travel is 1000mm, table size 1320x320mm
unit |
X6432 |
|
Table size |
mm |
1320x320 |
T slot no./width/distance |
no/mm/mm |
5/14/63 |
Max. load of Table |
kg |
300 |
table Longitudinal travel(manual/auto) |
mm |
1000 |
table Cross travel (manual/auto) |
mm |
300 |
table Vertical travel(manual/auto) |
mm |
440 |
Spindle taper |
|
ISO40 |
spindle speed /step -- Vertical |
rpm |
45--1660/11steps |
--Horizontal |
rpm |
38-1310/12steps |
Max.end milling width |
mm |
125 |
Max. vertical milling Dia. |
mm |
25 |
swivel angle of swivel head |
degree |
360º |
vertical spindle axis to column surface |
mm |
200-760 |
vertical spindle nose to table surface |
mm |
200-640 |
horizontal spindle axis to table surface |
mm |
30-450 |
horizontal spindle axis to arm bottom |
mm |
175 |
ram travel |
mm |
460 |
Longitudinal/cross feed |
mm / min |
20-360/8steps |
Vertical/step |
mm/min |
422/1step |
Longitudinal/cross rapid speed |
mm / min |
1200 |
Rapid Traverse vertical |
mm/min |
422/1step |
main motor |
kw |
3 |
feed motor |
kw |
0.55(X/Y), 0.75(Z) |
coolant motor |
kw |
0.04 |
overall dimension |
cm |
202X171X199.4 |
Industrial desktop key bridgeport turret milling machine x6325w
Production&Workshop for X6432 vertical swivel head milling machine
Packaging&Shipping for X6432 vertical swivel head milling machine
Customer&Expo for X6432 vertical swivel head milling machine
Companny information for X6432 vertical swivel head milling machine
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines,bandsaw machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
Our services for X6432 vertical swivel head milling machine
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you.
