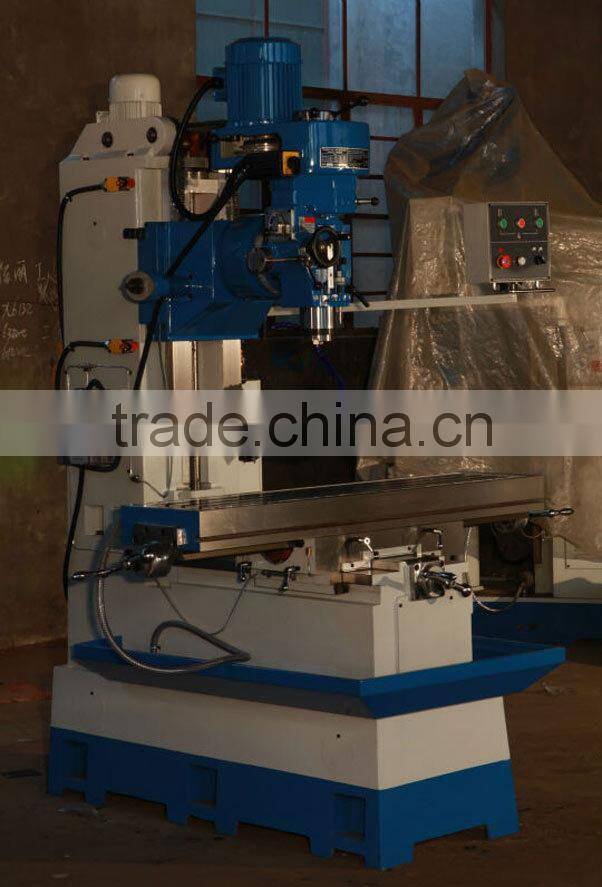

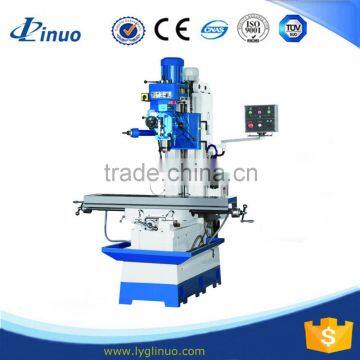

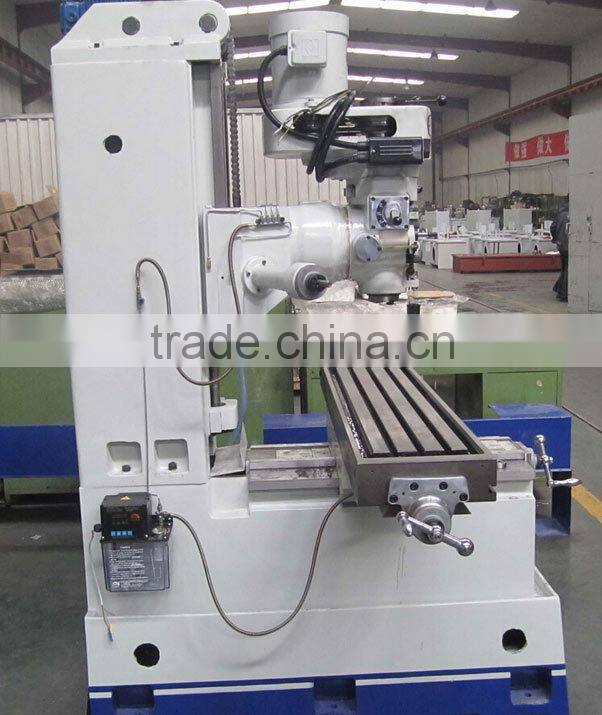

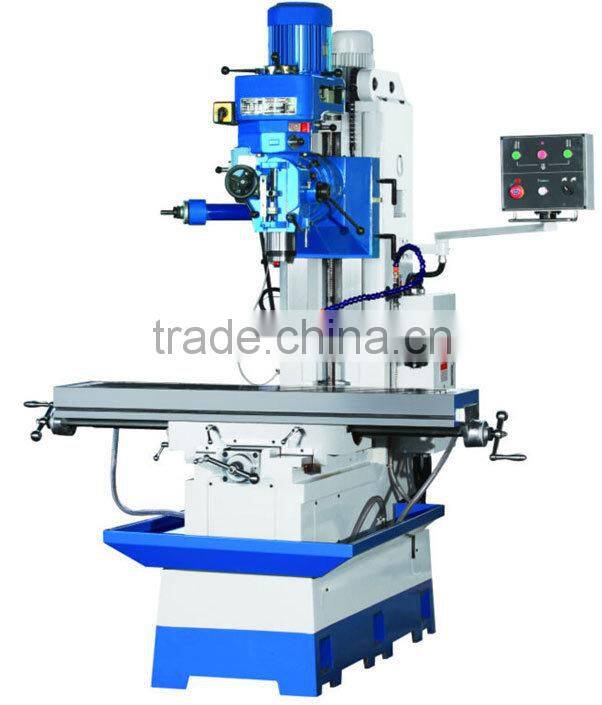

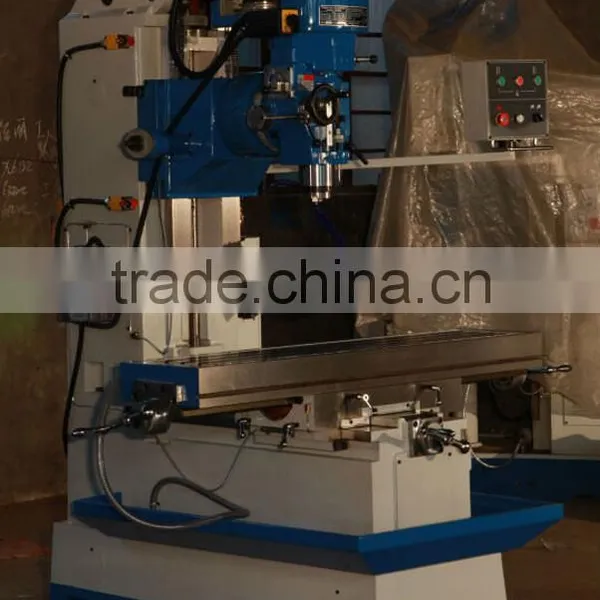

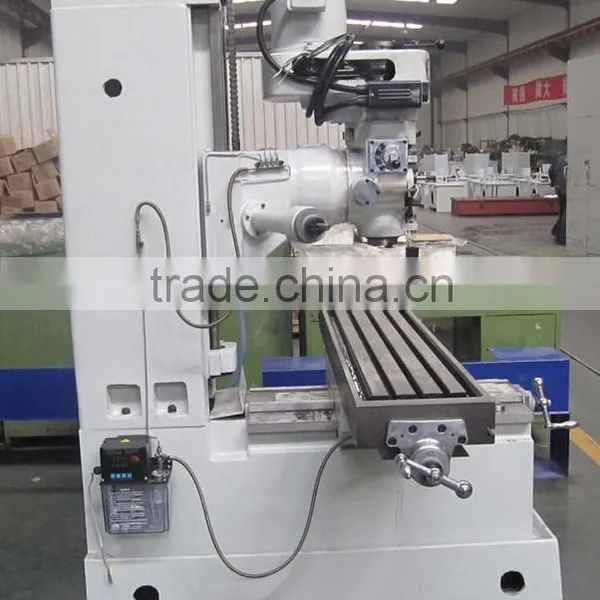

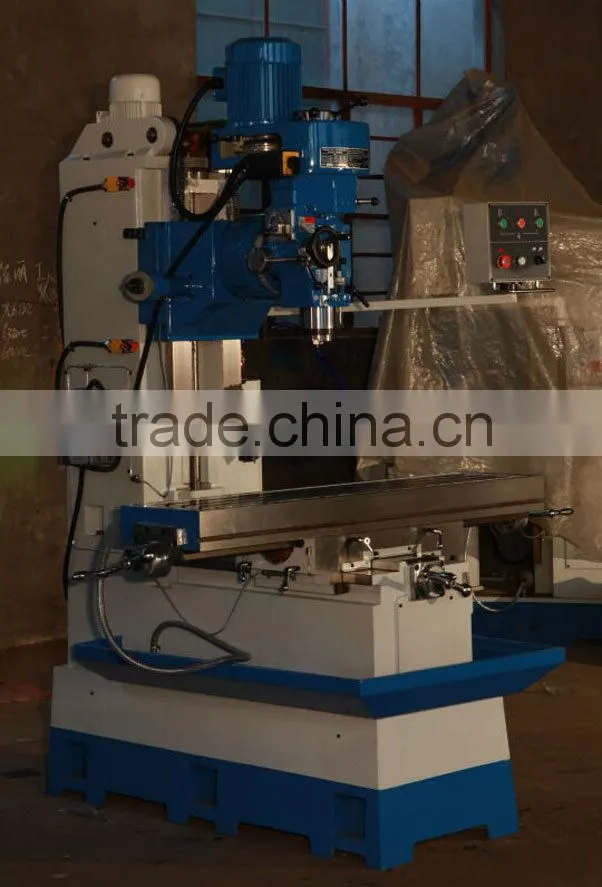

X7125 3axis travel bed type vertical conventional milling machine
bed type vertical milling machine are widely used for processing flat face, slope face, keyway, key groove, slot and drilling, reaming, boring in almost every country all over the world because of the high quality with competitive price.
Taiwan original milling head and 3 axes Taiwan leadscrews make sure our milling machines performance better than others.

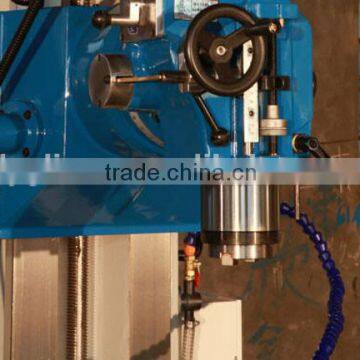

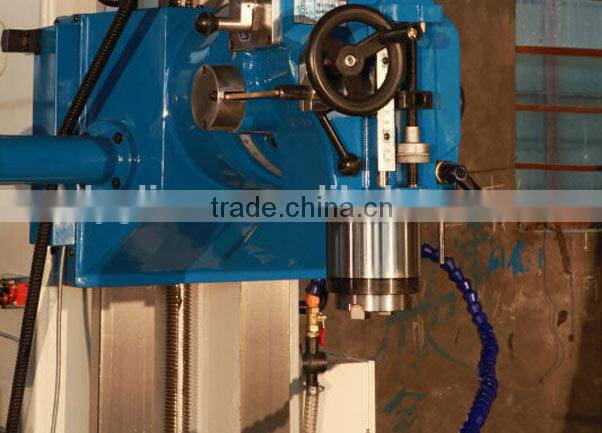

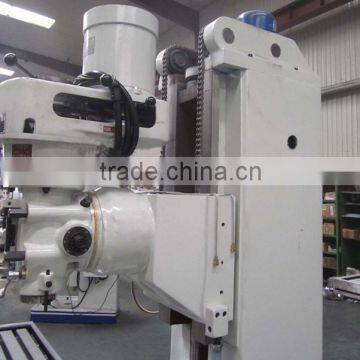

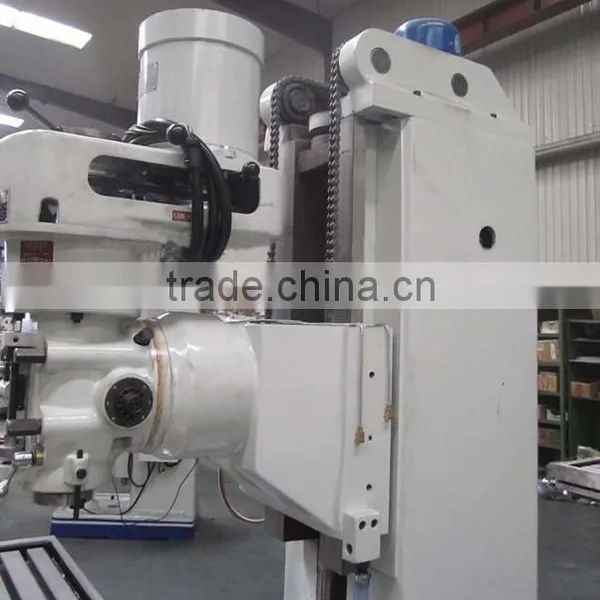

The milling head moves upwards and down wards along the column, the worktable can carry heavy load.The miller can make high precision which is suitable to process high-duty cutting.
NSK P4 bearings are adopted in spindle to improve accuracy of machine and increase the working life.
Parameters of our specification of vertical miling machine:
| Model | Unit | X7125 | X7130 | ||||
| Table size | mm | 254x1270 | 254x1370 | 305x1370 | 305x1500 | ||
| Table longitudinal travel | mm | 760 | 860 | 880 | 1000 | ||
| Table cross travel | mm | 535 | 535 | 510 | 510 | ||
| Milling head vertical travel | mm | 405 | 405 | 405 | 405 | ||
| Distance from Spindle to table | mm | 150~600 | 150~600 | 150~600 | 150~600 | ||
| Milling head | Motor power | HP | 3HP | 3HP | 5HP | 5HP | |
| spindle taper | R8 | R8 | ISO40 | ISO40 | |||
| Quill travel | mm | 127 | 127 | 127 | 127 | ||
| Spindle speed | standard: 16 steps | rpm | 50HZ:65~4500 60HZ:80~5440 | ||||
| Optional: Variable | rpm | 65~2400 | 60~3750 | ||||
| Quill power feed | mm/rev | 0.04/0.08/0.15 | |||||
| Package size | One machine/1 package | mm | 1800x1500x2400 | 1850x1500x2400 | |||
| two machines/1 package | mm | 2200x1500x2400 | 2250x1500x2400 | ||||
| Gross Weight | One machine | kg | 1900 | 1900 | 2000 | 2050 | |
| Two machines | kg | 3900 | 3900 | 4000 | 4100 | ||
Standard accessories:
Draw bar, Tool box, Tools, Oil collecting plate, Auto.Lubicate pump, Coolant pump, Table guard, Working lamp.
Optional accessories:
Digital readout, Power feed, Collet chuck and collets, Clamping kits, Machine vise, Inverter milling head, Variable speed milling head, Air power draw bar.
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
