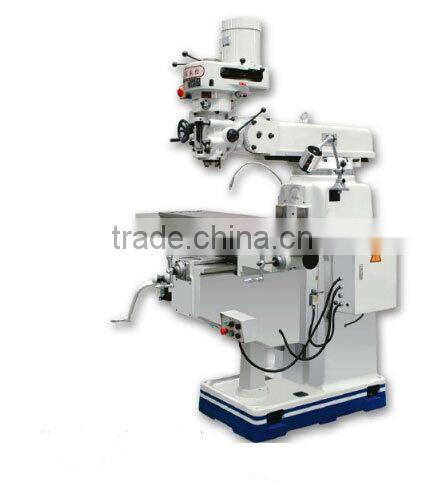

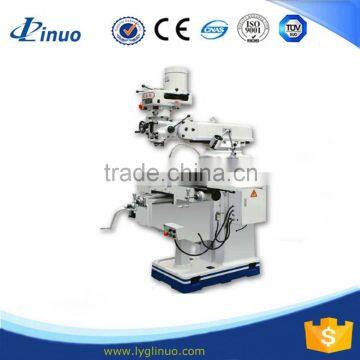

X6333A high precision used vertical milling machine
- 50 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
- Small CNC Milling Machine for School, Hobbist,Prototype,DIY
- YORNEW Desktop CNC Lathe Machine, education cnc, vocation cnc, hobby cnc, diy cnc
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | LINUO |
Model Number: | X6333A | Type: | Vertical | CNC or Not: | Normal |
Voltage: | 380V | Power(W): | 3.75KW | Dimension(L*W*H): | 1800*2016(1650)*2180mm |
Weight: | 2750kg | Certification: | CE | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
X6333A high precision used vertical milling machine
universal turret milling machine are widely used for processing flat face, slope face, keyway, key groove, slot and drilling, reaming, boring in almost every country all over the world because of the high quality with competitive price.
Taiwan original milling head and 3 axes Taiwan leadscrews make sure our milling machines performance better than others.

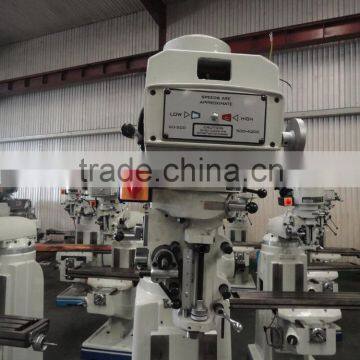

For the milling head, we choose the 5HP milling head with Φ100mm quill for X6333 and X6333A. 5HP milling head get the better performance than 3HP milling head, which can make the machine more efficiently and profitable. Then we make it happened by changing the design and making the ram structure much more stranger to afford the weight increment.
For the saddle of X6333/A, we select a supper strong saddle, so that to make X6333/A can load much heavier than X6323 and X6325. The loading weight of X6333/A is 350KG.
NSK P4 bearings are adopted in spindle to improve accuracy of machine and increase the working life.
Parameters of our specification of vertical miling machine:
Model | X6323A | X6323B | X6325A | X6325B | X6325 | X6325C | X6325D | X6330 | X6330A | X6333 | X6333A | |
Table size | 230*1067 or 230*1246 | 254*1270 or 254*1370 | 254*1270 or 254*1370 | 305*1370 or 305*1500 | 330*1370 or 330*1500 | |||||||
Long travel | 650 840 | 850 950 | 850 950 | 870 1000 | 840 1000 | |||||||
Cross travel | 305 | 400 | 420 | 380 | 368 | |||||||
Vertical travel | 400 | 420 | 420 | 430 | 450 | |||||||
T-slot No. and size | 3*16 | |||||||||||
Ram travel | 312 | 470 | 500 | |||||||||
Distance from spindle nose to table surface | 15-415 | 0-420 | 0-435 | 0-450 | ||||||||
Spindle hole taper | standard:R8 Optional:ISO30/ISO40 | Std:ISO40 | Std:ISO40 | |||||||||
Spindle travel | 127 | |||||||||||
Spindle speed | 16(shiftgrade): 50HZ65-4500 | 16(shiftgrade): 50HZ65-4500 | 16(shiftgrade): 50HZ 65-4500 | |||||||||
Optional:variable 65-4500 | Optional: variable 65-3750 | Optional:variable 65-3750 | ||||||||||
Auto.quill feed | Three grades:0.04(0.0015")/0.08(0.003")/0.15(0.006") | |||||||||||
Spindle motor | 2.25kw/3hp | 3.75kw/5hp | 3.75kw/5hp | |||||||||
Head swivel | 90° | |||||||||||
Head tilting | 45° | fixed | 45° | fixed | 45° | fixed | ||||||
Package | 1set/case | 1400x1476x2030 | 1516x1550x2080 | 1566x1650x2080 | 1800x2016x2180 | |||||||
2sets/case | 1450x1570x2080 | 1650x1790x2170 | 1720x1800x2175 | 1800x2200x2180 | ||||||||
3 sets/case | 1450x2180x2080 | 1650x2285x2235 | ||||||||||
N.W./SET | 1100 | 1160 | 1380 | 1420 | 1550 | 1590 | 1590 | 1700 | 1750 | 2300 | 2350 |
Standard accessories:
Draw bar, Tool box, Tools, Oil collecting plate, Auto.Lubicate pump, Coolant pump, Table guard, Working lamp.
Optional accessories:
Digital readout, Power feed, Collet chuck and collets, Clamping kits, Machine vise, Inverter milling head, Variable speed milling head, Air power draw bar.
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
