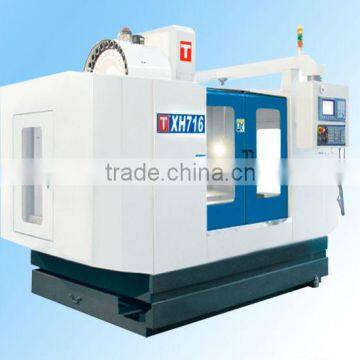

XK716 Vertical Cnc Milling Machine

Name: XK716 Vertical Cnc Milling Machine
Brand: linuo
SKU: 114848037
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

linuo

Lianyungang Linuo Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name linuo

Model Number XK716

Type Vertical

CNC or Not CNC

Voltage 380V 50Hz

Power(W) 11kw

Dimension(L*W*H) 2920*2930*2530

Weight 6500kg

Certification CE

Warranty one year

After-sales Service Provided Overseas service center available

Specifications

1.XK716 CNC Milling Machine.
2.FANUC 0i mate-MD CNC system.
3.3-axis block guideway.

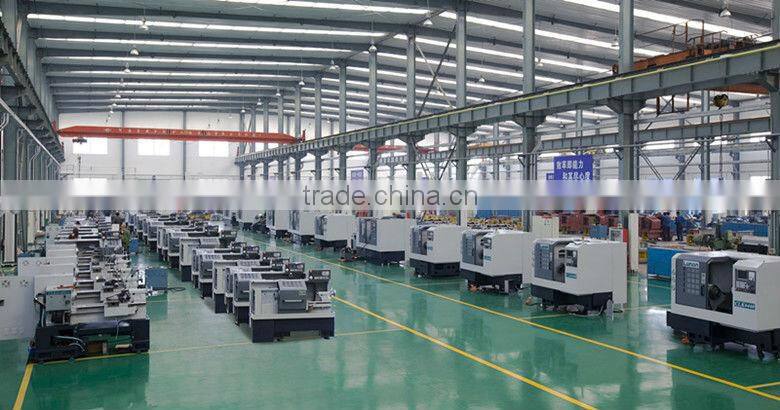

XK716 vertical cnc milling machine

Features:

Main Accessories

STANDARD ACCESSORIES	OPTIONAL ACCESSORIES
3-axis block guideway	The 4th-axis./The 5th-axis
FANUC 0i mate-MD CNC system	FANUC 0i MD, siemens 802DSL,HNC-21/22MD, GT-150im,mitsubishi M 64SM CNC system
High precision and speed spindle unit(8000rpm)	Spiral chip removal device
Floating tools clamping system.	Forceful cutting washing system
Separated type electronic handwheel	Oil cooling spindle
Standard exterior RS232 interface
Designing with oil and water separated.
Interval auto-lubricating
Full splash guard

Main technical parameters

Specification	Unit	Technical parameters
Specification	Unit
X-axis travel	mm	1000
Y-axis travel	mm	600
Z-axis travel	mm	500
Spindle nose to table	mm	150-650
Spindle center to column guide-way face	mm	655
High speed feeding of X,Y axis	mm/min	15000
High speed feeding of Z axis	mm/min	12000
Feeding speed	mm/min	1-5000
Table size	mm	600×1300
Max.loading capacity of table	kg	850
T-slot NO./width/distance of table		5/18/125
Spindle max.speed	r/min	8000
Main motor rated power	kw	7.5/11
Spindle nose taper		BT40
Max.length of tools	mm	300
Max.weight of tools	kg	6
Positioning accuracy	mm	0.02
Re-positioning accuracy	mm	0.012
Pneumatic press	mpa	0.6
N.W	kg	6500
Overall dimension	mm	2920×2930×2530
