WM-X5032A/B Vertical Knee-type Milling Machine

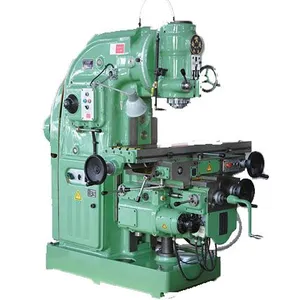

WM-X5032A/B Vertical Knee-type Milling Machine thumbnail-1
WM-X5032A/B Vertical Knee-type Milling Machine thumbnail-2
WM-X5032A/B Vertical Knee-type Milling Machine thumbnail-3
WM-X5032A/B Vertical Knee-type Milling Machine photo-1

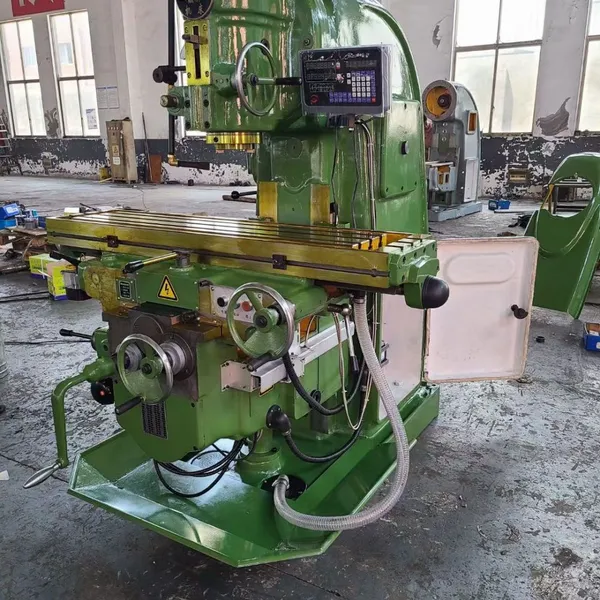

WM-X5032A/B Vertical Knee-type Milling Machine photo-2
WM-X5032A/B Vertical Knee-type Milling Machine photo-3
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Knee-and-Column Milling Machine
Structure:
Lifts
Controlling Mode:
CNC
Contact Supplier Request Quote Chat Now
Suzhou Kemashi Precision Machinery Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Knee-and-Column Milling Machine
Structure Lifts
Controlling Mode CNC
Automatic Grade Manual
Object Hardware
Condition New
Precision Precision
Milling Cutter Type Other
Milling Cutter Structure Integral
Main FeYou can let me know the specific processing requirements you have, such as the workpiece size, workpiece material, and other relevant information. Alternatively, you can send the drawings to me. Our technician will help your company select the most suitable equipment for your products based on the details of your


For any inquiries, please reach out to me via email at 15312152915@163.com.

I work for a trading company based in China, and we sell a wide range of mold processing equipment, including:

Grinding machines

Milling machines

Machining centers

Wire-cut EDM machines

Medium-speed wire-cut EDM machines

Measuring instruments

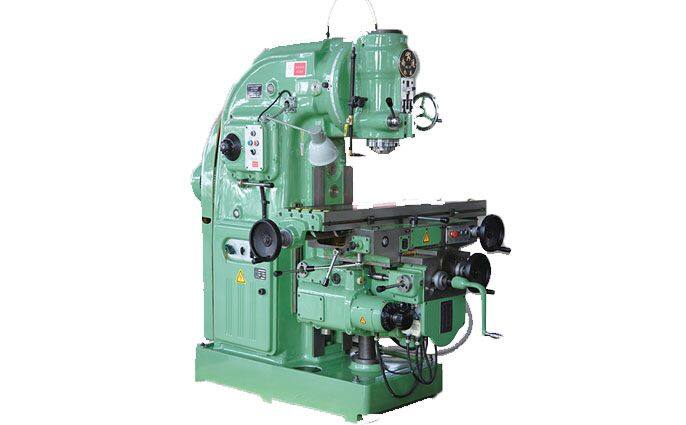

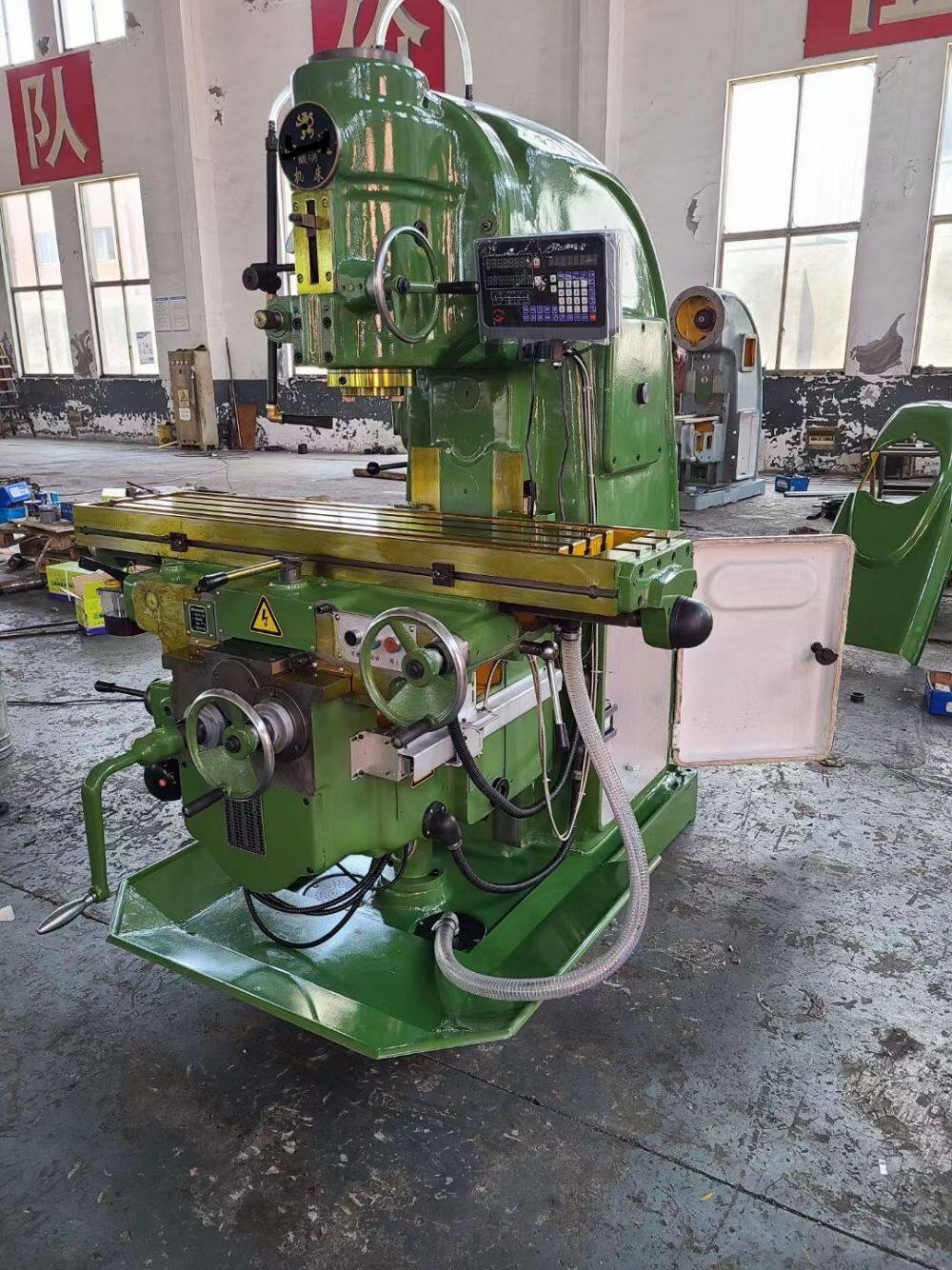

The X5032 Vertical Knee-type Milling Machine consists of a machine bed, base, knee, worktable, vertical milling head, main drive and speed change mechanism, feed drive mechanism, and electrical components. Its main features are as follows:

  1. The worktable moves along the saddle to achieve longitudinal movement; the saddle moves along the knee to achieve transverse movement; the vertical movement is realized by the knee moving along the machine bed guideways.

  2. The machine’s basic castings have high rigidity, enabling it to withstand heavy-load cutting operations.

  3. Both the spindle drive and feed drive adopt an 18-speed gear transmission system, providing a wide speed range and an extensive processing scope.

  4. The machine’s electrical control complies with the national standard GB5226.1-2002, enhancing safety and reliability.

  5. The machine has strong versatility and good interchangeability. It can be equipped with accessories such as an index head, rotary table, boring tool holder, and milling chuck to further expand its processing range.

  6. Wear-prone parts are equipped with backlash elimination adjustment devices, ensuring the machine’s precision and stable operation.

This machine is suitable for milling various planes, inclined planes, grooves, gears, etc., using various rod-type milling cutters, angle milling cutters, and face milling cutters.
III. Main Specifications and Technical Parameters
Item Specification Unit
Worktable Area (Width × Length) 320 × 1320 mm
T-slots on Worktable 3-18 × 70 mm
Worktable Stroke (X/Y/Z) (Manual) 700 / 255 / 350 mm
Worktable Stroke (X/Y/Z) (Power-driven) 680 / 240 / 330 mm
Spindle Taper Hole 7:24 ISO50 -
Tool Holder Type XT50 -
Spindle Speed 18 speeds, 30 - 1500 r/min
Spindle Motor Power 7.5 Kw
Maximum Swivel Angle of Vertical Milling Head ±45° -
Manual Vertical Stroke Sleeve: 70 mm
Distance from Vertical Spindle End Face to Worktable Surface 45 / 415 mm
Distance from Vertical Spindle Centerline to Machine Bed Guideway 350 mm
Feed Speed Range (X/Y/Z) 18 speeds: 23.5 - 1180 / 15 - 786 / 8 - 394 mm/min
Rapid Traverse (X/Y/Z) 2300 / 1540 / 770 mm/min
Feed Motor Power 2.2 Kw
Maximum Load Capacity of Worktable 500 Kg
Machine Weight (Approx.) 2800 Kg
Machine Overall Dimensions (Length × Width × Height) 2272 × 1770 × 2094 mm
Standard Accessories End mill arbor, arbor wrench, Morse taper adapter sleeve, milling tool holder sleeve, milling machine pull rod, various wrenches, anchor bolts, RS232 communication cable -
Special Accessories (Priced Separately) Boring head, bench vice, milling chuck, rotary table, milling cutter head, end mill


Product Tags: WM-X5032A/B Vertical Knee-type Milling Machine , Vertical Knee-type Milling Machine , Universal heavy duty milling machine
