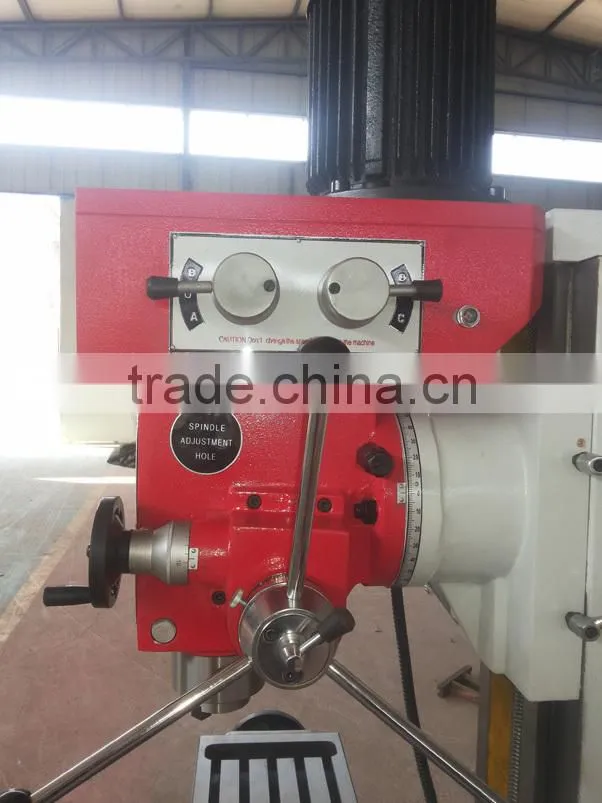

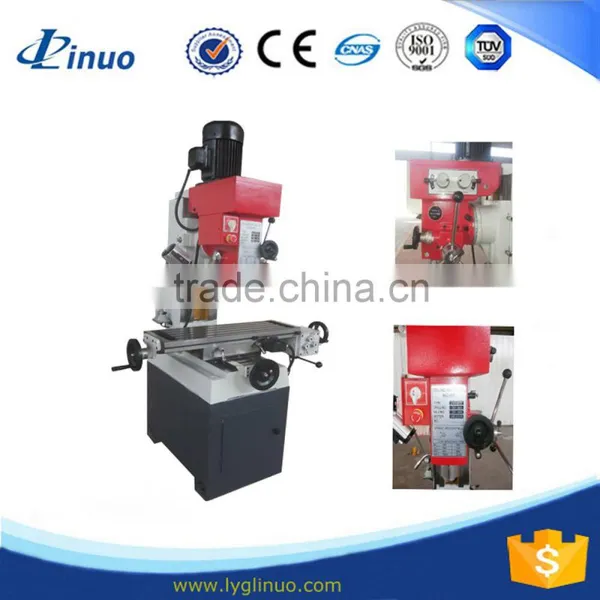

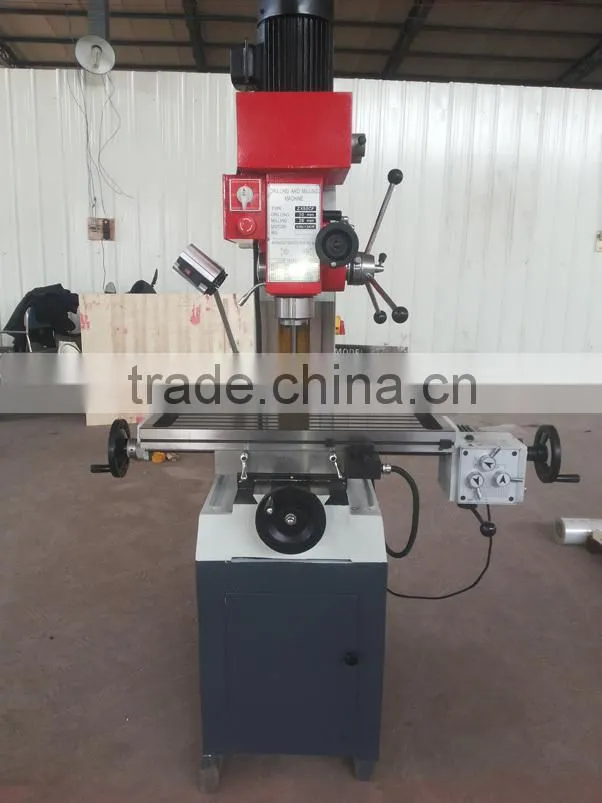

ZX50CF milling and drilling machine
Features:
1.Main Feature
Belt-Drive Milling Head
Dovetail Table Guideways Withstand Larger Overturning Moment
Work Table Surface and Guideways Hardened by Supersonic Frequency Quenching (Depth 2-4MM)
Work Table and Guideways Made by HT200-250 High Strength Cast Iron
Rotary Head
CE ISO Certificated
18 Months Warranty
Professional Design, Easy Operation
Good helper for your machining and maintanance work in your workshops

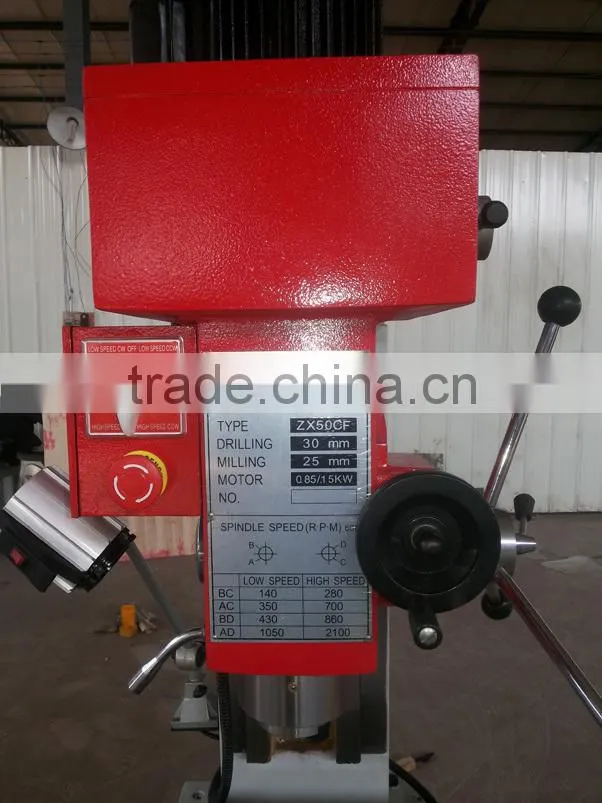

2. Specifications
Specifications |
ZX50CF Milling Machine |
ZX50F Milling Machine |
Max. Drilling Dia. (mm) |
50 |
50 |
Max. Horizontal Milling Dia. |
100 |
100 |
Max. Vertical Milling Dia. |
25 |
25 |
Max. Boring Dia. |
120 |
120 |
Max. Tapping Dia. |
M16 |
M16 |
Spindle Taper |
ISO30, MT4 |
ISO30, MT4 |
Spindle Speeds Range |
115-1750(8) |
230-1825(8) |
Spindle Travel |
120 |
120 |
Table Size (mm) |
800*240 |
800*240 |
Table Travel (mm) |
400*230*380 |
400*230*380 |
Main Motor Power (KW) |
0.85/1.5 |
0.85/1.5 |
N.W./G.W.(Kg) |
500/600 |
500/600 |

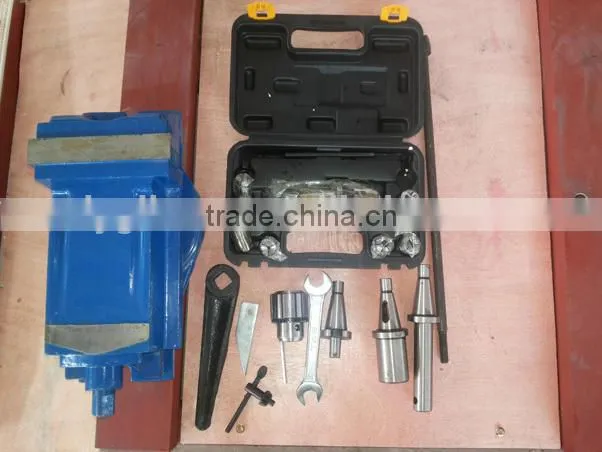

3.Standard Packing List
| No. | Description | Specification | Qty |
| 1 | Milling Machine ZX50CF | 1 | |
| 2 | Drilling Chuck | 16 | 1 |
| 3 | Hexagon Spanner | 5 | 1 |
| 4 | Wedge Shifter | 1 | |
| 5 | Reduction Sleeve | 1 | |
| 6 | Draw Bar | 1 | |
| 7 | Spindle Bar | 1 | |
| 8 | Wrench | S21-24 | 1 |
| 9 | Machine Vice | 160 | 1 |
| 10 | Milling Chuck | 1 | |
| 11 | Operation Manual | 1 | |
| 12 | Quality Certificate | 1 | |
| 13 | Packing list | 1 |
