Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > X6325D Popular Middle Size Universal Turret Milling Machine

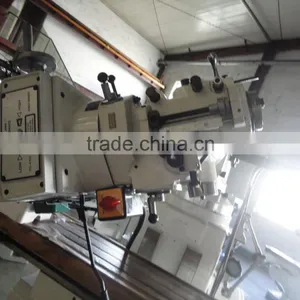

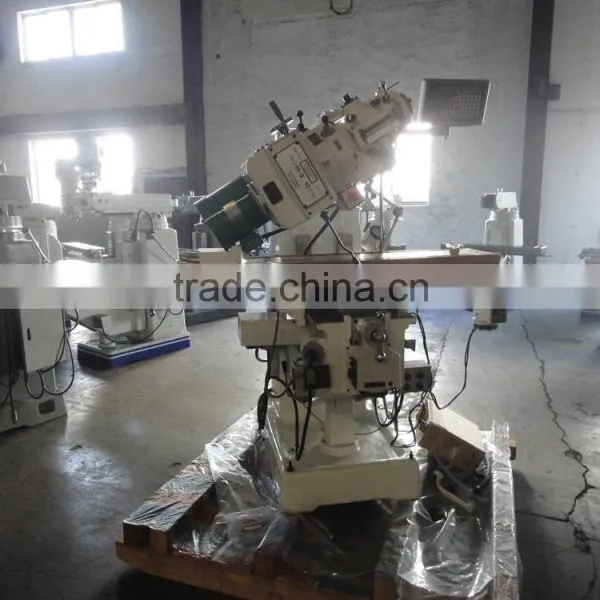

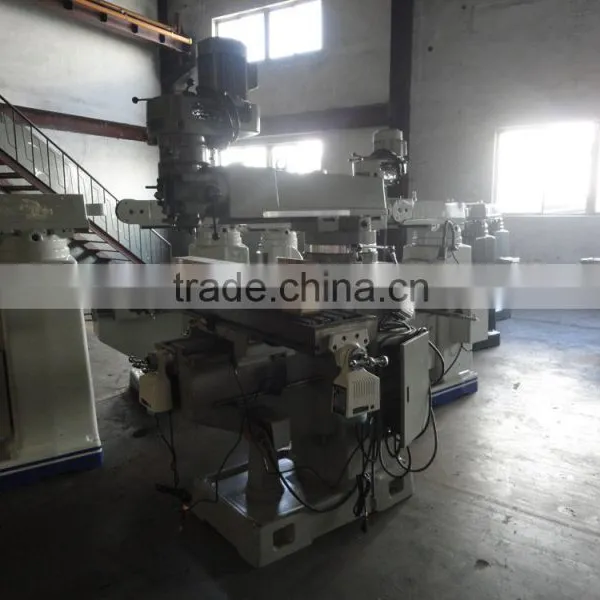

X6325D Popular Middle Size Universal Turret Milling Machine
US$ 2,000 - 6,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
LINUO
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
X6333 Vertical Lifting Motor Milling MachineUS$ 4,000 - 7,000MOQ: 1 Set -
XU6325 Standard Milling MachineUS$ 3,000 - 6,000MOQ: 1 Set
-
X7125 3axis Travel Bed Type Vertical Conventional Milling MachineUS$ 4,000 - 7,000MOQ: 1 Set
-
X7130 Bed-type Vertical Milling MachineUS$ 5,000 - 7,000MOQ: 1 Set
-
X6432 Vertical Swivel Head Milling MachineUS$ 7,000 - 10,000MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
LINUO
Model Number
X6325D
Type
Vertical
CNC or Not
Normal
Voltage
380V
Power(W)
3.75KW
Dimension(L*W*H)
1516*1550*2080mm
Weight
1590kg
Certification
CE
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas

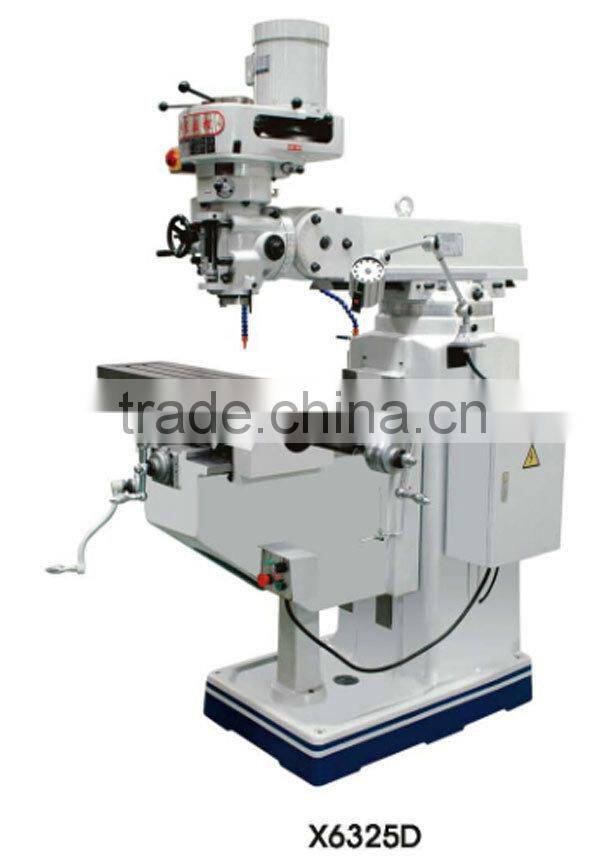

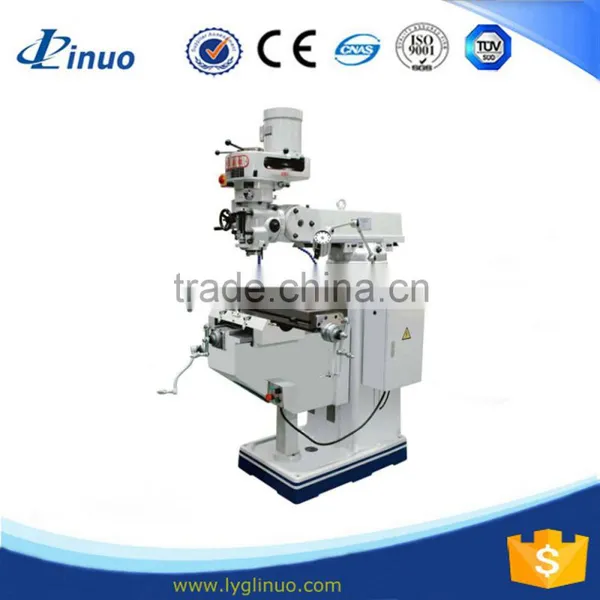

X6325D popular middle size universal turret milling machine
| Model | unit | XU6325 | X6325D | |
| Worktable size | mm | 250*1270(10*50) | 254*127(10*50) 254*137(10*54) | |
| Worktable longitudinal trabel | mm | 770 | 850 950 | |
| Worktable cross travel | mm | 420 | ||
| Worktable vertical travel | mm | 400 | 420 | |
| T- slot No. and size | 3*16 | |||
| Ram travle | mm | 470 | ||
| Distance from spindle nose to table surface | mm | 0-405 | ||
| Spindle hole taper | Standard:R8 Optional:ISO30/ISO40 |
Standard:ISO40 | ||
| Spindle travel | mm | 127 | ||
| Spindle speed | mm/min | Standard: Step speed 16 steps: 50HZ65-4500,60HZ80-5440 | ||
| Optional:Stepless:65-3750 | ||||
| Auto. Quill feed | mm | 3 steps:0.04(0.0015)/0.08(0.003)/0.15(0.006) | ||
| Spindle motor | 2.25kw/3hp | 3.75kw/5hp | ||
| Head swivel | 90° | |||
| Head tilting | 45° | |||
| Packing dimension | One miller per case | mm | 1516*1550*2080 | |
| Two miller per case | mm | 1650*1790*2170 | ||
| three miller per case | mm | 1650*2285*2235 | ||
| G.W/SET | kgs | 1650 | 1590 | |
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
