2 Inch High-temperature, Semi-rigid and Chemical-resistant Fluoropolymer Heat Shrink Tube
- Shenzhen/Guangzhou
You May Like
-
China Wholesale Copper Protective Heat Shrink Busbar Insualtion Tube From Guangzhou Kaiheng
-
KOSOO K-2 3/4 Halogen Free Heat Shrink Tube
-
Flexible Heat Shrinkable Type Clear Insulation Sleeve From in Russian
-
China Suppliers Best Sale Heat Shrinkable Busbar Heat Shrinkable Tube Usa
-
China Suppliers Heat Shrinkable Tube Dual Wall Tube for Wholesale Usa
-
China Suppliers Wholesale Heat Shrinkable Insulation Tube From Usa
Product Details
| Place of Origin | Guangdong, China | Brand Name | KOSOO | |
| Model Number | Kynar | Type | Insulation Sleeving | |
| Material | PE | Application | Low Voltage | |
| Rated Voltage | 600V | Tensile Strength | 35 MPa |
Product Description

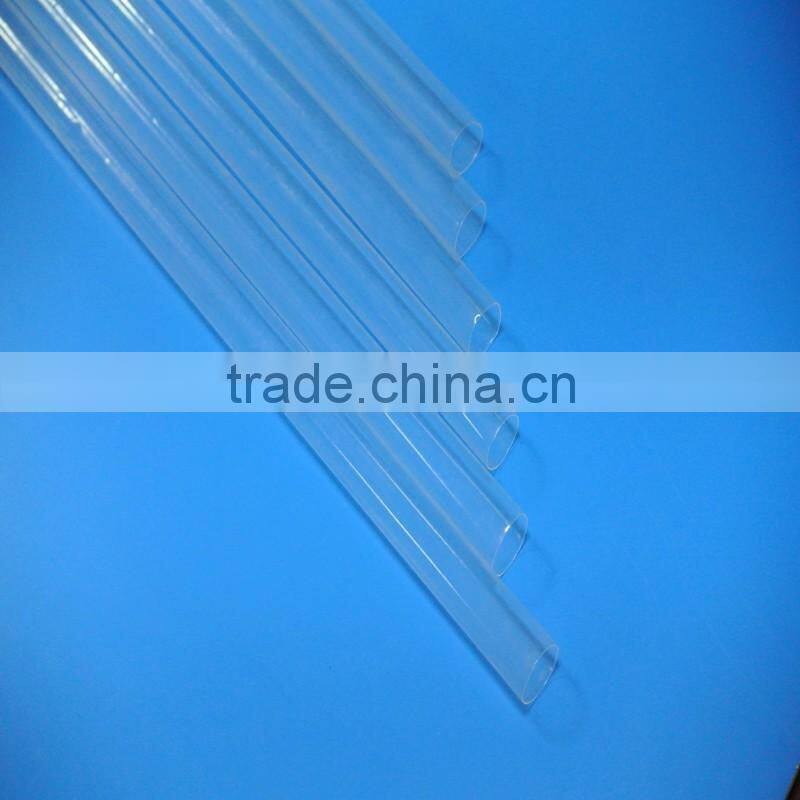

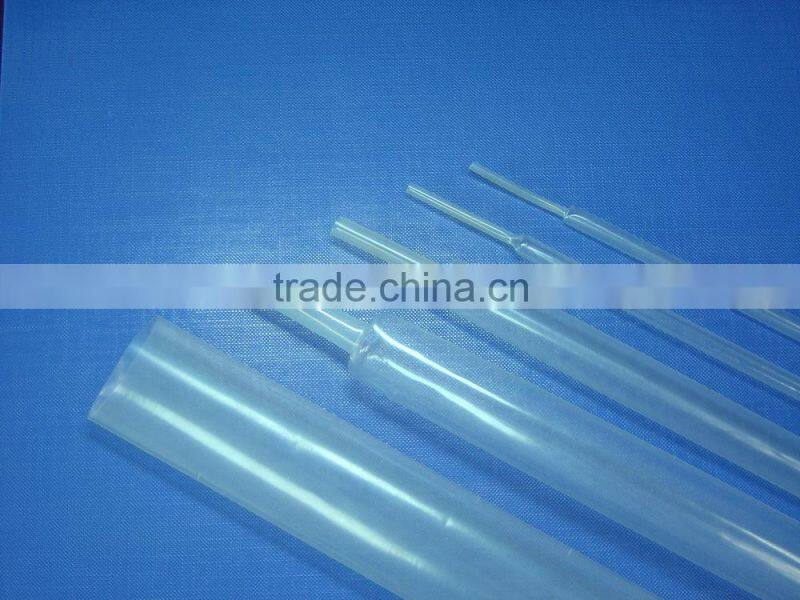

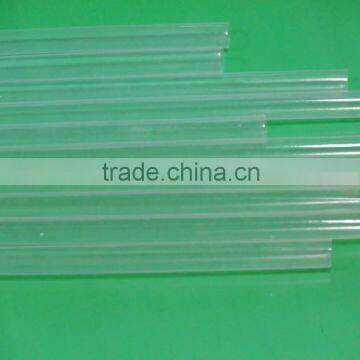

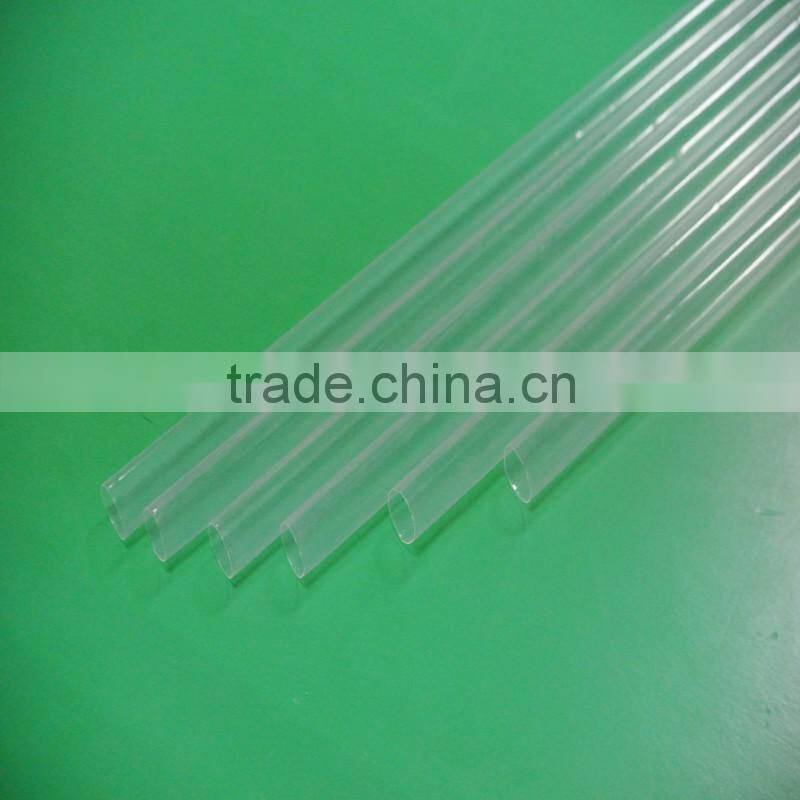

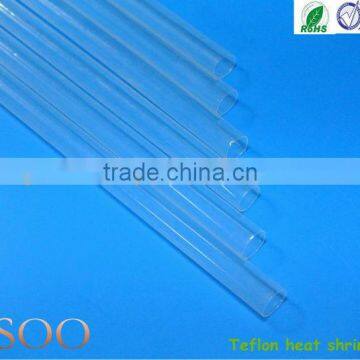

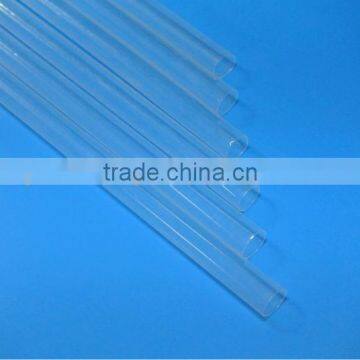

KOSOO Kynar
High-temperature, semi-rigid, chemical-resistant fluoropolymer tubing
Application
KOSOO Kynar has outstanding abrasion resistance, cut-through resistance, chemical and solvent resistance and high-temperature performance. It is especially suitable for applications requiring high-temperature performance. It is also used for insulation and strain relief of soldered joints, identification and inspection of covered components.
Features/Benefits
·Shrink ratio: 2:1.
·Tough, semi-rigid, thin-wall insulation.
·High flame-resistance; high-temperature performance.
·Outstanding chemical and solvent resistance.
·Conform to European RoHS(2002/95/EC) environmental directive.
Operating Temperature Range
·Operating temperature range: -55℃~175℃
·Minimum shrink temperature: 155℃
·Minimum full recovery temperature: 175℃
UL224 150℃ 600V VW-1
AMS-DTL-23053/8
Specification values
| Property | Requirement | Test method | Typical value |
Physical: | Tensile strength | 34.5MPa min. | ASTM D 638 | ≥35MPa |
Elongation | 150% min. | ASTM D 638 | ≥200% | |
Heat shock 300℃, 4hrs | No cracking, dripping or flowing | ASTM D 2671 | Pass | |
Low temperature flexibility -55℃, 4hrs | No cracking | ASTM D 2671 | Pass | |
Aging 250℃,168hrs |
|
|
| |
Elongation after aging | 50% | ASTM D 638 | ≥50% | |
Electrical: | Dielectric voltage withstand | 2500V,60sec, no breakdown | ASTM D 2671 | Pass |
Volume resistivity | 1013Ω·cm min. | ASTM D 876 | ≥1013Ω·cm |
Product mm/inch
Size | Inside diameter | Wall thickness | Standard length | |
As supplied (min.) | After recovery (max.) | After recovery | ||
3/64 | 1.2(0.046) | 0.6(0.023) | 0.25±0.05(0.010±0.002) | 1.2 |
1/16 | 1.6(0.063) | 0.8(0.031) | 0.25±0.05(0.010±0.002) | 1.2 |
3/32 | 2.4(0.093) | 1.2(0.046) | 0.25±0.05(0.010±0.002) | 1.2 |
1/8 | 3.2(0.125) | 1.6(0.063) | 0.25±0.05(0.010±0.002) | 1.2 |
3/16 | 4.8(0.187) | 2.4(0.093) | 0.25±0.05(0.010±0.002) | 1.2 |
1/4 | 6.4(0.250) | 3.2(0.125) | 0.30±0.08(0.012±0.003) | 1.2 |
3/8 | 9.5(0.375) | 4.8(0.187) | 0.30±0.08(0.012±0.003) | 1.2 |
1/2 | 12.7(0.500) | 6.4(0.250) | 0.30±0.08(0.012±0.003) | 1.2 |
3/4 | 19.1(0.750) | 9.5(0.375) | 0.43±0.08(0.017±0.003) | 1.2 |
1 | 25.4(1.000) | 12.7(0.500) | 0.48±0.08(0.019±0.003) | 1.2 |
1 1/2 | 38.1(1.500) | 19.1(0.750) | 0.51±0.08(0.020±0.003) | 1.2 |
2 | 50.8(2.000) | 25.4(1.000) | 0.58±0.08(0.023±0.003) | 1.2 |
Ordering information
Color
Standard: clear (-CL)
Nonstandard colors can be available upon request.
Nonstandard size
Nonstandard sizes are available upon request.
Standard packaging
1.2m /length
Ordering description
Specify product type, size (mm or inch) and color.

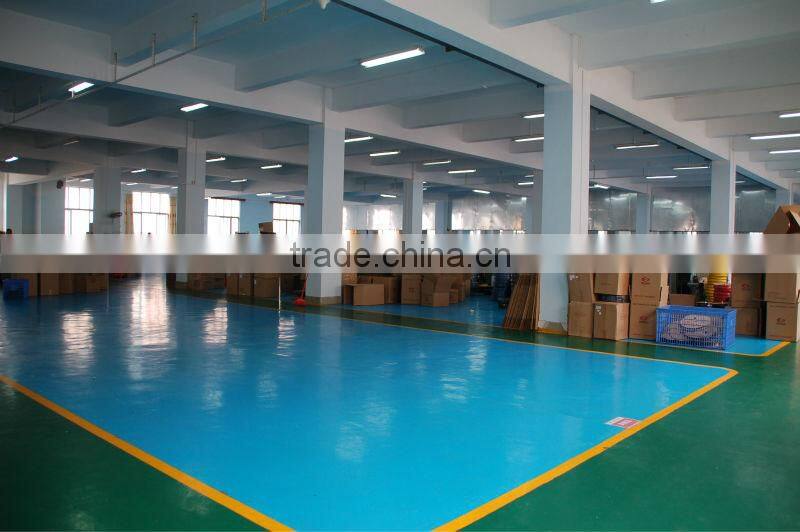

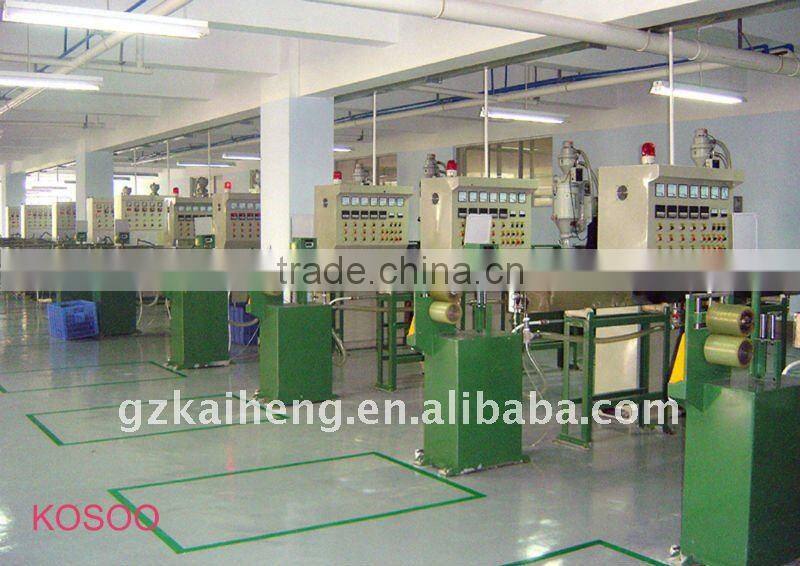

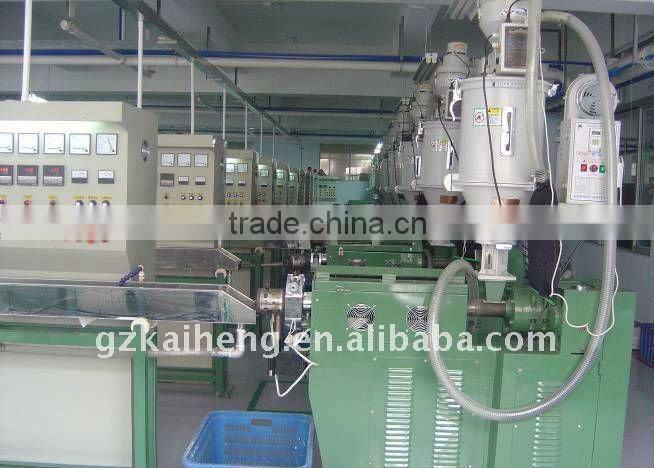

Guangzhou Kaiheng K&S Co., ltdis a major supplier of heat shrinkable tubing offering good-quality products at competitive price. We manufacture and distribute a broad range of heat shrinkable tubings, PVC tubings.Trademarked as KOSOO. Our products meet international standards such as UL, CSA and Milspec as well as international environmental demands.the company is certified to ISO 9001:2000 quality system. The products are widely used in automotive, electronics, telecommunications, appliance and various industries.

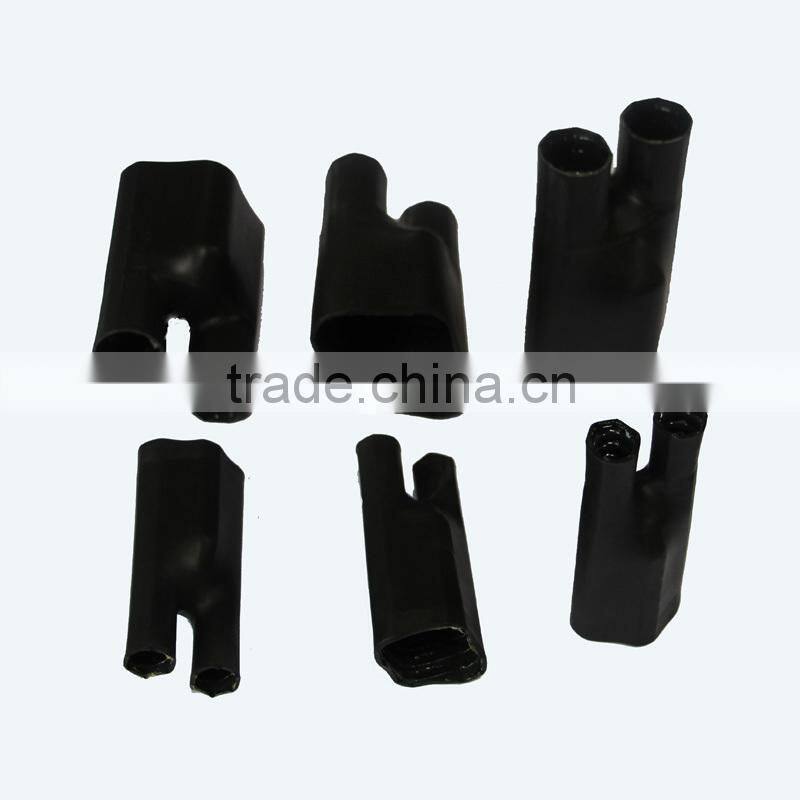

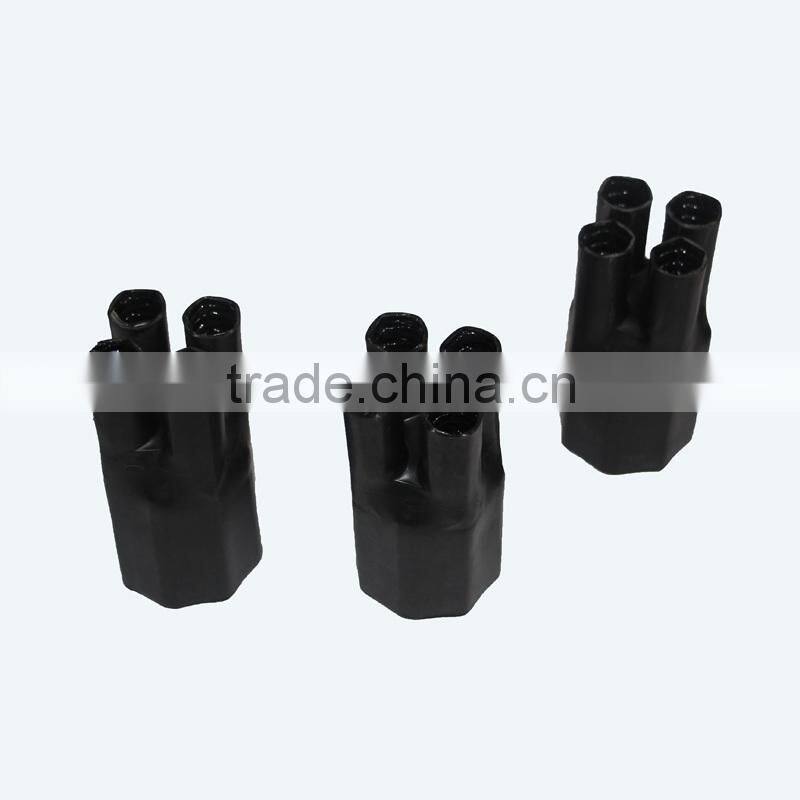

2cores cable breakout

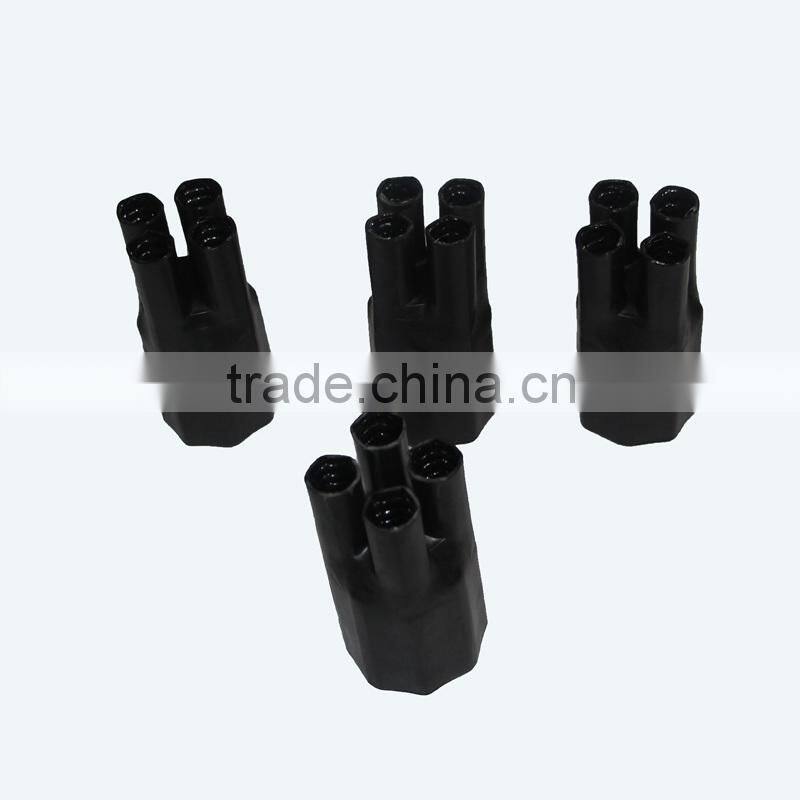

different cores cable breakout
