China wholesale copper protective heat shrink busbar insualtion tube
KOSOO KHBB Heat shrinkable Busbar sleeve
Avoid short circuit fault caused by small animals such as mice,snakes and so on.
Prevent busbar from chemical corrosion effected by strong acid,alkali,salt,etc.
Avoid accidental injury to overhaul persons when they enter electriferous clearance by mistake.
It provides excellent insulation performance to supply required flashover protection for the busbar system,
Voltage class:1KV,10KV,35KV
Available colors:Red Yellow,Green,Black

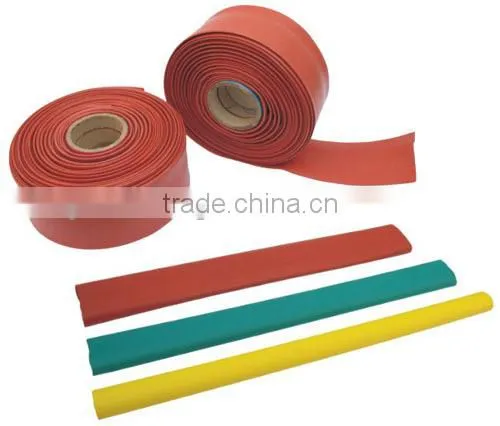

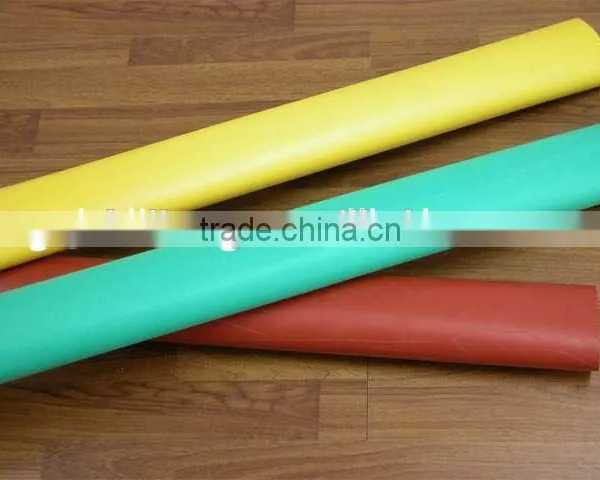

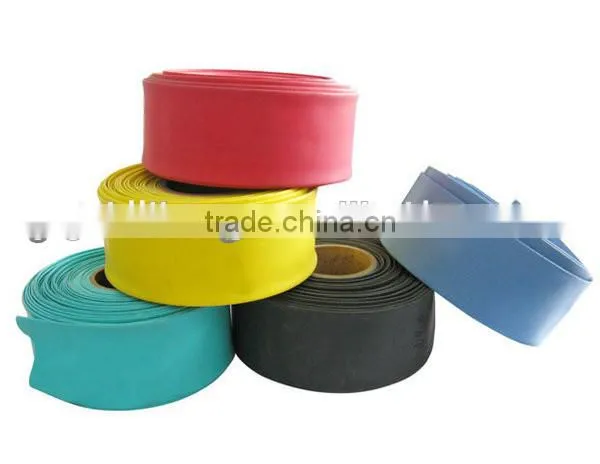

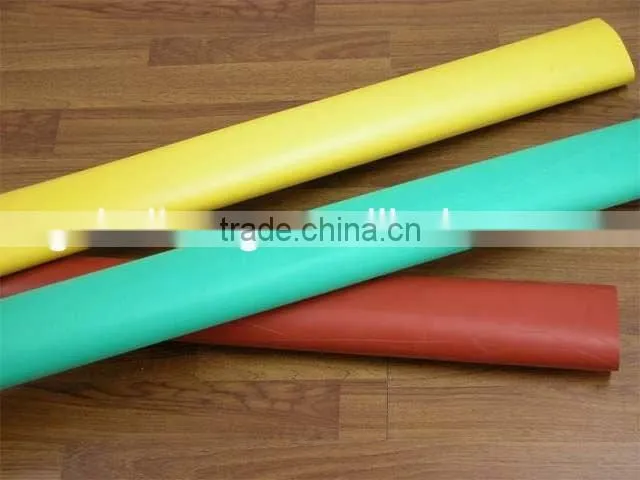

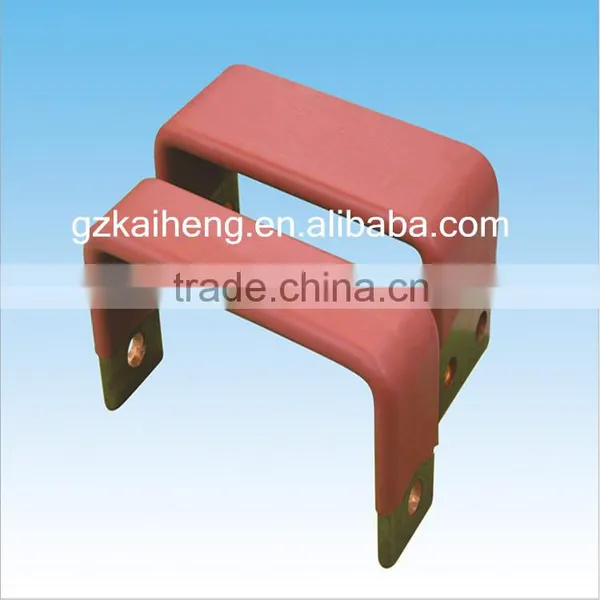

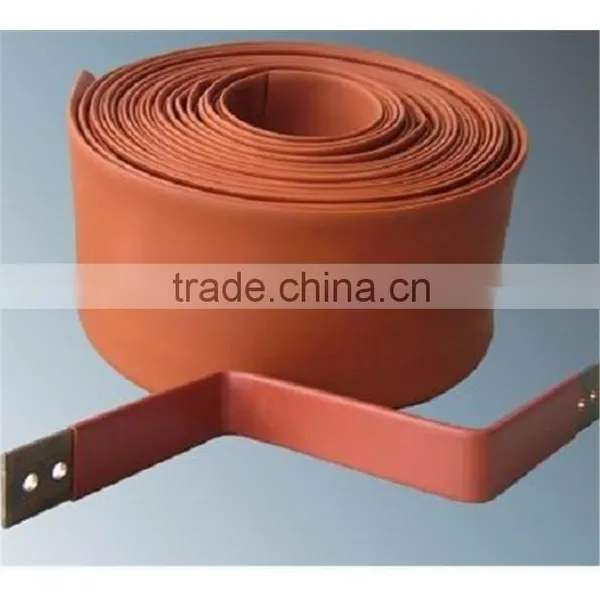

Detailed pictures for heat shrink busbar tube
Product sizes
MM size(10KV)
Size |
|
As supplied(mm) |
After recovery (mm) |
Standard length (m/spool) |
Busbar width(MM) |
Inner Diameter(wall thickness) |
Max.Inner Diameter(wall thickness) |
||
10KV KHBB20 |
20 |
20±0.8(1.0±0.2) |
9(2.5±0.2) |
|
10KV KHBB30 |
30 |
30±0.8(1.0±0.2) |
13(2.5±0.2) |
|
10KV KHBB40 |
40 |
40±1.0(1.2±0.2) |
15(2.5±0.2) |
|
10KV KHBB50 |
50 |
50±2.0(1.2±0.2) |
20(2.5±0.2) |
|
10KV KHBB60/65 |
60 |
65±3.0(1.2±0.2) |
24(2.8±0.2) |
|
10KV KHBB80 |
80/100 |
80±3.0(1.2±0.3) |
32(2.8±0.3) |
|
10KV KHBB100 |
100/120 |
100±4.0(1.2±0.3) |
40(2.8±0.3) |
|
10KV KHBB120 |
150 |
120±4.0(1.2±0.3) |
48(2.8±0.3) |
|
10KV KHBB150 |
200 |
150±4.0(1.2±0.3) |
60(2.8±0.3) |
|
10KV KHBB180 |
MAX |
180±5.0(1.2±0.3) |
70(2.8±0.3) |
|
10KV KHBB210 |
MAX |
210±5.0(1.2±0.3) |
80(2.8±0.3) |
|
10KV KHBB240 |
MAX |
240±5.0(1.2±0.3) |
90(3.8±0.3) |
|
10KV KHBB300 |
MAX |
300±5.0(1.2±0.3) |
100(3.8±0.3) |
|
MM size(35KV)
Size |
|
As supplied(mm) |
After recovery (mm) |
Standard length (m/spool) |
Busbar width(MM) |
Inner Diameter(wall thickness) |
Max.Inner Diameter(wall thickness) |
||
35KV KHBB30 |
30 |
30±1.0(2.0±0.3) |
13(4.0±0.3) |
|
35KV KHBB40 |
40 |
40±1.0(2.0±0.3) |
15(4.0±0.3) |
|
35KV KHBB50 |
50 |
50±2.0(2.2±0.3) |
20(4.5±0.3) |
|
35KV KHBB60/65 |
60 |
65±2.0(2.2±0.3) |
24(4.5±0.3) |
|
35KV KHBB80 |
80/100 |
80±3.0(2.2±0.3) |
32(4.5±0.3) |
|
35KV KHBB100 |
100/120 |
100±4.0(2.5±0.3) |
40(4.5±0.3) |
|
35KV KHBB120 |
150 |
120±4.0(2.5±0.3) |
48(5.0±0.3) |
|
35KV KHBB150 |
200 |
150±4.0(2.5±0.3) |
60(5.0±0.3) |
|
35KV KHBB180 |
MAX |
180±5.0(2.5±0.3) |
70(5.5±0.3) |
|
35KV KHBB210 |
MAX |
210±5.0(2.5±0.3) |
80(5.5±0.3) |
|
Standard packing for heat shrink busbar tube :1M/PC, carton packing

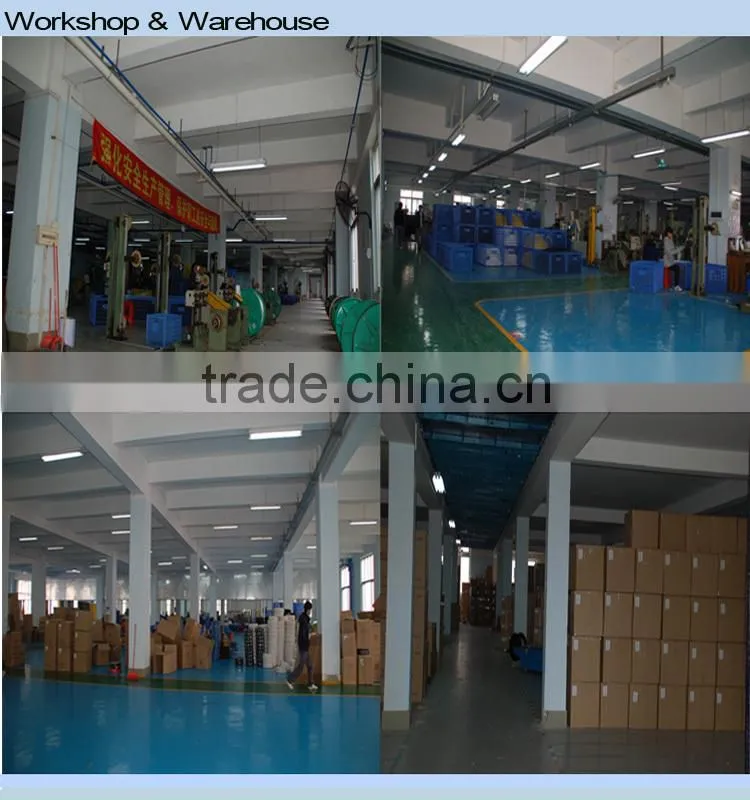

Guangzhou Kaiheng K&S Co.,Ltd is a major supplier of Heat shrinkable tubing offering good quality products at competitive price.We are specialized in this filed for over 15 years.We manufacture and distribute a broad range of heat shrinkable tube,PVC tube.Trademarked as KOSOO. Our products meet international standards such as UL,CSA and Milspec as well as international environmental demands.
1.Reply your inquiry in 24 working hours.
2.Delivery the goods to our customer all over the world with speed and precision.
3.Offer the goods with superior quality.and competitive price.
4.100% QC inspection before shipment.
1.What is the delivery time?
For samples we usually have 2-7 days delivery,for volume production usually 7-25 days.
2.Which certifications do you have?
Most products have UL,CSA and TUV approvals.
3.How about the quality of your products?
Try a small order, and you will know it.
