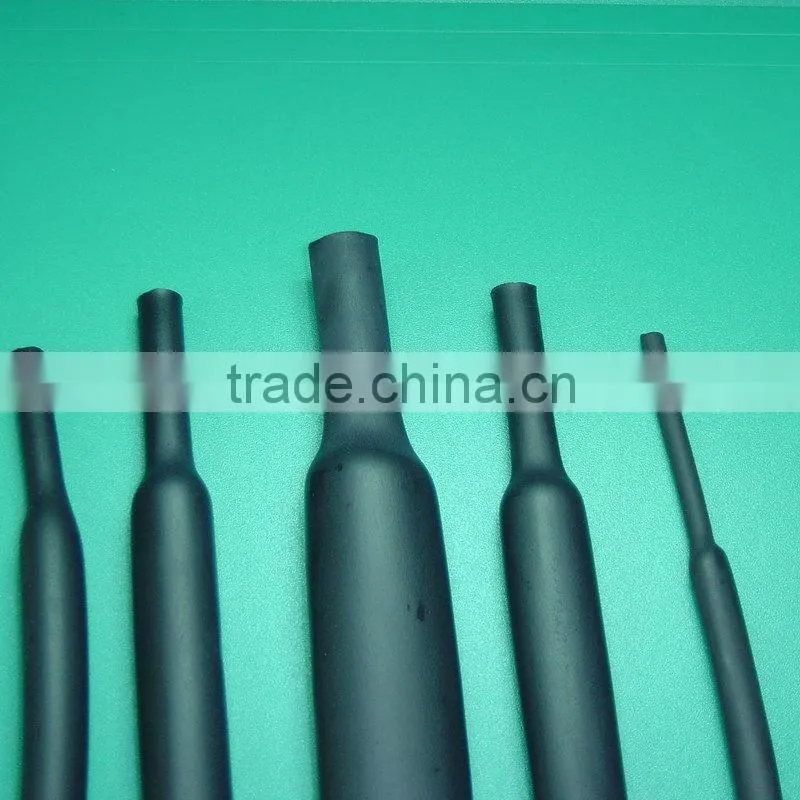

Diesel-resistant Heat shrink tube
With resistance to aviation and diesel fuels, hydraulic fluids, and lubricating oils, this product is ideal for applications require resistance to fuels, fluids and solvents. It is particularly suitable for protecting and bundling of high-performance cables and wiring harnesses.
1. Features:
1) Shrink ratio: 2:1
2) Outstanding fluid and heat resistance
3) Excellent abrasion resistance and mechanical properties
4) Flexible, flame-retardant
5) Free of PCBs, PCPs, polybrominated biphenyls (PBBs), polybrominated biphenyl
oxides and ethers (PBBOs, PBBEs and PBDEs) and toxic heavy metal compounds,
which are classified as environmentally hazardous substances
6) Conforms to European RoHS environmental directive
2. Operating temperature range:
a) Operating temperature range: -75 ~ 150°C
b) Minimum full recovery temperature: 175°C
3. Standards and approvals: AMS-DTL-23053/16
Pictures
Specifications:
Size |
Inside diameter |
Wall thickness |
Standard length (m/spool) |
|
As suppliedmin. |
After recoverymax. |
After recovery |
||
1/8 |
3.20.125 |
1.60.062 |
0.76±0.150.030±0.006 |
100 |
3/16 |
4.80.187 |
2.40.093 |
0.84±0.150.033±0.006 |
100 |
1/4 |
6.40.250 |
3.20.125 |
0.89±0.150.035±0.006 |
100 |
3/8 |
9.50.375 |
4.80.187 |
1.02±0.200.040±0.008 |
50 |
1/2 |
12.70.500 |
6.40.250 |
1.22±0.200.048±0.008 |
30 |
3/4 |
19.10.750 |
9.50.375 |
1.45±0.280.057±0.011 |
30 |
1 |
25.41.000 |
12.70.500 |
1.78±0.280.070±0.011 |
30 |
1 1/2 |
38.11.500 |
19.00.750 |
2.41±0.410.095±0.016 |
15 |
2 |
50.82.000 |
25.41.000 |
2.79±0.410.110±0.016 |
22 |
4. Ordering information:
a) Standard color: black (-BK),Nonstandard colors: available upon requests
b) Nonstandard size, Special sizes are available upon requests
c) Standard packaging: On spools , Specify product type, size (mm or inch) and color
