Rapid shrinking and ulta thin wall heat shrink tube

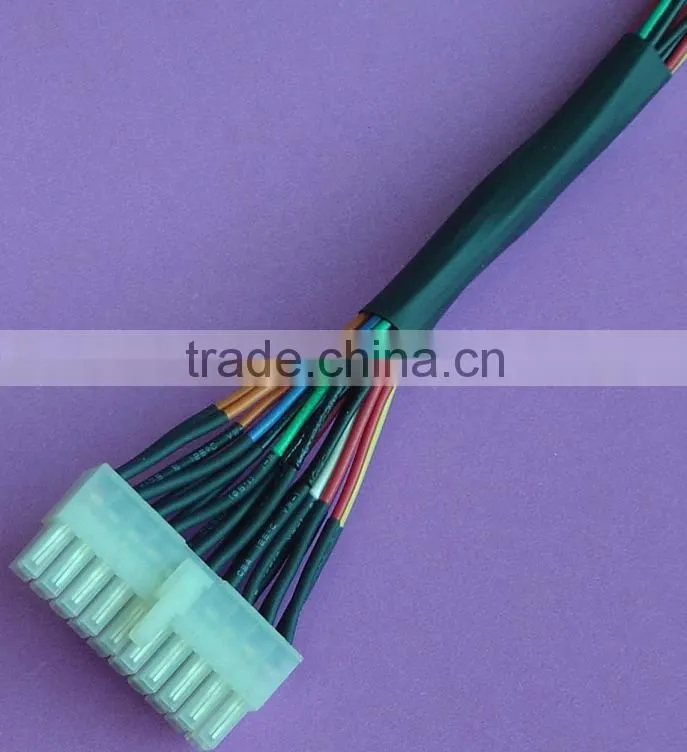

KOSOO K-2 (CB) is environment friendly, ultra thin-wall, flexible, flame-retardant, irradiated crosslinking heat-shrinkable modified polyolefin tubing. It is designed for applications that require an ultra thin wall for rapid shrinking and space saving. Low shrink temperature further reduces installation time and the risk of damage to temperature-sensitive components.
Features/Benefits
·Shrink ratio: 2:1
·Low shrink temperature.
·Ultra thin-wall, rapid shrinking.
·Very flexible, flame-retardant.

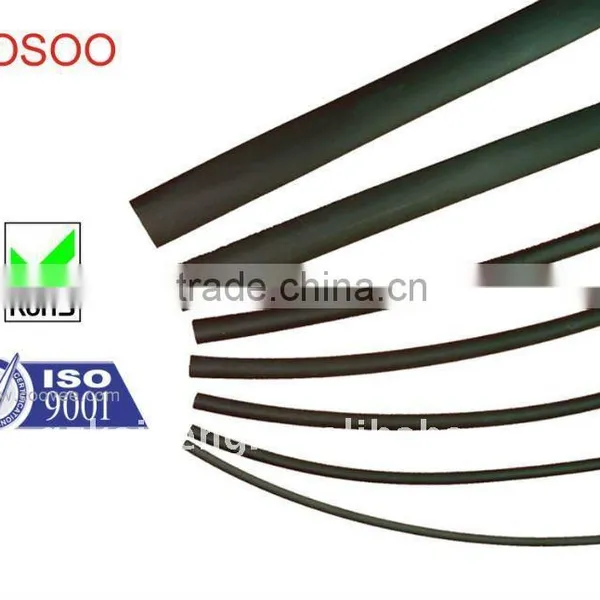

·Free of PCBs, PCPs, polybrominated biphenyls (PBBs), polybrominated biphenyl oxides and ethers (PBBOs, PBBEs and PBDEs) and toxic heavy metal compounds, which are classified as environmentally hazardous substances. Conform to European RoHS environmental directive.
·Wide range of sizes and colors.
Operating Temperature Range
Operating temperature range: -55℃~125℃
Minimum shrink temperature: 60℃
Minimum full recovery temperature: 100℃
Standards/Approvals
UL224 E214175 125℃ VW-1
Specification values
|
Property |
Requirement |
Test method |
Typical data |
Physical: |
Concentricity |
70% min. |
ASTM D 2671 |
≥70% |
|
Tensile strength |
10.4MPa min. |
ASTM D 638 |
≥14.0MPa |
|
Elongation |
200% min. |
ASTM D 638 |
≥400% |
|
Heat shock 250℃, 4hrs |
No cracking, dripping or flowing |
ASTM D 2671 |
Pass |
|
Low temperature flexibility -55℃, 4hrs |
No cracking |
ASTM D 2671 |
Pass |
Aging 158℃,168hrs |
|
|
|
|
Tensile strength after aging |
70% of original min. |
ASTM D 638 |
≥90% |
|
Elongation after aging |
100% min. |
ASTM D 638 |
≥300% |
|
Electrical: |
Dielectric voltage withstand |
2500V, 60sec no breakdown |
UL224 |
Pass |
Dielectric strength |
19.7KV/mm min. |
ASTM D 2671 |
25KV/mm |
|
Volume resistivity |
1014Ω·cm min. |
ASTM D 876 |
≥1014Ω·cm |
|
Chemical: |
Corrosion |
No corrosion |
ASTM D 2671 |
Pass |
|
Flammability |
VW-1 |
UL224 |
Pass |

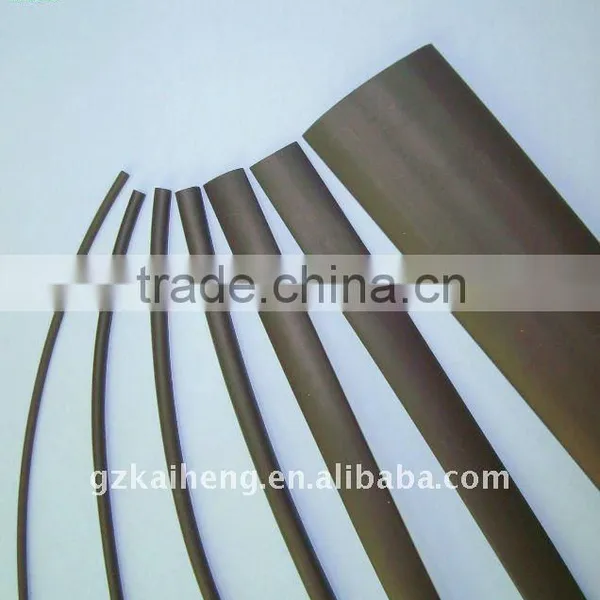

Product sizes
·Inch size
|
Size (inch) |
As supplied(mm) |
After recovery(mm) |
Standard length (m/spool) |
||
Inside diameter |
Wall thickness (nominal) |
Inside diameter (max.) |
Wall thickness (min.) |
||
3/64 |
1.4±0.2 |
0.10 |
0.6 |
0.20 |
200 |
1/16 |
1.9±0.2 |
0.10 |
0.8 |
0.20 |
200 |
3/32 |
2.8±0.3 |
0.15 |
1.2 |
0.25 |
200 |
1/8 |
3.5±0.3 |
0.15 |
1.6 |
0.25 |
200 |
3/16 |
5.5±0.3 |
0.15 |
2.4 |
0.25 |
100 |
1/4 |
6.5±0.3 |
0.15 |
3.2 |
0.28 |
100 |
3/8 |
10.6±0.4 |
0.15 |
4.8 |
0.28 |
200 |
1/2 |
13.6±0.4 |
0.20 |
6.4 |
0.28 |
200 |
3/4 |
21.0±1.0 |
0.25 |
9.5 |
0.35 |
100 |
1 |
26.0±1.0 |
0.25 |
12.7 |
0.40 |
100 |
·Metric size
|
Size (mm) |
As supplied(mm) |
After recovery(mm) |
Standard length (m/spool) |
||
Inside diameter |
Wall thickness |
Inside diameter (max.) |
Wall thickness (min.) |
||
φ1.0 |
1.4±0.2 |
0.10±0.03 |
0.65 |
0.20 |
200 |
φ1.5 |
1.9±0.2 |
0.10±0.03 |
0.75 |
0.20 |
200 |
φ2.0 |
2.4±0.2 |
0.12±0.03 |
1.00 |
0.20 |
200 |
φ2.5 |
2.8±0.3 |
0.13±0.05 |
1.25 |
0.25 |
200 |
φ3.0 |
3.4±0.3 |
0.13±0.05 |
1.50 |
0.25 |
200 |
φ3.5 |
3.9±0.3 |
0.13±0.05 |
1.75 |
0.25 |
200 |
φ4.0 |
4.4±0.3 |
0.15±0.05 |
2.00 |
0.25 |
200 |
φ5.0 |
5.5±0.3 |
0.15±0.05 |
2.50 |
0.25 |
100 |
φ6.0 |
6.5±0.3 |
0.15±0.05 |
3.00 |
0.28 |
100 |
φ7.0 |
7.5±0.3 |
0.15±0.05 |
3.50 |
0.28 |
200 |
φ8.0 |
8.6±0.4 |
0.15±0.05 |
4.00 |
0.28 |
200 |
φ9.0 |
9.6±0.4 |
0.15±0.05 |
4.50 |
0.28 |
200 |
φ10.0 |
10.6±0.4 |
0.15±0.05 |
5.00 |
0.28 |
200 |
φ11.0 |
11.6±0.4 |
0.18±0.05 |
5.50 |
0.28 |
200 |
φ12.0 |
12.6±0.4 |
0.20±0.05 |
6.00 |
0.28 |
200 |
φ13.0 |
13.6±0.4 |
0.20±0.05 |
6.50 |
0.30 |
200 |
φ14.0 |
14.6±0.4 |
0.20±0.05 |
7.00 |
0.30 |
200 |
φ15.0 |
15.6±0.5 |
0.20±0.05 |
7.50 |
0.32 |
200 |
φ16.0 |
16.6±0.5 |
0.20±0.05 |
8.00 |
0.36 |
200 |
φ18.0 |
18.6±0.5 |
0.22±0.05 |
9.00 |
0.36 |
200 |
φ20.0 |
21.0±1.0 |
0.25±0.05 |
10.0 |
0.36 |
100 |
φ22.0 |
23.0±1.0 |
0.25±0.05 |
11.0 |
0.40 |
100 |
φ25.0 |
26.0±1.0 |
0.25±0.05 |
12.5 |
0.40 |
100 |

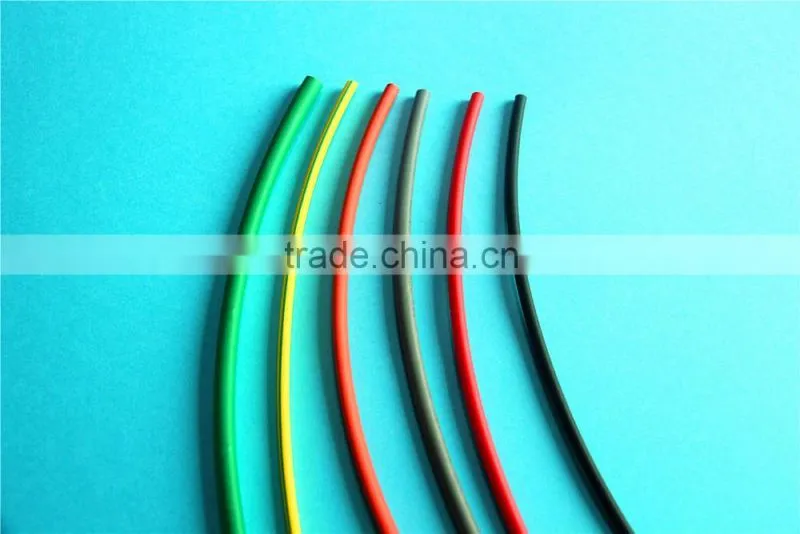

Color
Standard: Black (-BK), white (-WH), red (-RD), blue (-BL), yellow (-YL), green (-GR)
Nonstandard: Available upon request.
Nonstandard size
Special sizes are available upon request.
Standard packaging
On spools. Cut pieces are available upon request.
Ordering description
Specify product type, size (mm or inch) and color.
Guangzhou Kaiheng K&S Co., ltdis a major supplier of heat shrinkable tubing offering good-quality products at competitive price. We manufacture and distribute a broad range of heat shrinkable tubings, PVC tubings.Trademarked as KOSOO. Our products meet international standards such as UL, CSA and Milspec as well as international environmental demands.the company is certified to ISO 9001:2000 quality system. The products are widely used in automotive, electronics, telecommunications, appliance and various industries.
