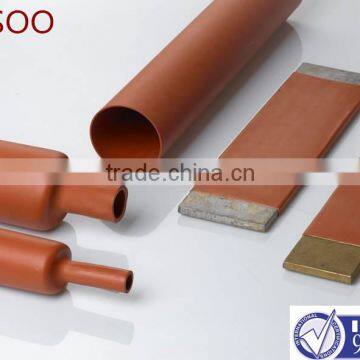

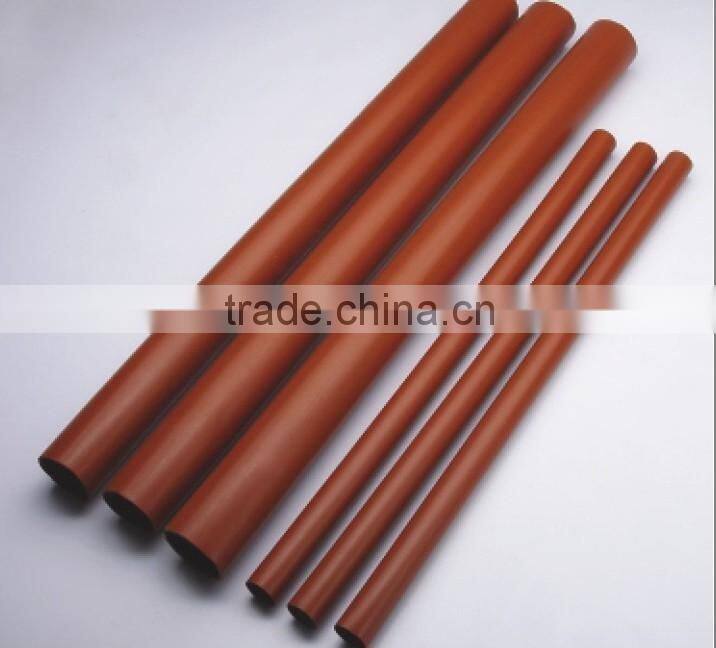

KOSOO KHBB Heat shrinkable Busbar insulation tube
Features/Benefits
Avoid short circuit fault caused by small animals such as mice,snakes and so on
·Prevent busbar from chemical corrosion effected by strong acid,alkali,salt,etc.
·Avoid accidental injury to overhaul persons when they enter electriferous clearance by mistake.
·It provides excellent insulation performance to supply required flashover protection for the busbar system,
·Voltage class:1KV,10KV,35KV

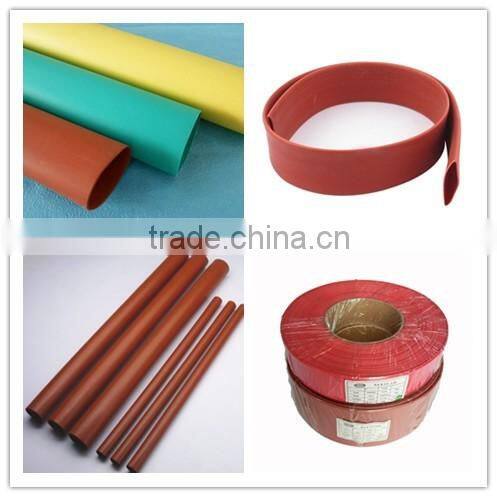

·Available colors:Red Yellow,Green,Black
Product sizes
·MM size(1KV)
Size |
|
As supplied(mm) |
After recovery (mm) |

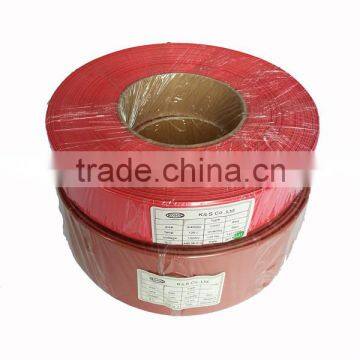

Standard length (m/spool) |
Busbar width(MM) |
Inner Diameter(wall thickness) |
Max.Inner Diameter(wall thickness) |
||
1KV KHBB30 |
30 |
31.5±1.0(0.45±0.15) |
15(0.95±0.15) |
50 |
1KV KHBB35 |
40 |
37.0±1.5(0.50±0.15) |
16(1.0±0.15) |
50 |
1KV KHBB40 |
40 |
40.5±1.5(0.50±0.15) |
20(1.0±0.15) |
50 |
1KV KHBB50 |
50 |
50.5±2.0(0.50±0.15) |
25(1.0±0.15) |
25 |
1KV KHBB60 |
60 |
60±3.0(0.80±0.2) |
30(1.3±0.2) |
25 |
1KV KHBB70 |
80 |
70±3.0(0.80±0.2) |
32(1.5±0.2) |
25 |
1KV KHBB80 |
80/100 |
80±3.0(0.80±0.3) |
40(1.5±0.3) |
25 |
1KV KHBB90 |
100 |
90±4.0(0.80±0.3) |
43(1.5±0.3) |
25 |
1KV KHBB100 |
100/120 |
100±4.0(0.80±0.3) |
50(1.5±0.3) |
25 |
1KV KHBB120 1112101KHBB1001KV KHBB1001KV KHBB10011KV KHBB100 |
150(1.000) |
120±4.0(0.80±0.3) |
60(1.5±0.3) |
25 |
1KV KHBB150 |
180 |
150±4.0(0.80±0.3) |
75(1.5±0.3) |
25 |
·MM size(10KV)
Size |
|
As supplied(mm) |
After recovery (mm) |
Standard length (m/spool) |
Busbar width(MM) |
Inner Diameter(wall thickness) |
Max.Inner Diameter(wall thickness) |
||
10KV KHBB20 |
20 |
20±0.8(1.0±0.2) |
9(2.5±0.2) |
|
10KV KHBB30 |
30 |
30±0.8(1.0±0.2) |
13(2.5±0.2) |
|
10KV KHBB40 |
40 |
40±1.0(1.2±0.2) |
15(2.5±0.2) |
|
10KV KHBB50 |
50 |
50±2.0(1.2±0.2) |
20(2.5±0.2) |
|
10KV KHBB60/65 |
60 |
65±3.0(1.2±0.2) |
24(2.8±0.2) |
|
10KV KHBB80 |
80/100 |
80±3.0(1.2±0.3) |
32(2.8±0.3) |
|
10KV KHBB100 |
100/120 |
100±4.0(1.2±0.3) |
40(2.8±0.3) |
|
10KV KHBB120 |
150 |
120±4.0(1.2±0.3) |
48(2.8±0.3) |
|
10KV KHBB150 |
200 |
150±4.0(1.2±0.3) |
60(2.8±0.3) |
|
10KV KHBB180 1112101KHBB1001KV KHBB1001KV KHBB10011KV KHBB100 |
MAX |
180±5.0(1.2±0.3) |
70(2.8±0.3) |
|
10KV KHBB210 |
MAX |
210±5.0(1.2±0.3) |
80(2.8±0.3) |
|
10KV KHBB240 |
MAX |
240±5.0(1.2±0.3) |
90(3.8±0.3) |
|
10KV KHBB300 |
MAX |
300±5.0(1.2±0.3) |
100(3.8±0.3) |
|
·MM size(35KV)
Size |
|
As supplied(mm) |
After recovery (mm) |
Standard length (m/spool) |
Busbar width(MM) |
Inner Diameter(wall thickness) |
Max.Inner Diameter(wall thickness) |
||
35KV KHBB30 |
30 |
30±1.0(2.0±0.3) |
13(4.0±0.3) |
|
35KV KHBB40 |
40 |
40±1.0(2.0±0.3) |
15(4.0±0.3) |
|
35KV KHBB50 |
50 |
50±2.0(2.2±0.3) |
20(4.5±0.3) |
|
35KV KHBB60/65 |
60 |
65±2.0(2.2±0.3) |
24(4.5±0.3) |
|
35KV KHBB80 |
80/100 |
80±3.0(2.2±0.3) |
32(4.5±0.3) |
|
35KV KHBB100 |
100/120 |
100±4.0(2.5±0.3) |
40(4.5±0.3) |
|
35KV KHBB120 |
150 |
120±4.0(2.5±0.3) |
48(5.0±0.3) |
|
35KV KHBB150 |
200 |
150±4.0(2.5±0.3) |
60(5.0±0.3) |
|
35KV KHBB180 |
MAX |
180±5.0(2.5±0.3) |
70(5.5±0.3) |
|
35KV KHBB210 1112101KHBB1001KV KHBB1001KV KHBB10011KV KHBB100 |
MAX |
210±5.0(2.5±0.3) |
80(5.5±0.3) |
|
