Polyolefin halogen free heat shrinkable tubing
Application:
KOSOO K-2(HF) is halogen free, low smoking, flame-retardant irradiated crosslinking polyolefin heat-shrinkable tubing suitable for environmentally friendly application. It contains no added halogens, and exhibits excellent fire safety characteristics combined with low evolution of acid gases, while retaining good mechanical and fluid resistance properties.
Features:
1) Shrink ratio: 2:1.
2)Flexible, flame-retardant.
3)Low smoking, no added halogens.
4)Low evolution of acid gases.
5)Free of PCBs, PCPs, polybrominated biphenyls (PBBs), polybrominated biphenyl oxides and ethers (PBBOs, PBBEs and PBDEs) and toxic heavy metal compounds, which are classified as environmentally hazardous substances. Conform to European RoHS environmental directive.
Operating temperature range:
a) Operating temperature range: -55 ℃~ 125°C
b) Minimum shrink temperature: 70°C
c) Minimum full recovery temperature: 110℃
Standards and approvals:
UL224 E214175 125℃ 600V VW-1
Size |
Inside diameter |
Wall thickness |
Standard length (m/spool) |
|
As supplied(min.) |
After recovery(max.) |
After recovery |
||
3/64 |
1.2(0.046) |
0.6(0.023) |
0.40±0.08(0.016±0.003) |
200 |
1/16 |
1.6(0.063) |
0.8(0.031) |
0.43±0.08(0.017±0.003) |
200 |
3/32 |
2.4(0.093) |
1.2(0.046) |
0.51±0.08(0.020±0.003) |
200 |
1/8 |
3.2(0.125) |
1.6(0.062) |
0.51±0.08(0.020±0.003) |
200 |
3/16 |
4.8(0.187) |
2.4(0.093) |
0.51±0.08(0.020±0.003) |
100 |
1/4 |
6.4(0.250) |
3.2(0.125) |
0.64±0.08(0.025±0.003) |
100 |
3/8 |
9.5(0.375) |
4.8(0.187) |
0.64±0.08(0.025±0.003) |
100 |
1/2 |
12.7(0.500) |
6.4(0.250) |
0.64±0.08(0.025±0.003) |
100 |
3/4 |
19.1(0.750) |
9.5(0.375) |
0.76±0.08(0.030±0.003) |
50 |
1 |
25.4(1.000) |
12.7(0.500) |
0.89±0.12(0.035±0.005) |
50 |
1 1/4 |
31.8(1.250) |
15.9(0.625) |
1.02±0.15(0.040±0.006) |
50 |
1 1/2 |
38.1(1.500) |
19.1(0.750) |
1.02±0.15(0.040±0.006) |
50 |
2 |
50.8(2.000) |
25.4(1.000) |
1.14±0.16(0.045±0.007) |
50 |

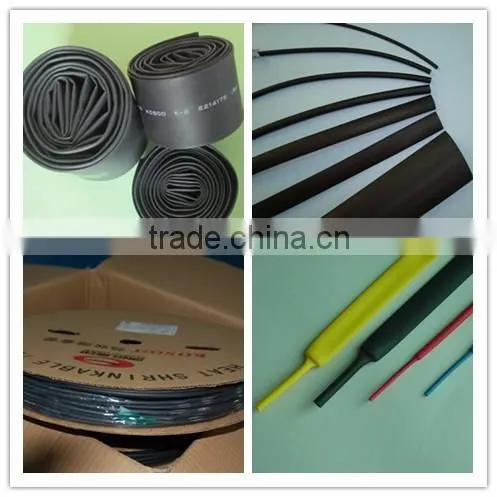

Packages
Company information:
Guangzhou Kaiheng Enterprise Group Co.,Ltd was founded in 1998,and Guangzhou Kaiheng K&S Co.,Ltd is an affiliated company of the group,we are a very professional manfuacturer of PVC tube, heat shrinkable tube including medium wall&heavy wall heat shrinkable tube,Dual &single heat shrinkable tuble,Busbar,Telflon heat shrinkable tube,and wire accessoies for 17 years.And we have over 10 years of exporting experience to overseas makerts.
Related products:Heat shrink tube,cable marker,PVC tube and wire accessories
