Help CenterM80‑5000000M1‑08‑331‑00‑000 HARWIN Connector, Vertical Through‑Board, 4.0mm Pitch, Internal‑Thread Jackscrew Lock, Datamate‑Power Series
Product Spotlights
2. 8 single‑row power contacts, 4.0mm pitch, max. 20A current rating per‑contact for multi‑channel high‑power transmission
3. Internal‑thread jack‑screw locking system, anti‑vibration, prevent accidental disconnection and power‑loss
4. Vertical through‑hole mounting, 3.5 mm‑long PCB tails for firm soldering on circuit‑board
Related Products
-
M80‑400000000‑06‑321‑00‑000, 6‑Pin SIL Female Connector 4.0mmNegotiableMOQ: 5 Units -
Harwin M80‑5L10406M6‑04‑33‑00‑00 Datamate‑Mix‑Tek Signal+Power Mixed‑Layout High‑Reliability Connector, Jack‑Screw Locking, Gold‑Plated ContactsNegotiableMOQ: 5 Units
-
Harwin M80-4002606 6‑Pos Vertical Female Power Receptacle, 4.0 mm PitchNegotiableMOQ: 5 Units
-
HARWIN M80‑5400605 Board‑to‑Board Connector, 6Pin, 2.0mm Pitch, Single‑Row Female Receptacle, Through‑hole Straight MountNegotiableMOQ: 5 Units
-
Harwin M80‑4C10405F2‑04‑325‑00‑000 Datamate Mix‑Tek 4+4 Position Female Cable Connector KitNegotiableMOQ: 5 Units
Product Overview
M80‑5000000M1‑08‑331‑00‑000 is an original HARWIN Datamate‑Power vertical through‑board male‑header power connector. It is equipped with 8 single‑row full‑power contacts at 4.0 mm pitch, fitted with internal‑thread floating jack‑screws. 3.5‑mm‑long PCB tails for vertical through‑hole soldering. Designed for multi‑channel high‑current power supply under severe vibration‑shock conditions, this connector is widely deployed in industrial power, railway, medical, telecom, defense‑aerospace high‑reliability power projects.
Key Features
‑ Multi‑channel high‑power supply: 8 independent power contacts, max. 20A per‑contact for multi‑loop high‑current transmission ‑ Internal‑thread jack‑screw locking design, anti‑vibration, prevent unexpected power‑off ‑ Vertical through‑hole mounting, 3.5 mm long PCB tails, firm solder joint with high pull‑resistance ‑ Gold‑plated beryllium‑copper contacts, low‑contact resistance, anti‑oxidation, 500 mating cycles ‑ Glass‑filled PPS housing, UL94‑V‑0 flame‑retardant,‑55℃ ~ +125℃ wide industrial temperature range ‑ Matching cable‑mount female receptacle available for one‑stop‑procurement

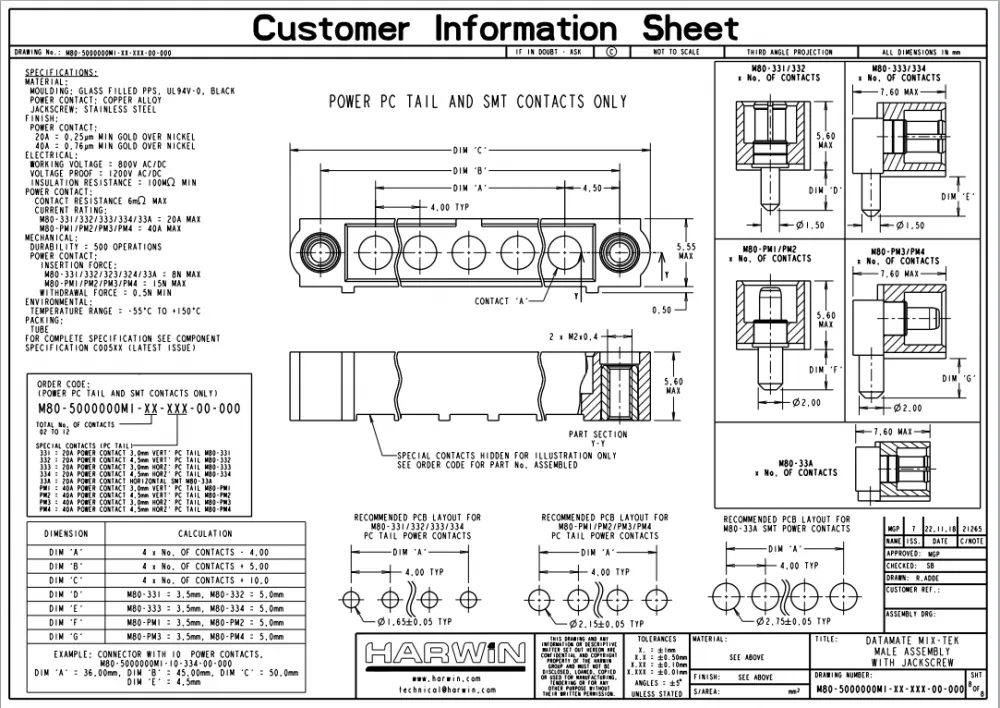

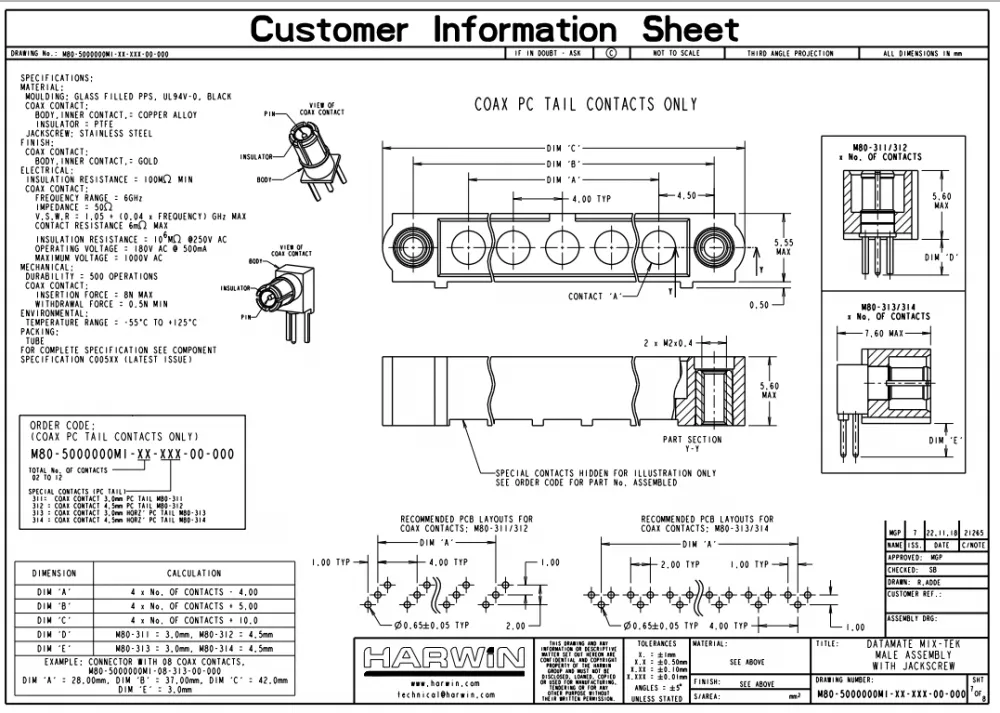

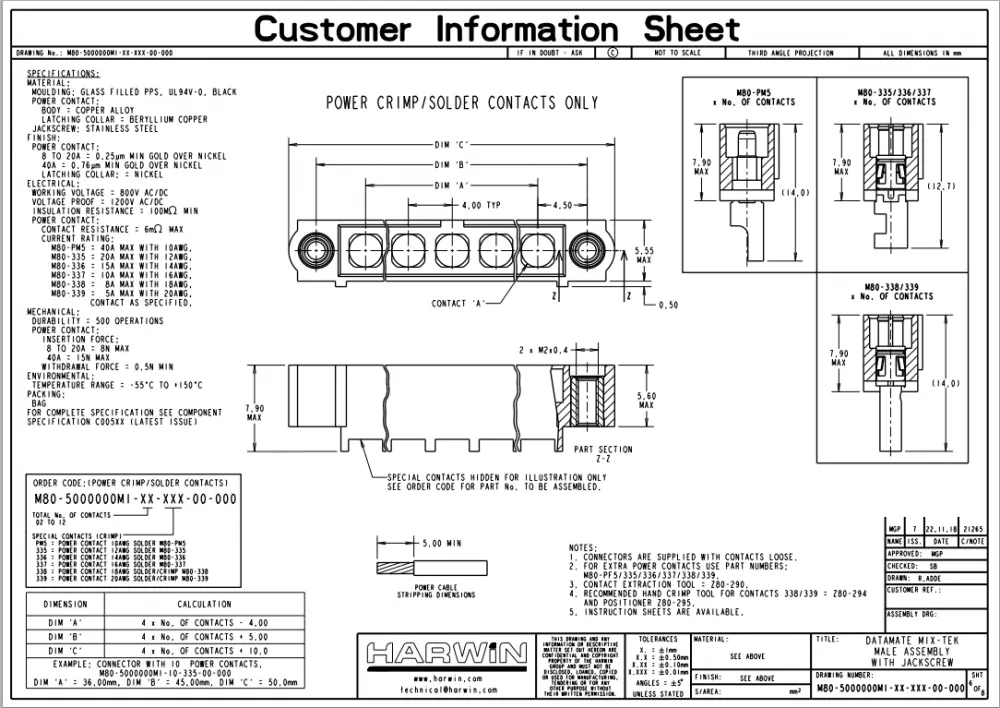

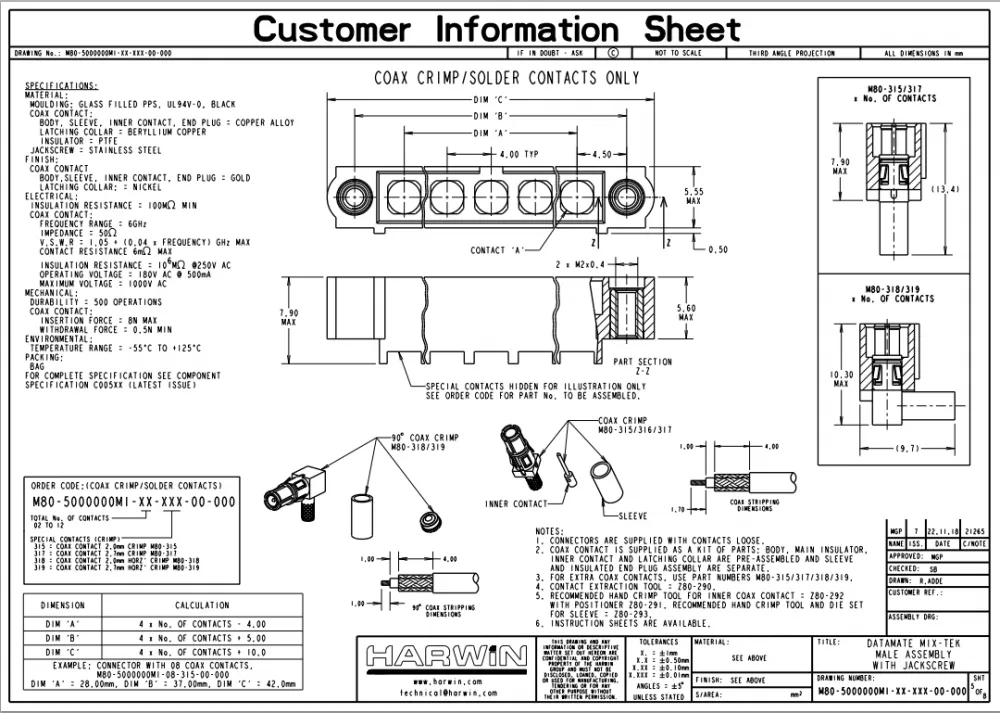

Specifications
Manufacturer: HARWIN PN: M80‑5000000M1‑08‑331‑00‑000 Series: Datamate‑Power / Mix‑Tek Connector Type: Male Header Number of Positions: 8 Power Contacts Pitch: 4.00 mm Mounting Style: Vertical Through‑Board PCB‑Tail Length: 3.5 mm Locking: Internal‑Thread Floating Jackscrew Current Rating: Max. 20A per contact Contact Plating: Gold Contact Base Material: Beryllium Copper Housing Material: Glass‑filled PPS Flammability: UL94‑V‑0 Operating Temp:‑55℃ ~ +125℃ Mating Cycles: 500 RoHS: Lead‑Free Compliant
Applications
Industrial‑Control Power Module, Railway & On‑board Equipment, Medical Instrument, Telecom Base‑Station, Defense & Aerospace, Industrial‑Robot & Automation‑System
