Basic Information
Manufacturer: Harwin
Part Number: M80‑400000000‑06‑321‑00‑000

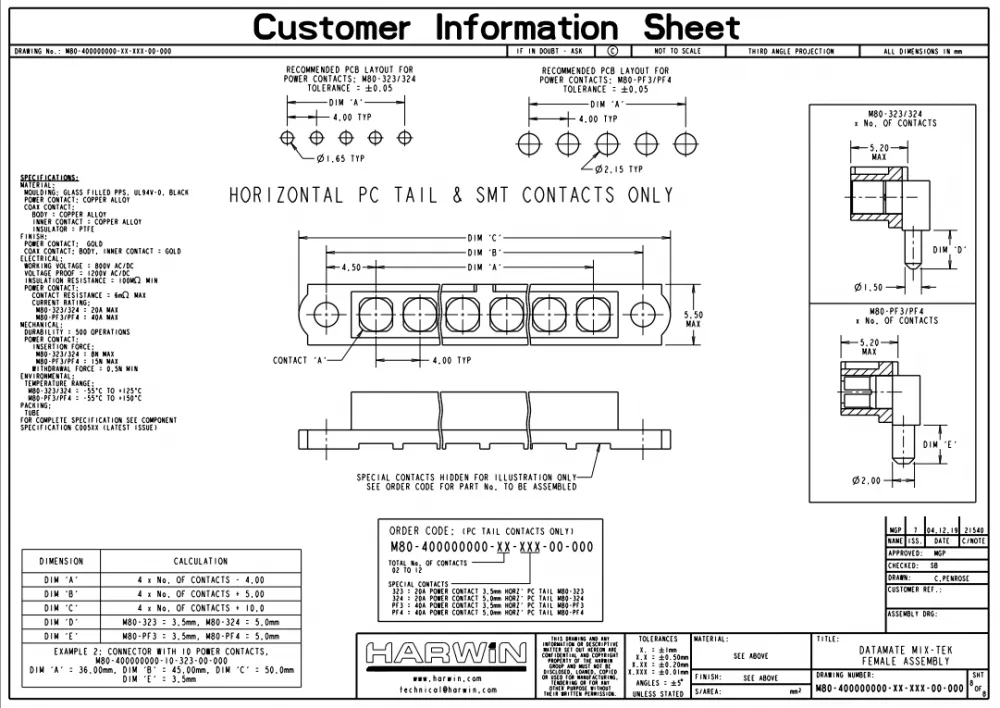

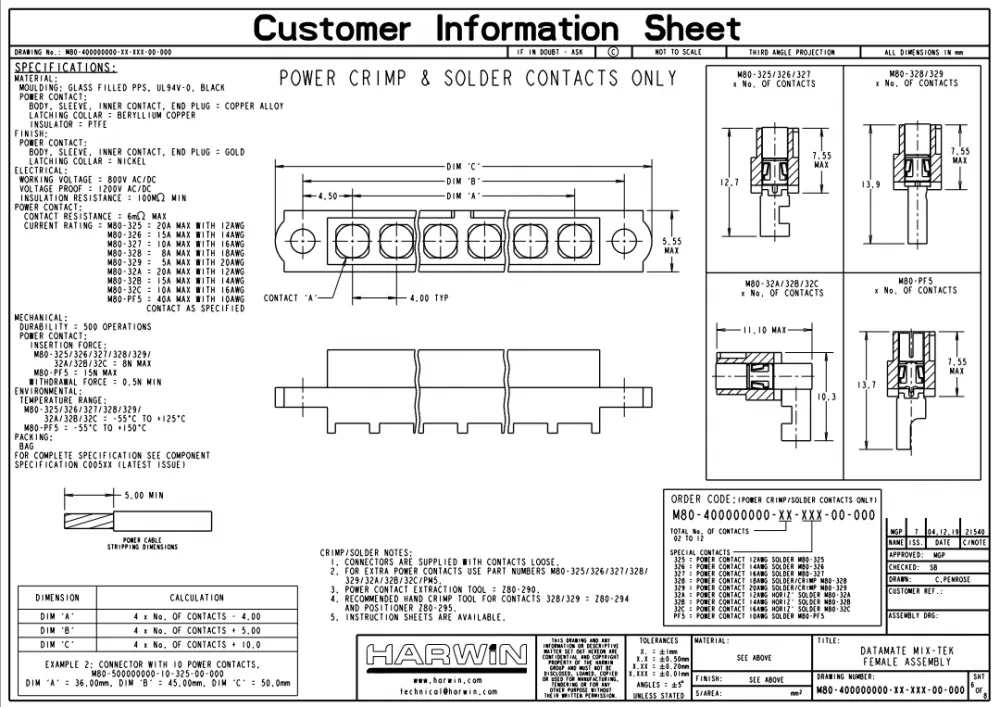

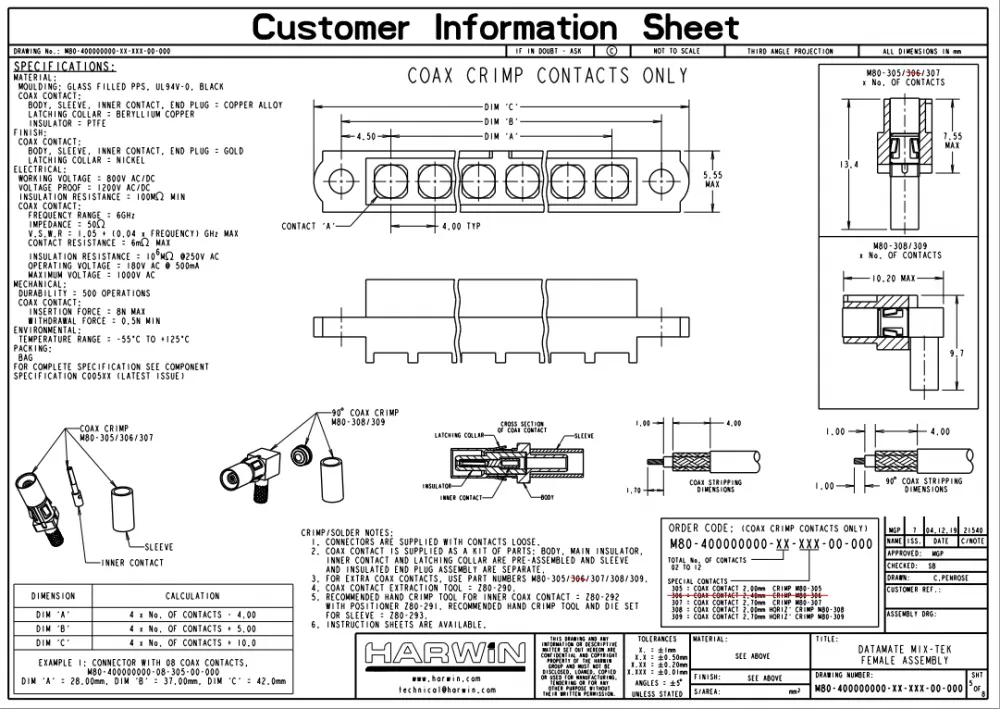

Series: Datamate Mix‑Tek (Datamate‑Power) High‑Reliability Power ConnectorHarwin

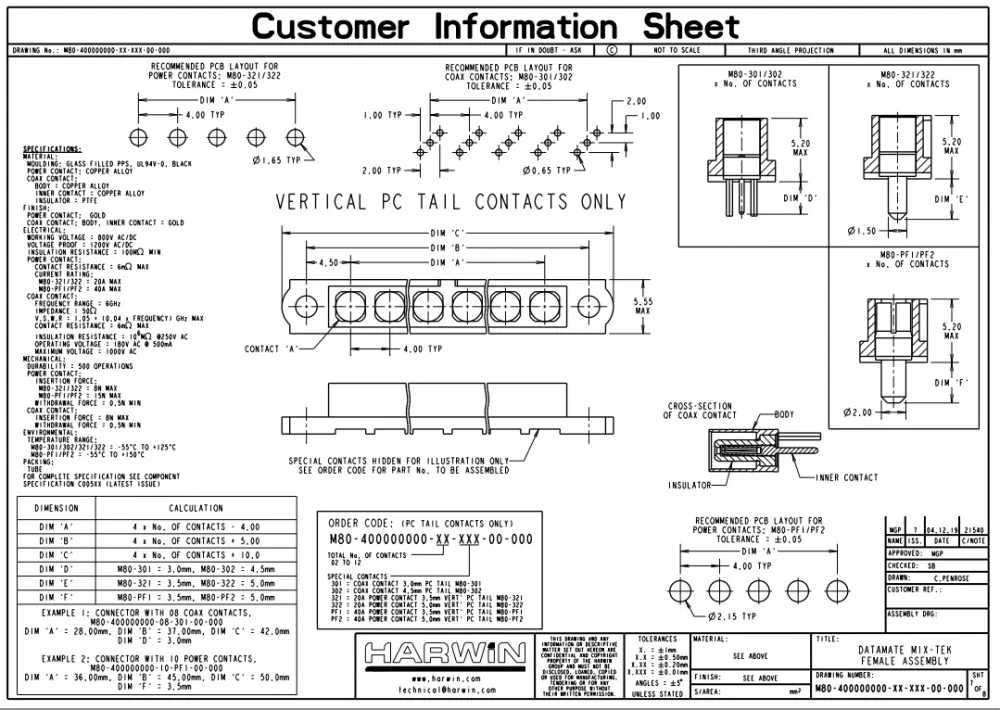

Product Type: Straight Vertical PCB‑Mount Female Receptacle (Board‑side, Through‑Hole / THT)
Contact Configuration: 6‑pin, Single‑In‑Line (SIL), one‑row layout
Pitch: 4.0 mm
PCB Tail Length: 3.5 mm standard through‑board tailsHarwin
Locking Feature: Jack‑screw‑compatible housing, locking screws not includedHarwin
Housing Color: Black
Housing Material: Glass‑filled high‑temperature PPS plastic
Flammability Rating: UL94V‑0
Contact Type: M80‑321 machined power female contacts
Electrical Specifications
Rated Current: 20 A maximum per‑contactHarwin
Contact Plating: Full gold‑plated finish on mating zone and PCB solder‑termination tails, contact resistance ≤ 6 mΩ
Rated Voltage: 800 V AC / DC
Withstand Proof Voltage: 1200 V AC / DC
Insulation Resistance: ≥ 1000 MΩ @ 500 V DC
Mechanical & Environmental Performance
Contact Material: Beryllium‑copper female power contacts
Lock‑up Feature: Pre‑drilled jack‑screw mounting holes allow separate installation of locking screws. Thread‑locking hardware firmly secures the mated cable‑side plug and prevents accidental disconnection under vibration and shock loads.
Polarization Feature: Built‑in polarization anti‑mis‑insertion key avoids reverse‑mating‑induced power‑short‑circuit and costly equipment damageHarwin.
Mating‑Unmating Cycles: Up to 500 reliable operations
Vibration & Shock Resistance: Passed strict high‑reliability industrial vibration‑shock test specification BS9525‑F0033
Operating Temperature: ‑55 ℃ ~ +125 ℃ wide temperature‑range operationHarwin
Maximum Soldering Temperature: 260 ℃, 10 seconds peak durationHarwin
Packaging
Supplied in tube packaging suitable for automated wave‑soldering mass‑production.
Compliance
RoHS Compliant (2015/863/EU) with Exemption 6cHarwin
REACH Compliant, SVHC‑free
Key Advantages
Original Harwin heavy‑duty female power receptacle from Datamate Mix‑Tek series, engineered for zero‑failure power‑supply connections in harsh industrial and vibration‑prone equipment.
Spacious 4.0 mm single‑row layout delivers ample heat‑dissipation clearance when six independent 20‑A power‑channels operate simultaneously.
Straight vertical through‑hole mounting with 3.5 mm standard PCB tails creates stable solder anchorage, delivering excellent pull‑out resistance and mechanical stability on the circuit‑board.
Jack‑screw‑ready housing provides flexible locking options. Users can add locking screws on‑demand for high‑vibration applications or use without screws for standard‑vibration environments.
Gold‑plated beryllium‑copper power contacts maintain stable high‑current transmission, with excellent anti‑oxidation and anti‑corrosion performance even in humid, dusty or temperature‑fluctuating surroundings.
High‑temperature flame‑retardant glass‑filled PPS housing guarantees long‑term safety and reliable electrical insulation under extreme‑temperature working‑conditions. Polarised housing greatly reduces assembly‑error risk during production wiring.
Typical Applications
Industrial control‑equipment power interfaces, robot internal high‑power wiring, railway onboard‑electronic control systems, unmanned‑equipment board‑to‑cable power‑signal interconnection, photovoltaic‑inverter control‑unit power connections, test‑and‑measurement instruments, medical‑device power interconnection, communication‑equipment internal high‑power power‑supply circuits.
